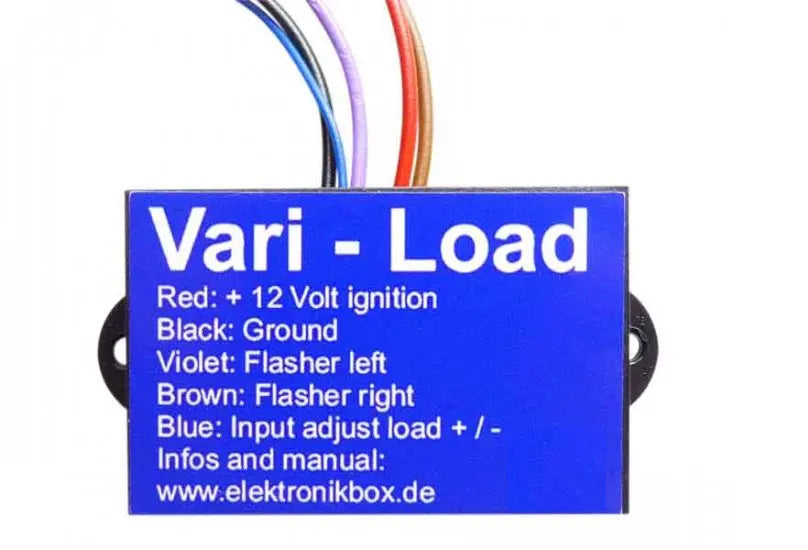

Axel Joost Elektronik Vari Load Digital Load Equalizer

The Axel Joost Elektronik Vari Load is a programmable load equalizer, enabling the use of LED flashers on any motorcycle. This digital loadequalizer offers precise power adjustment and easy installation, making it a valuable addition to your bike's lighting system.

Description

This loadequalizer allows seamless integration of LED flashers into your motorcycle's electrical system. Adjust the power output using the integrated blue wire. Applying +12 volts to the blue wire gradually increases the load in 50 steps, up to approximately 10 watts. Grounding the blue wire decreases the load until it reaches 0 watts. Once the desired load is set, disconnecting the wire saves the value for future use. A full cycle through the power range takes approximately 20 seconds. The integrated LED indicator flashes up to 50 times when the power value changes, providing a visual cue of the set value. The LED lights up continuously when either the 0-watt or 10-watt limit is reached. This user-friendly design ensures optimal performance and compatibility with a wide range of LED flashers. The housing is made from durable ABS material. The digital loadequalizer supports an input voltage range of 7 - 18 Volts.

Features & highlights

• Programmable load equalization for seamless LED flasher integration.
• Precise power adjustment using the blue wire (0 to approximately 10 watts).
• Integrated LED indicator for visual feedback during power adjustment.
• Memory function saves the set load value for future use.
• Durable ABS construction for long-lasting reliability.
• Wide input voltage range (7 - 18 Volts) for broad compatibility.

Technical specifications

• Brand: Axel Joost Elektronik
• MPN: 21201438
• Type: Digital Loadequalizer
• Body Material: ABS
• Input Voltage Range: 7 - 18 Volts
• Output Power Range: Between 2 x 1 Watt and 2 x 15 Watt
• Maximum Ambient Temperature: 80 degree Celsius
• Connections Input: 0.14 mm²
• Connections Output: 0.75 qmm
• Dimensions: 56 mm x 37 mm x 17 mm

Important to know

No additional items are required for installation.
