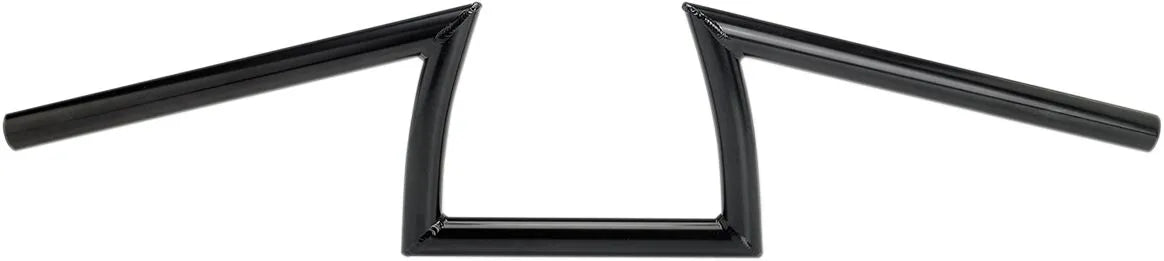

Biltwell Keystone Handlebar - 1" - 2" Rise - Gloss Black - 6001-2016

Upgrade your motorcycle with the Biltwell 1" Handlebar, designed for custom applications and crafted from high-quality materials. This handlebar combines durability, style, and performance, ensuring a comfortable and confident ride.

Description

The Biltwell 1" Handlebar is constructed from seamless 4130 chromoly tubing with a 0.120" (3 mm) wall thickness, providing exceptional strength and resilience. All bends are meticulously formed using internal mandrels on a CNC bender, minimizing flat spots and maintaining consistent geometry. The precision-mitered and TIG-welded joints ensure superior structural integrity and a clean, professional finish. Finished in a gloss black, this handlebar adds a sleek, custom look to any motorcycle. With a 25.4 mm (1") clamping diameter and controls diameter, and dimensions including a 5" height, 2" end rise, and 2-1/4" pullback/sweep, this Biltwell handlebar enhances both the aesthetics and handling of your ride. Ideal for aftermarket and custom motorcycle builds, this 1 inch handlebar offers a blend of classic style and modern manufacturing techniques.

Features & highlights

• Constructed from high-strength 4130 chromoly steel for maximum durability.
• CNC-bent with internal mandrels to eliminate flat spots and ensure smooth curves.
• Precision-mitered and TIG-welded joints offer superior strength and clean aesthetics.
• Gloss black finish provides a stylish and durable coating.
• Designed for aftermarket and custom motorcycle applications.
• Slotted for cable throttle application.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Keystones
• Material: Chromoly
• Handlebar Diameter: 1" (25.4 mm)
• Clamping Diameter: 1" (25.4 mm)
• Controls Diameter: 1" (25.4 mm)
• Finish: Gloss
• Color: Black
• Width: 28-1/2" (72.5 cm)
• Height: 5" (12.5 cm)
• End Rise: 2" (50.8 mm)
• Rise: 2" (50.8 mm)
• Pullback/Sweep: 2-1/4" (57.2 mm)
• Center Width: 6-1/2" (16.5 cm)
• Features: Slotted, Cable Throttle Application, Smooth, Unknurled

Important to know

This handlebar is designed for aftermarket and custom applications. It is not notched for Throttle-By-Wire (TBW) applications.
