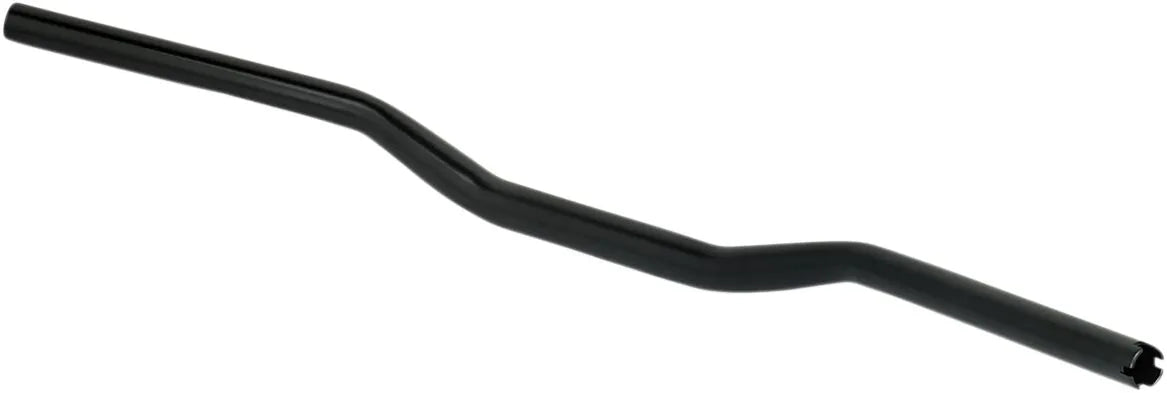

Biltwell Tracker O/S Bar - 1-1/8" - 2-1/4" Rise - Black - 6307-2015

Upgrade your motorcycle with the Biltwell Tracker O/S Handlebar, engineered for superior strength and performance. This handlebar combines classic styling with modern manufacturing techniques, offering a comfortable and aggressive riding position.

Description

Crafted from high-quality 4130 chromoly steel, the Biltwell Tracker O/S Handlebar ensures exceptional durability and resistance to bending or breaking. The 1-1/8" clamping diameter provides a secure and robust connection to your motorcycle's risers. All bends are meticulously formed using CNC mandrel bending, which minimizes flat spots and maintains consistent wall thickness throughout the bends. The welded joints are precision mitered and TIG welded, delivering clean, strong, and visually appealing seams. The Tracker O/S Handlebar features a black finish for a sleek, custom look. With a 2-1/4" rise and 2-1/2" pullback, this handlebar offers enhanced control and rider comfort. Its 30-1/2" width provides ample leverage and stability. The handlebar is also notched for Throttle-By-Wire systems, ensuring compatibility with modern motorcycles.

Features & highlights

• Constructed from seamless 4130 chromoly tubing for superior strength.
• CNC mandrel bends minimize flat spots and ensure consistent wall thickness.
• Precision mitered and TIG welded joints provide clean and strong seams.
• Notched for Throttle-By-Wire (TBW) systems, offering compatibility with modern bikes.
• Provides an aggressive and comfortable riding position.
• Features a durable black finish for a custom look.

Technical specifications

• Brand: Biltwell
• Product Name: Handlebar
• Type/Bend: Tracker O/S
• Material: Chromoly
• Handlebar Diameter: 1-1/8" (28.6 mm)
• Controls Diameter: 1" (25.4 mm)
• Clamping Diameter: 1-1/8" (28.6 mm)
• Width: 30-1/2" (77.5 cm)
• Rise: 2-1/4" (57.2 mm)
• End Rise: 1-3/4" (44.5 mm)
• Pullback/Sweep: 2-1/2" (63.5 mm)
• Center Width: 5" (12.5 cm)
• Features: Notched for Throttle-By-Wire, Smooth, Unknurled
• Color/Finish: Black

Important to know

• These handlebars will not mount to standard 1" clamps found on most stock and aftermarket risers.
• If grip sets aren't installed, bars will be approximately 1-1/8" shorter than listed.
