Dakota Digital Data Bus Breakout Interface

Simplify your aftermarket gauge installation with the Dakota Digital Data Bus Breakout Interface. This interface allows for easy installation of aftermarket speedometers and tachometers, providing a seamless connection to your motorcycle's data bus system.

Description

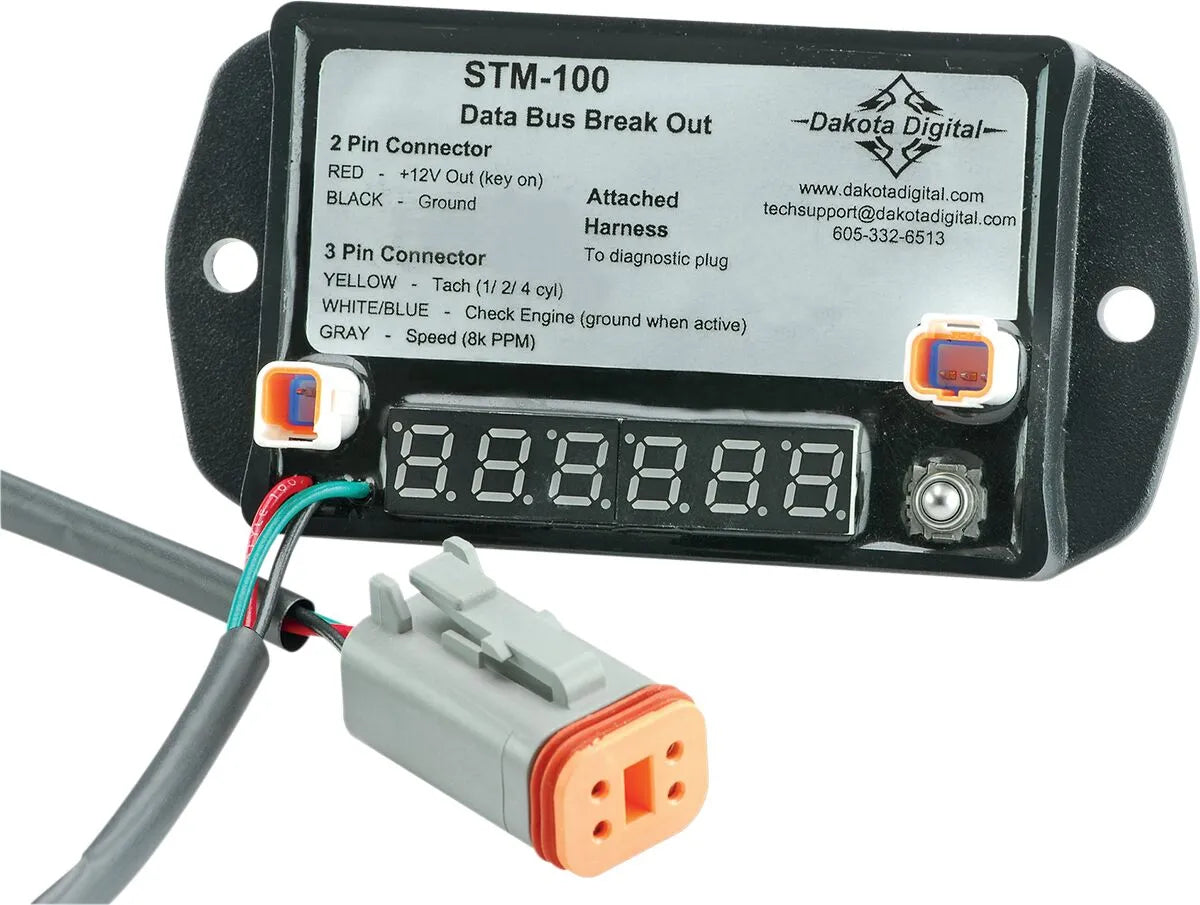

The Dakota Digital Data Bus Breakout Interface, also known as the Dakota Digital STM-100, plugs directly into your motorcycle's diagnostic port, tapping into the bike's data bus to output traditional analog signals. This eliminates the need for splicing into factory wiring, making the installation process quicker and cleaner. It provides reliable outputs for speedometer signals at 8000 ppm, a tachometer signal adjustable for 1, 2, or 4-cylinder engines, a check engine signal, accessory power, and ground. Enhance your diagnostic capabilities with the digital readout feature, which functions as a scan tool, enabling you to read and clear diagnostic codes effortlessly. This interface ensures compatibility and accurate readings for aftermarket gauges, enhancing your motorcycle's instrumentation setup.

Features & highlights

• Effortlessly install aftermarket speedometers and tachometers.
• Plugs directly into the motorcycle's diagnostic port for simple setup.
• Outputs traditional analog signals from the bike's data bus.
• Provides speedometer signal (8000 ppm) and adjustable tachometer signal (1, 2, or 4 cylinders).
• Includes check engine signal, accessory power, and ground outputs.
• Digital readout functions as a scan tool for reading and clearing diagnostic codes.
• Streamlines gauge installation and diagnostic processes.

Technical specifications

• Brand: Dakota Digital
• Product Name: Breakout Interface
• Vendor Part Number: STM-100
• Type: Data Bus

Important to know

Ensure your motorcycle's diagnostic port is compatible with the Dakota Digital Data Bus Breakout Interface before purchase. Professional installation is recommended for optimal performance.
