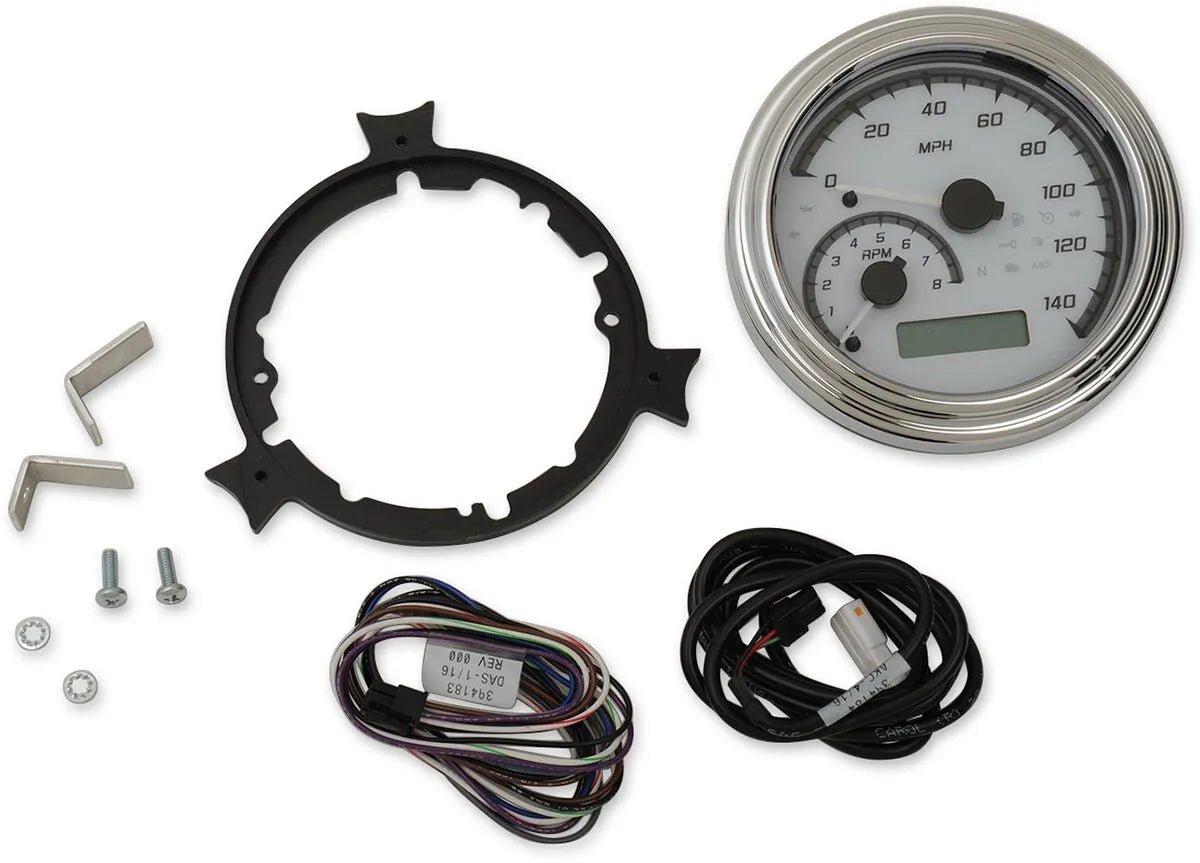

Dakota Digital MVX Analog Speedometer/Tachometer - mph - MVX-2004-WG-C

Upgrade your motorcycle's instrumentation with the Dakota Digital MVX Series Analog Gauge System. This all-in-one gauge provides essential readings and customizable displays, adding both style and functionality to your ride. The MVX series offers a sleek design and advanced features, making it a perfect choice for motorcycle enthusiasts and professionals alike.

Description

The Dakota Digital MVX Series combines a 140 mph speedometer, 8,000 rpm tachometer, odometer, and dual resettable trip meters into one stylish analog gauge. The system includes a full complement of indicator lights for turn signal, high beam, neutral, and low oil pressure. Models for '99-'03 feature seven user-selectable colors for the pointer, backlight, and LCD message center, while '11-'22 models boast 31 color options. Enhance your bike's performance monitoring with features like resettable miles to service, hour meter, clock function, and voltage readout with a low-voltage alert. The system also supports a cylinder head temperature sensor (if equipped), oil pressure sending unit (sold separately), and a seven-speed gear position indicator compatible with 3- to 7-speed transmissions. Additional capabilities include a security system indicator, automatic turn signal canceling compatibility, and a wait-to-start/check engine light function. You can also perform performance calculations such as 0-60 time, top speed, peak RPM recall, and quarter-mile time and speed. The gauge features a 4-1/4" case diameter and a 4-5/8" bezel diameter.

Features & highlights

• All-in-one analog gauge system with 140 mph speedometer and 8,000 rpm tachometer.
• User-selectable colors (7 for '99-'03, 31 for '11-'22 models) for customizable display.
• Includes odometer, dual trip meters, and essential indicator lights.
• Offers resettable miles to service, hour meter, clock, and voltage readout.
• Supports gear position indicator, security system indicator, and performance calculations.
• Features a durable design with a 4-1/4" case diameter.

Technical specifications

• Brand: Dakota Digital
• Product Name: Gauge
• Type: Analog Speedometer
• Calibration: 0 kph - 225 kph, 0 rpm - 8,000 rpm
• Face Color: White, Gray
• Housing Color: Chrome
• Outside Diameter: 5" (12.7 cm)
• Units: Kit
• Features: Backlit, Indicator Lights

Important to know

Wiring installation requires cut/splice; this is not a direct plug-in gauge. Oil pressure sending unit sold separately (part #s 2212-0513 or DS-250019). Cylinder head temperature sensor functionality requires bike equipped with factory sender unit.
