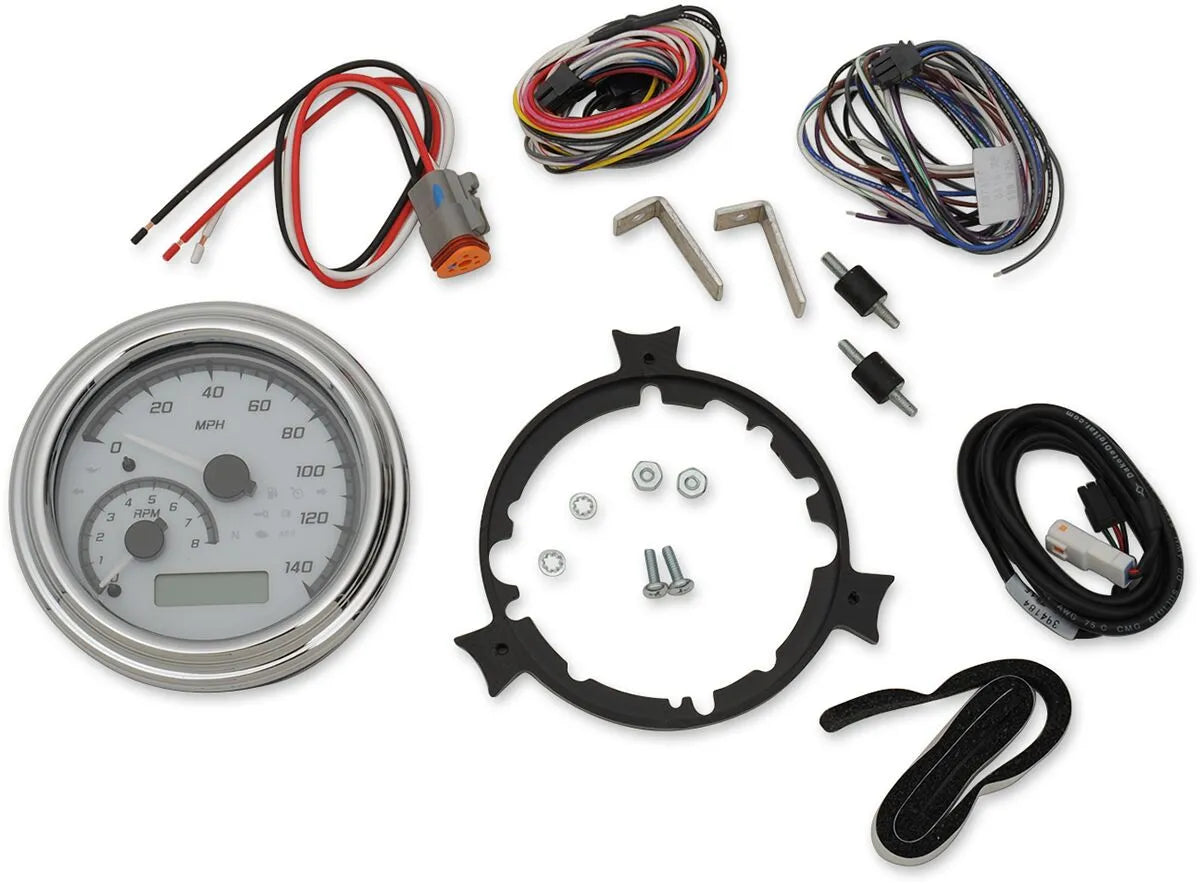

Dakota Digital MVX Analog Speedometer/Tachometer - mph - MVX-2002-WG-C

Upgrade your motorcycle's instrumentation with the Dakota Digital MVX Series Analog Gauge System. This all-in-one gauge provides vital information in a stylish and easy-to-read format, enhancing both the aesthetics and functionality of your ride. Perfect for enthusiasts looking for a blend of classic analog design and modern digital features.

Description

The Dakota Digital MVX Series analog gauge system combines a 140 mph speedometer, 8,000 rpm tachometer, odometer, and dual resettable trip meters into a single, sleek unit. It includes a comprehensive set of indicator lights for turn signal, high beam, neutral, and low oil pressure. For '99-'03 models, enjoy seven user-selectable colors for the pointer, backlight, and LCD message center (red, green, blue, teal, magenta, amber, or white). Newer '11-'22 models boast an impressive 31 user-selectable colors for the same customizable elements. The system also offers resettable miles to service with a user-settable warning countdown, an hour meter, a clock function, and a voltage readout with a low-voltage alert. A seven-speed gear position indicator, compatible with 3- to 7-speed transmissions, is included for enhanced awareness. Furthermore, the system can perform performance calculations such as 0-60 time, top speed, peak rpm recall, and 1/4 mile time and speed.

Features & highlights

• All-in-one analog gauge system with speedometer, tachometer, odometer, and trip meters.
• User-selectable colors for pointer, backlight, and LCD message center (7 colors for '99-'03 models, 31 colors for '11-'22 models).
• Integrated indicator lights for essential functions and alerts.
• Performance calculations including 0-60 time, top speed recall, and quarter-mile stats.
• Seven-speed gear position indicator compatible with various transmissions.
• Resettable service mileage countdown with warning and hour meter.
• Voltage readout with low-voltage alert to monitor electrical system health.

Technical specifications

• Brand: Dakota Digital
• Product Name: Gauge
• Type: Analog Speedometer
• Face Color: White, Gray
• Housing Color: Chrome
• Speedometer Calibration: 0 kph - 225 kph (0 mph - 140 mph)
• Tachometer Calibration: 0 rpm - 8,000 rpm
• Outside Diameter: 4-5/8" (11.8 cm)

Important to know

Installation requires cut/splice wiring; it is not a direct plug-in gauge. An oil pressure sending unit is required if the bike is not equipped with a factory sender unit and is sold separately (part #s 2212-0513 or DS-250019). Cylinder head temperature sensor requires factory sender unit.
