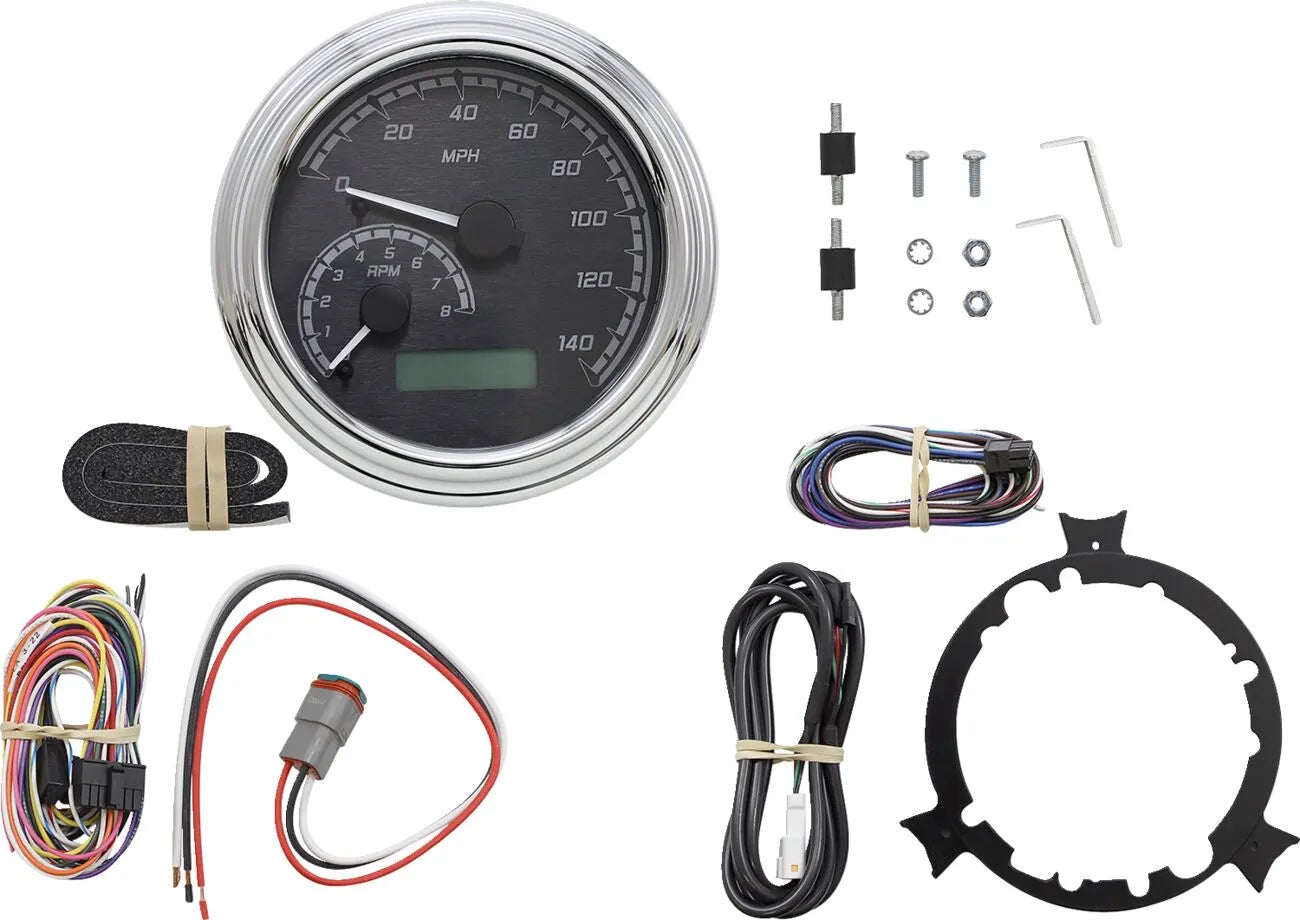

Dakota Digital MVX Analog Speedometer/Tachometer - mph - MVX-2002-KG-C

Upgrade your motorcycle's instrumentation with the Dakota Digital MVX Series Analog Gauge System. This all-in-one gauge combines classic analog styling with modern digital features, providing a comprehensive overview of your bike's vital statistics.

Description

The Dakota Digital MVX Series Analog Gauge System is more than just a speedometer; it's a complete instrument solution. The system features a 140 mph speedometer and an 8,000 rpm tachometer, ensuring accurate speed and engine readings. It includes an odometer, dual resettable trip meters, a clock function (12-hour format), and a voltage readout with low-voltage alert to keep you informed on every ride. The gear position indicator supports 3- to 7-speed transmissions, giving you accurate gear information. It also performs performance calculations such as 0-60 time, top speed recall, and quarter-mile time. For select models ('99-'03 and '11-'22), the system offers user-selectable colors for the pointer, backlight, and LCD message center, with up to 31 color options available on later models. The gauge's stylish design and comprehensive functionality make it a perfect addition to any motorcycle.

Features & highlights

• All-in-one analog gauge system with speedometer, tachometer, odometer, and more.
• User-selectable colors for customizable display (7 colors for '99-'03 models, 31 colors for '11-'22 models).
• 8,000 rpm tachometer with adjustable shift point and digital readout.
• Seven-speed gear position indicator compatible with 3- to 7-speed transmissions.
• Performs performance calculations: 0-60 time, top speed recall, and quarter-mile time.
• Includes essential indicator lights for turn signal, high beam, neutral, and low oil pressure.
• Resettable miles to service reminder and hour meter for proactive maintenance.

Technical specifications

• Brand: Dakota Digital
• Product Name: Analog Speedometer
• Type: Analog Gauge System
• Speedometer: 140 mph
• Tachometer: 8,000 rpm
• Calibration: 0 kph - 225 kph, 0 rpm - 8,000 rpm
• Case Diameter: 4-1/4"
• Bezel Diameter: 4-5/8" (11.8 cm)
• Face Color: Black, Gray
• Housing Color: Chrome

Important to know

• Wiring installation requires cut/splice; it is not a direct plug-in gauge.
• Oil pressure sending unit sold separately (part #s 2212-0513 or DS-250019).
• Cylinder head temperature sensor function requires factory sender unit.
