Dakota Digital MVX Analog Speedometer/Tachometer - mph - MVX-2011-KG-K

Upgrade your motorcycle's instrumentation with the Dakota Digital MVX Series Analog Gauge System. This all-in-one gauge provides essential information in a stylish and easy-to-read format. Combining classic analog aesthetics with modern digital functionality, the MVX Series is perfect for riders who demand both style and performance.

Description

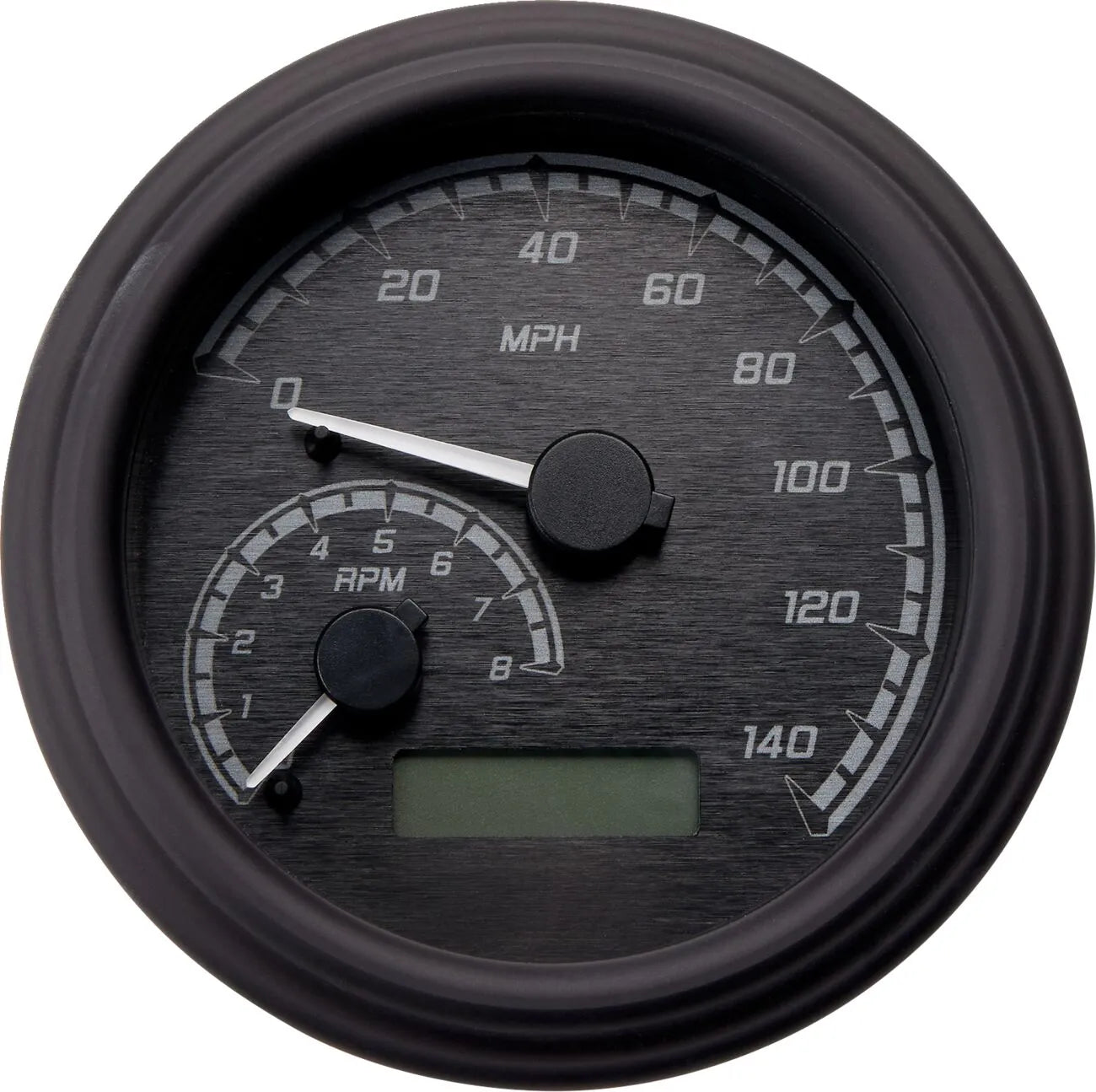

The Dakota Digital MVX Series Analog Speedometer offers a comprehensive display, including a 140 mph speedometer, 8,000 rpm tachometer with adjustable shift point, odometer, and dual resettable trip meters. The system also features a full indicator light complement for turn signals, high beam, neutral, and low oil pressure. The digital display can show a numeric readout for the tachometer, resettable miles to service with a user-settable warning, an hour meter, a clock, and a voltage readout with a low-voltage alert. If equipped, it can also display cylinder head temperature. A seven-speed gear position indicator ensures you always know what gear you're in, and it's compatible with 3- to 7-speed transmissions. Security system, automatic turn signal cancelling, and wait-to-start/check engine light indicators are also included. Plus, it can perform performance calculations such as 0-60 time, top speed and peak rpm recall, and 1/4 mile time and speed. The housing has a 4-1/4" case diameter and a 4-5/8" bezel diameter. The MVX series offers customizable display colors with 31 user-selectable colors for '11-'22 models.

Features & highlights

• All-in-one analog gauge system with digital display for comprehensive data monitoring.
• 140 mph speedometer and 8,000 rpm tachometer with adjustable shift point.
• Dual resettable trip meters, odometer, and essential indicator lights.
• 31 user-selectable colors for pointer, backlight, and LCD message center on '11-'22 models.
• Seven-speed gear position indicator compatible with 3- to 7-speed transmissions.
• Performance calculations: 0-60 time, top speed, peak rpm, 1/4 mile time, and speed.
• Voltage readout with low-voltage alert and cylinder head temperature sensor (if equipped).

Technical specifications

• Brand: Dakota Digital
• Product Name: Analog Speedometer
• Type: Analog Gauge System
• Speedometer: 140 mph
• Tachometer: 8,000 rpm
• Face Color: Black, Gray
• Housing Color: Black
• Outside Diameter: 4-5/8" (11.8 cm)
• Calibration: 0 kph - 225 kph, 0 rpm - 8,000 rpm
• Features: Backlit, 31 User-Selectable Colors

Important to know

• Oil pressure sending unit sold separately (part #s 2212-0513 or DS-250019).
• Cylinder head temperature sensor functionality requires factory sender unit.

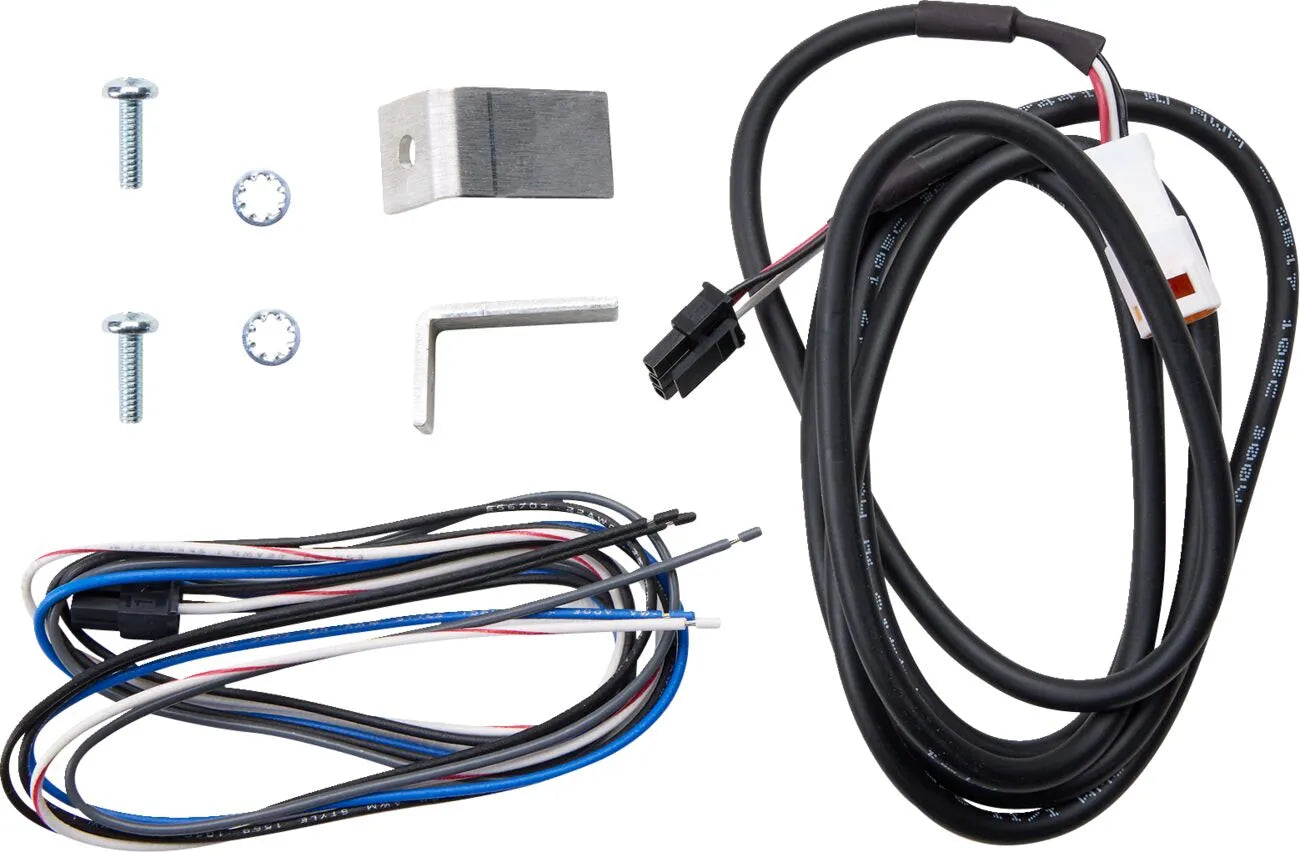

• Wiring installation requires cut/splice; not a direct plug-in gauge.
