Dakota Digital Odyssey Round Digital Mini Meters by Dakota Digital – Gauges & Dashes

For the Custom builder that wants more than the average, Dakota Digital developed a unique and very complete series of precision digital round instruments. These digital instruments are available as speedo, tacho, oil pressure, oil temperature, voltage and head temperature meter. Speedometers are available in 3 3/8" (86mm) as well as in 2 1/16" (52mm). Tachometers are 3 3/8" (86mm) diameter. Oil pressure, oil temperature, voltage and cylinder head temperature meters are 2 1/16" (52mm) diameter and fit most aftermarket mounts. Sensors must be ordered separately. Installation of speedo's, tacho's and information centers on 2002 to present V-Rod, 2004 thru 2013 Sportster, 2004 thru 2010 Softail, 2004 thru 2011 Dyna and 2004 thru 2013 Touring requires the separate purchase of ZPN 744267 Break-Out box for the J-1850 Databus. Not suitable for later models with the CAN-Bus (HD-Link) system.

3 3/8" (86mm) Mini Speedometer Adjustable speedometer with odometer reading. A unique alpha numeric read out is used to display odometer, trip odometer, service meter, high speed recall, and 0-60 time. This speedometer can be driven by the OEM electronic speed sensor when used in combination with the Dakota adapter, inductive sensor (for counting gear tooth) as well as a normal cable when used with the unique Dakota pulse generator. Has selectable KM/H or MPH readout., Adapter for use with OEM sensor on 1996-2003 models

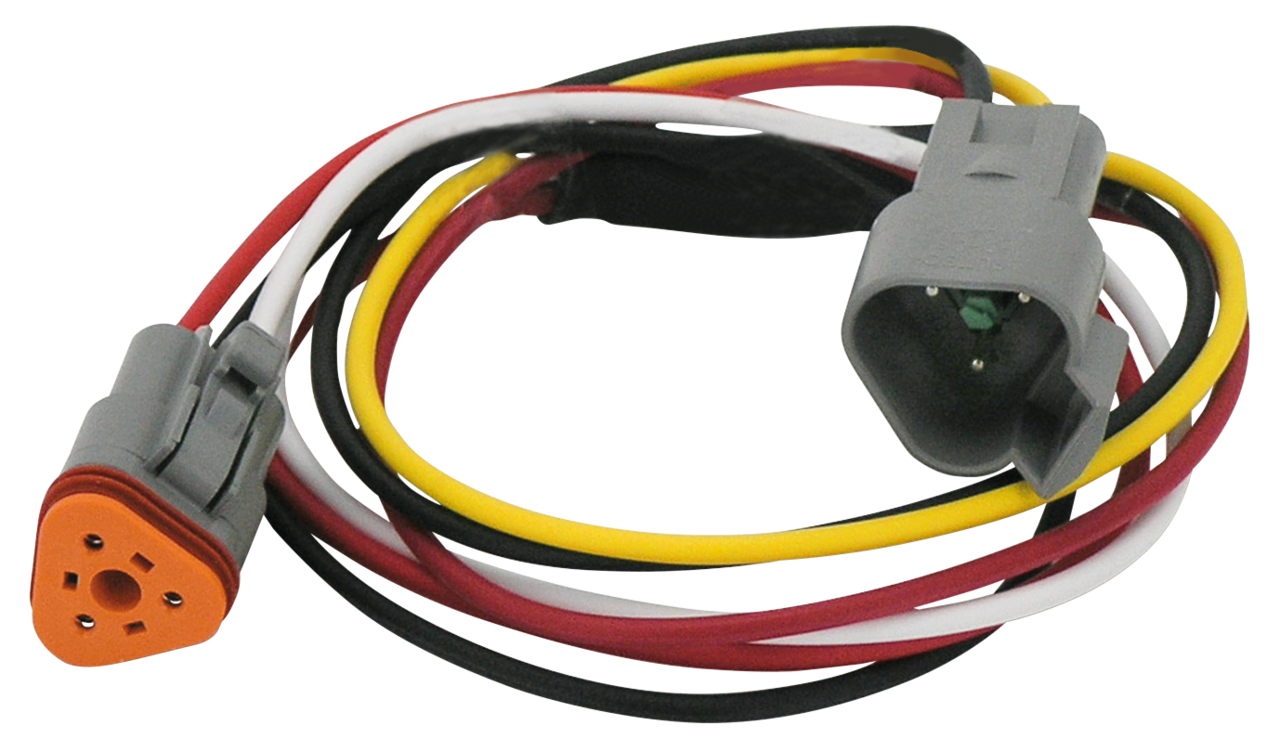

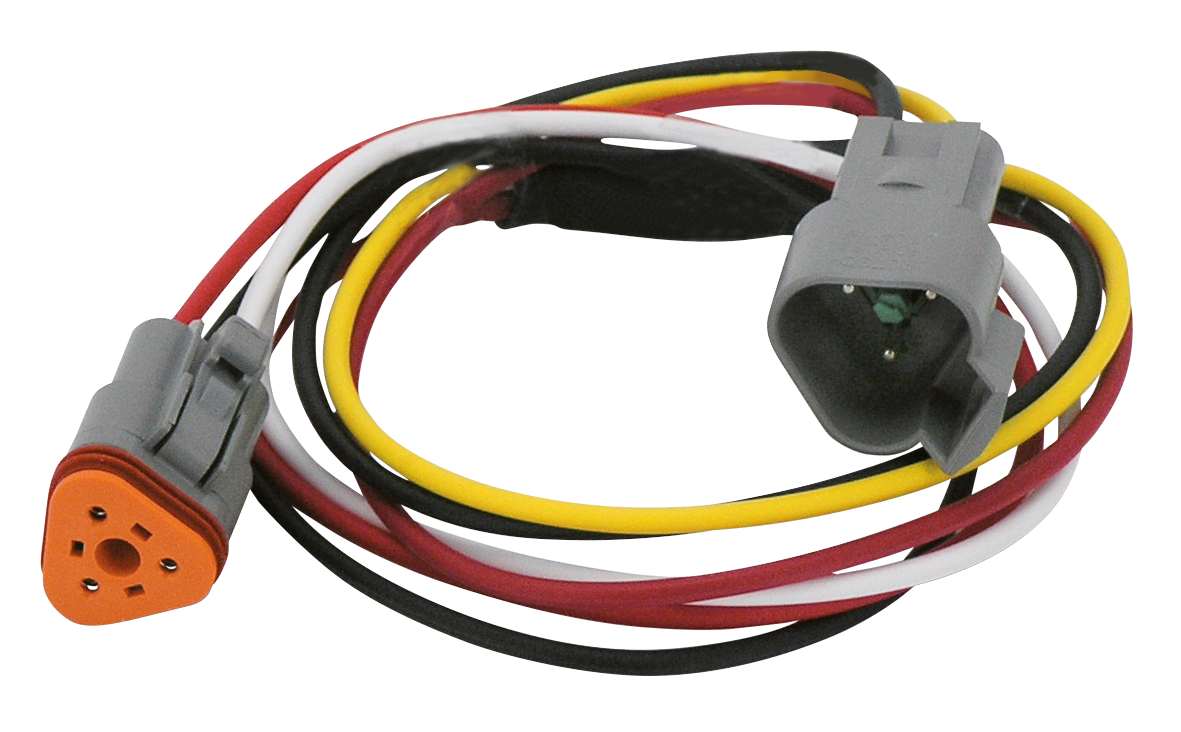

Adaptor for 96up electronic trans.sender

• Category: Speedo & Tacho
