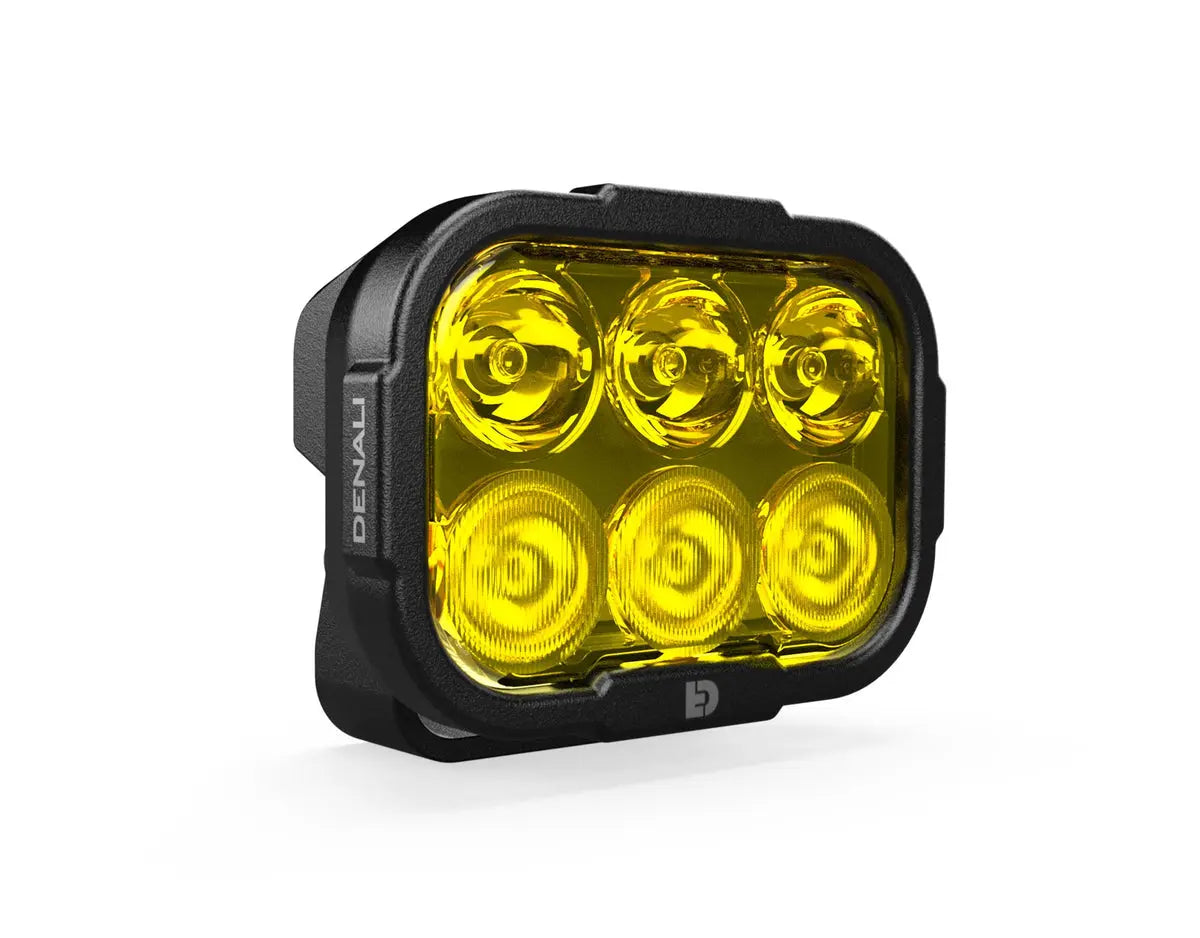

Denali DL6 LED Hybrid Driving Light Pod - Yellow Lens - DNL.DL6.050.Y

The Denali DL6 Hybrid Driving Light is a powerful and versatile lighting solution for motorcycle enthusiasts and professionals alike. This innovative light pod combines cutting-edge technology with robust construction to deliver unmatched performance and reliability.

Description

Experience superior visibility with the DL6's perfected hybrid driving beam. Utilizing oversized TIR optics, these lights distribute light with unmatched efficiency, providing exceptional distance and width from a compact housing. Each pod features top-bin CREE LEDs, driven at 8 watts each, to produce a remarkable 5,100 raw lumens per light pod, or 10,200 lumens per pair. The DataDim™ compatibility ensures seamless dimming via plug-&-play connection to all DENALI light harnesses, DialDim, and CANsmart Controllers. With a beam distance up to 1330 feet (406 meters) and beam width up to 270 feet (82 meters), the Denali DL6 provides outstanding illumination for any adventure. These driving lights offer a 9-32 VDC operating voltage within a 3" x 4.5" rectangle, and 2" deep pod size. The advanced DrySeal™ construction guarantees 100% waterproof and submersible performance, even with connectors removed. Built to last, the Denali DL6 features a robust heatsink and 4mm thick powder-coated steel brackets, allowing for an impressive 21grms vibration rating, with polycarbonate lenses reinforced with a UV hard coating.

Features & highlights

• Unmatched Brightness: Experience 10,200 raw lumens per pair, powered by top-bin CREE LEDs.
• Optimized Beam: Oversized TIR optics deliver exceptional distance and width for superior visibility.
• Plug-&-Play Dimming: DataDim™ compatible for seamless integration with DENALI dimming systems.
• Waterproof Design: DrySeal™ construction ensures 100% waterproof and submersible performance.
• Rugged Durability: Built with 4mm thick steel brackets, robust heatsink, and UV-coated polycarbonate lenses.
• Vibration Resistance: Boasts an impressive 21grms vibration rating for reliable performance in harsh conditions.

Technical specifications

• Brand: Denali
• LEDs: Cree XPL HI (8W each)
• Lumens: 5,100 (single), 10,200 (pair)
• Watts: 48W (single), 96W (pair)
• Amp Draw: 4A (single), 8A (pair)
• Beam Distance: 1000' (305m) single, 1330' (406m) pair
• Beam Width: 203' (62m) single, 270' (82m) pair
• Operating Voltage: 9-32 VDC
• Pod Size: 3" x 4.5" x 2" Deep
• Connector: DataDim Compatible 3-wire DT
• Light Color: Yellow
• Lens Color: Yellow
• Light Temperature: 6000 K
• Trim Color: Black
• Type: Driving Light

Important to know

• DL Series lenses are not interchangeable.
