Elektronikbox C-BS Digital Wiring Harness - Black - C-BS Harness

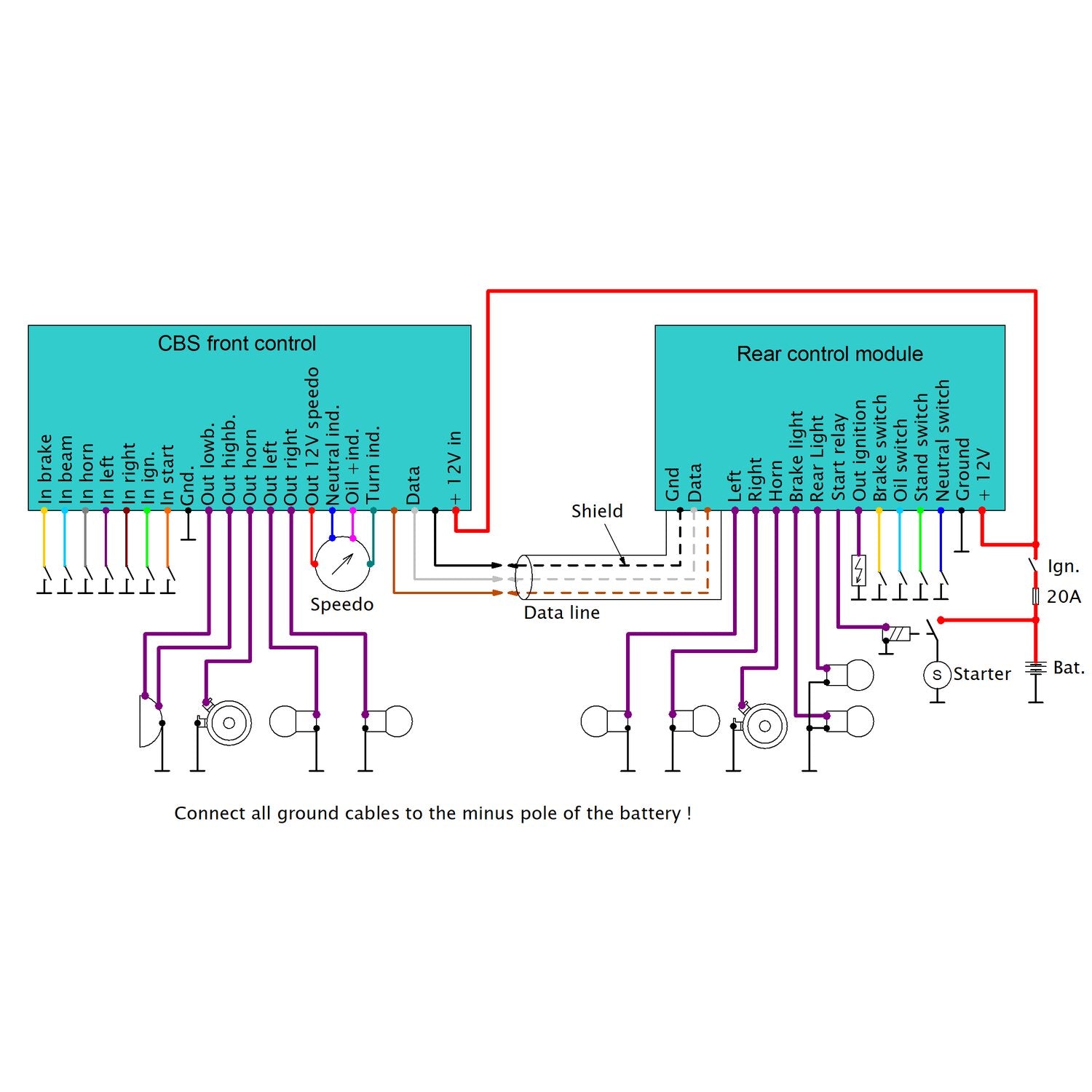

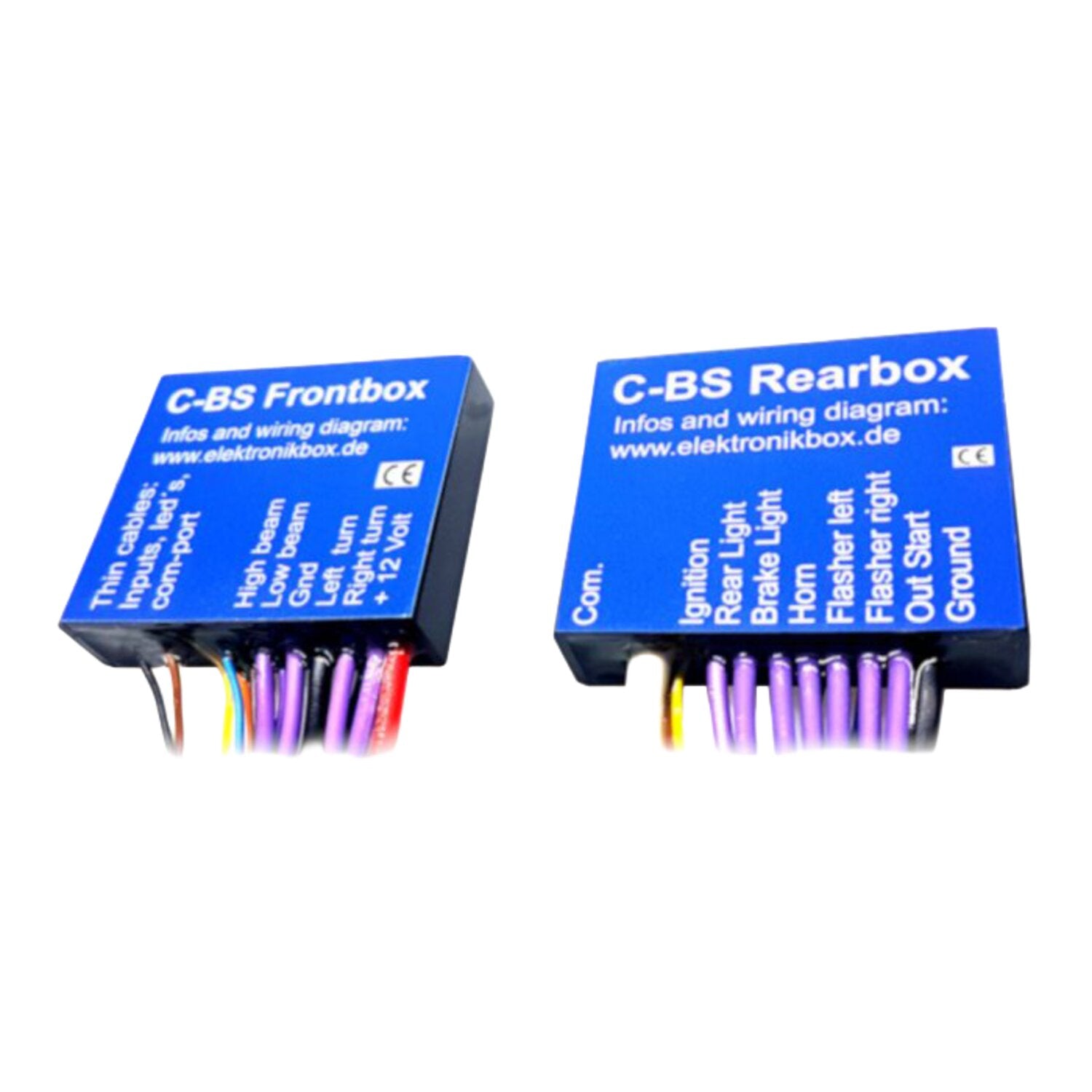

Axle Joost's 'C-BS' harness stands for Control Buttons & Switches. This C-BS harness consist of 2 small control boxes, 'front' and 'rear', that 'talk' via a thin serial bus cable. Switches, push buttons and power cables are wired direct to the nearest box. This reduces the amount of cables used on the bike and wiring installation time. It allows you to manually control all things you need to control (i.e. headlamp/taillight, turn signals, horn, start relay, brake light, ignition) with only 2 pushbuttons, can also be used with a handlebar adapter for 1-wire control. Alternatively control can also run through you existing controls & buttons. All outputs have integrated LEDs that allow easy testing during installation. Has inputs for neutral switch & side stand switch. You program your own preferences during installation. - Dimensions: Handle bar - and frame module: 50 mm x 42 mm x 12 mm - Body material: Shock resistant ABS plastic, water resistant sealed in resin - Case Color: Black - Connections: 0.14 qmm. for input, 0.75 qmm. for power outputs - Power consumption in operation: 7 mA - Maximum temperature: 80 degree Celsius - Maximum output current: 5 Ampere / output, 1 Ampere for speedo - Input voltage range: 6-18 Volt - Maximum current of the 12V ignition connector: 20 Ampere

• Category: Switches ignition
• Manufacturer part number: C-BS Harness
