Feuling Twin Cam HP+ Chain Drive Conversion Kit - 7224

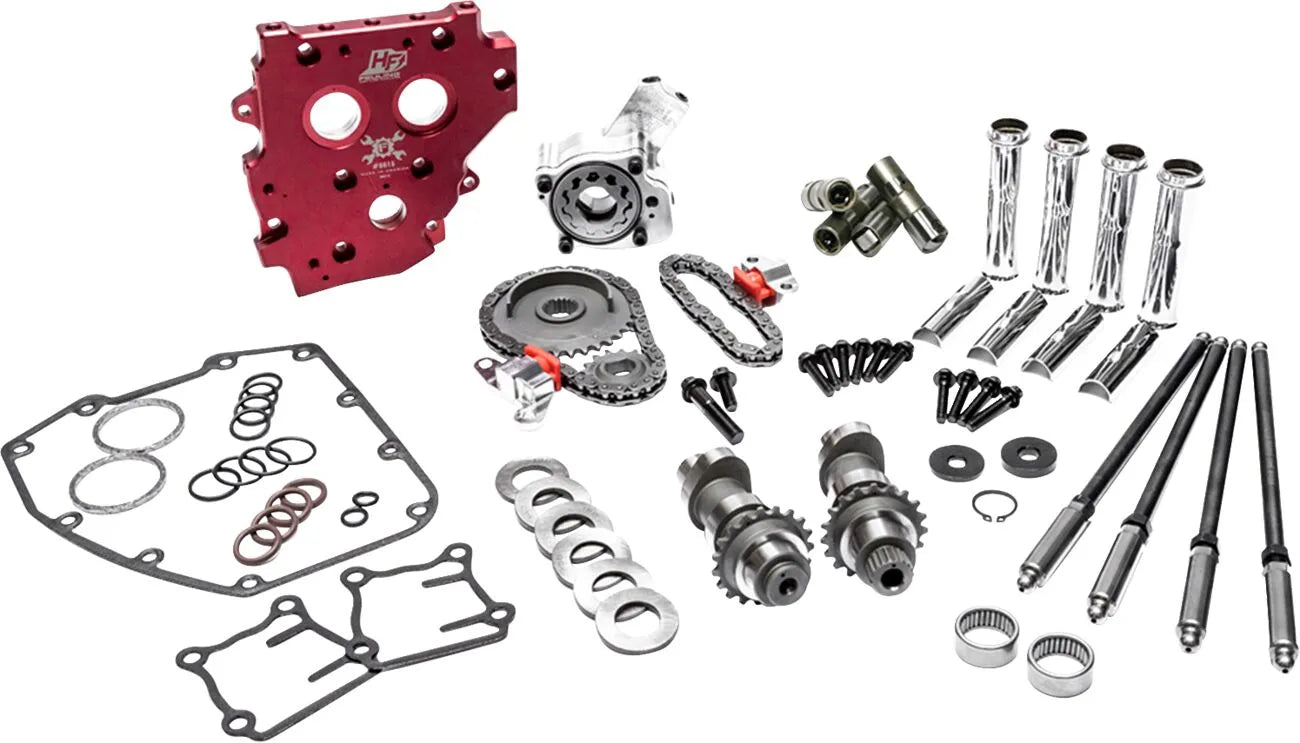

Upgrade your '99-'06 Twin Cam engine (except '06 Dyna) with the Feuling Parts HP+® Chain Drive Conversion Kit, designed to replace outdated mechanical cam and tensioner systems with a modern hydraulic tensioner setup. This comprehensive kit delivers enhanced performance and reliability for your motorcycle.

Description

The Feuling HP+® Chain Drive Conversion Kit not only updates your engine but also improves its efficiency. Experience a significant reduction in engine temperatures, with a decrease of 25°-35°F. Benefit from a notable increase in oil pressure, gaining an additional 15-30 PSI. This kit effectively eliminates wet sumping, blow-by, and oily air cleaners, ensuring a cleaner and more efficient running engine. The conversion camshafts are designed for '99-'06 Twin Cam engines, utilizing '99-'06 inner cam journals and '07-'16 outer cam journals. This allows compatibility with '07-'16 camplates, oil pumps, hydraulic chain tensioners, and chain drive systems. Installation is straightforward, with all necessary components included.

Features & highlights

• Significantly reduces engine temperatures by 25°-35°F for cooler operation.
• Increases oil pressure by 15-30 PSI for improved lubrication.
• Eliminates wet sumping, blow-by, and oily air cleaners for a cleaner engine.
• Includes Reaper® series camshafts for enhanced performance.
• Features HP+® hydraulic roller lifters for reliable valve train operation.
• Comes with quick install adjustable pushrods for easy setup.
• Ensures compatibility with '07-'16 components for a seamless upgrade.

Technical specifications

• Brand: Feuling Parts
• Type: Chain Conversion Kit
• Grind: 543 Series
• Intake Open: 15°
• Intake Close: 43°
• Intake Duration: 238°
• Intake Lift: 0.543"
• Intake Lift at TDC: 0.160"
• Intake Lobe Centerline: 104°
• Exhaust Open: 56°
• Exhaust Close: 12°
• Exhaust Duration: 248°
• Exhaust Lift: 0.553"
• Exhaust Lift at TDC: 0.140"
• Exhaust Lobe Centerline: 112°

Important to know

This kit is designed for '99-'06 Twin Cam engines, except for '06 Dyna models.
