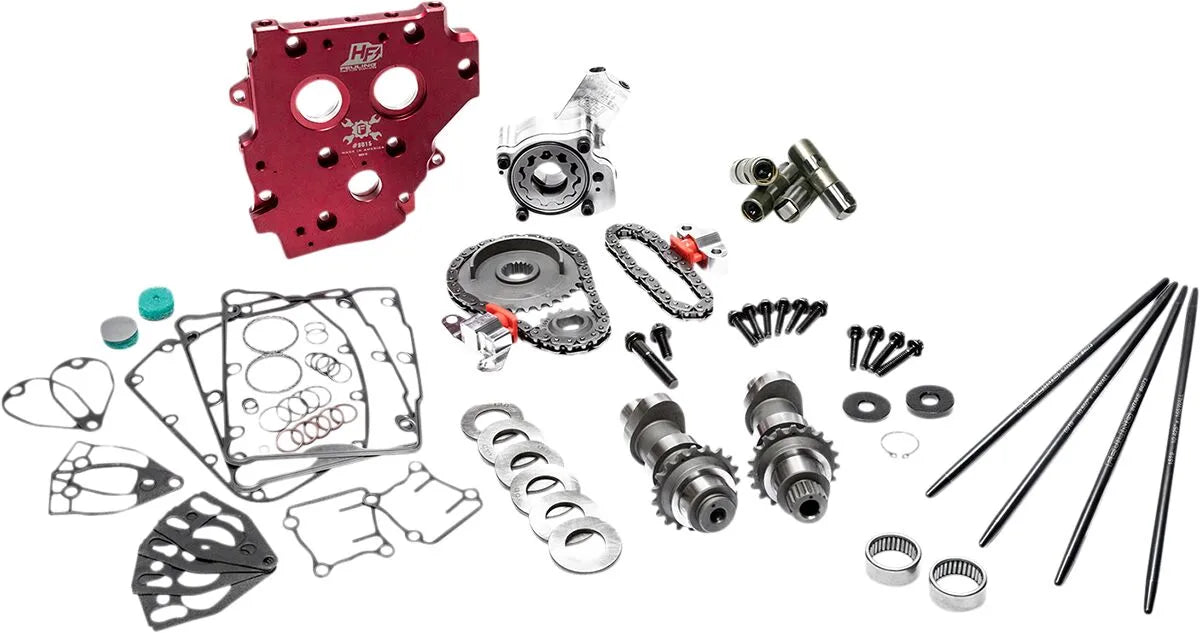

Feuling Hp+ Chain Drive Conversion Kit

Upgrade your '99-'06 Twin Cam engine (except '06 Dyna) with the Feuling Parts HP+ Chain Drive Conversion Kit. This comprehensive kit replaces the outdated mechanical cam and tensioner system with a modern hydraulic tensioner setup, boosting engine performance and reliability.

Description

The Feuling HP+ Chain Drive Conversion Kit delivers significant improvements in engine cooling and oil pressure. Expect a 25°–35°F reduction in engine temperatures and a 15–30 PSI increase in oil pressure. This kit effectively eliminates wet sumping, blow-by, and oily air cleaners, ensuring a cleaner and more efficient engine. Featuring Reaper® series camshafts, the conversion camshafts are designed for '99-'06 Twin Cam engines, utilizing the '99-'06 inner cam journals with the '07-'16 outer cam journals, allowing use of '07-'16 camplates, oil pump, hydraulic chain tensioners, and chain drive system. The high-volume oil pump and high-flow cam plate included in this kit further enhance oil circulation and engine lubrication. Enjoy improved performance, enhanced reliability, and a cleaner running engine with this premium chain drive conversion kit.

Features & highlights

• Reduces engine temperatures by 25°–35°F for improved cooling.
• Increases oil pressure by 15–30 PSI for enhanced lubrication.
• Eliminates wet sumping, blow-by, and oily air cleaners.
• Includes Reaper® series camshafts for superior performance.
• Features Feuling HP+® high-volume oil pump and high-flow cam plate.
• Converts to a reliable hydraulic chain tensioner system.
• Complete kit with all necessary components for installation.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camchest Kit
• Type: Chain Conversion
• Application: Intake, Exhaust
• Grind: 543 Series
• Intake Open: 15°
• Intake Close: 43°
• Intake Duration: 238°
• Intake Lift: 0.543"
• Intake Lift at TDC: 0.160"
• Intake Lobe Centerline: 104°
• Exhaust Open: 56°
• Exhaust Close: 12°
• Exhaust Duration: 248°
• Exhaust Lift: 0.553"
• Exhaust Lift at TDC: 0.140"
• Exhaust Lobe Centerline: 112°
• Features: One Piece Pushrods

Important to know

This kit is designed for '99-'06 Twin Cam engines, excluding '06 Dyna models.
