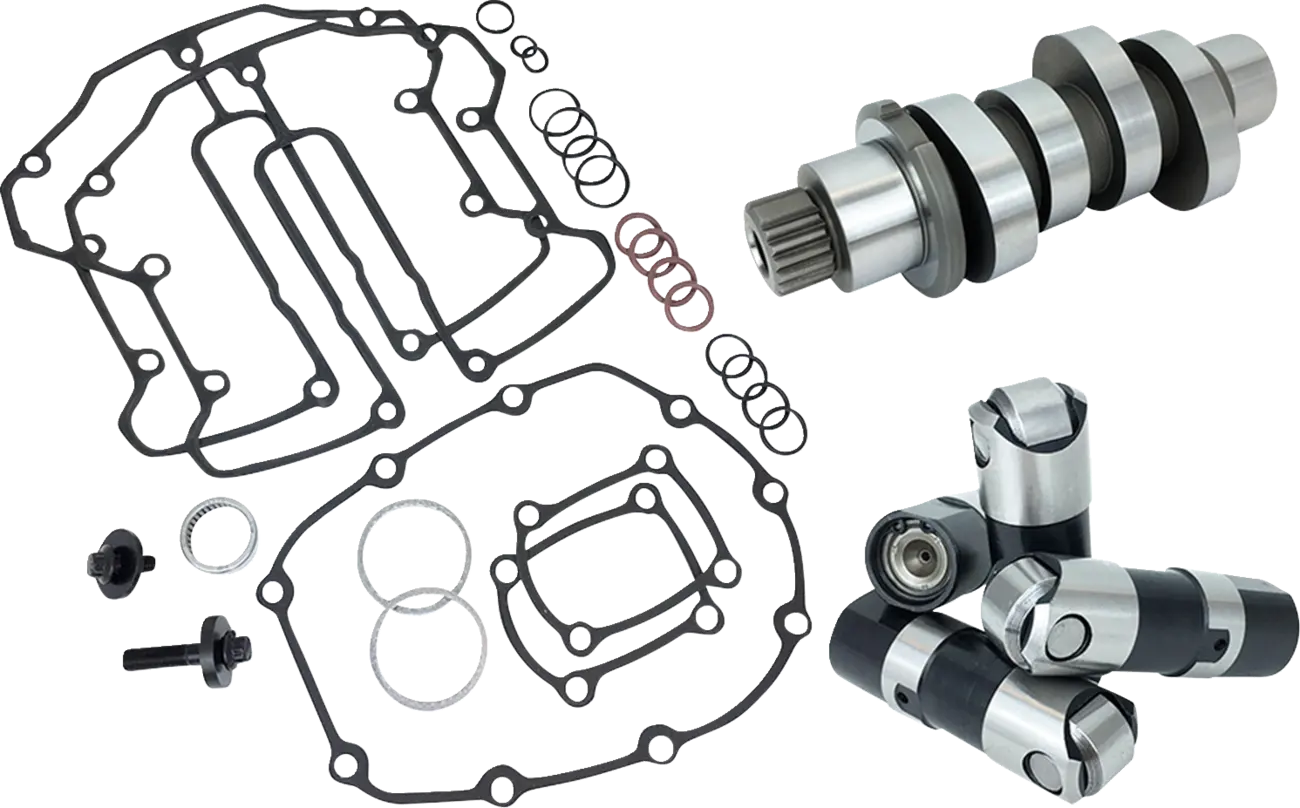

Feuling M8 487 Reaper Cam Kit - 1462

Upgrade your Milwaukee-Eight engine's performance with the Feuling Parts 487 Reaper Cam Kit. This comprehensive kit is designed for 114" and 117" engines, delivering increased power and improved throttle response throughout the RPM range. Experience the difference a performance cam can make.

Description

The Feuling Parts 487 Reaper Cam Kit features the 487 Reaper Chain Drive Camshaft, engineered to provide optimal performance for 114" and 117" engines. With a 38° overlap and an RPM range of 2,250 - 6,100, this camshaft is designed to significantly improve your engine's power, especially when paired with increased bore and compression. It maintains impressive bottom-end torque and delivers a strong pull above 2,950 RPM compared to the stock cam. The kit includes a cam installation kit for ease of installation. Also included are Race Series lifters designed with a slower bleed down rate to handle heavy valve spring pressures and increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange. Maximize your engine's potential with this high-performance cam kit.

Features & highlights

• Designed for 114" and 117" Milwaukee-Eight engines.
• Provides a 2,250 - 6,100 RPM range for optimal performance.
• Delivers increased power and improved throttle response.
• Maintains bottom-end torque and enhances high-RPM pull.
• Includes cam installation kit for easy setup.
• Race Series lifters handle heavy valve spring pressures.
• Made in the USA.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camshaft Kit
• Type: Chain Drive
• Grind: 487 Series
• Intake Open: 20.5°
• Intake Close: 37°
• Intake Duration: 237°
• Intake Lift: 0.478"
• Intake Lift at TDC: 0.180"
• Intake Lobe Centerline: 98.5°
• Exhaust Open: 44°
• Exhaust Close: 17.5°
• Exhaust Duration: 241.5°
• Exhaust Lift: 0.487"
• Exhaust Lift at TDC: 0.146"
• Exhaust Lobe Centerline: 103.25°

Important to know

• High Lift valve springs are required on stock cylinder heads, Screamin Eagle cylinder heads have high lift valve springs but will need to be verified.
• Heavy duty one piece pushrods are highly recommended.
• Feuling® fastener kit is recommended to help prevent cylinder head cracking.
• A high flow exhaust system and air cleaner is highly recommended for optimal performance.
• Feuling® does not recommend tuning beyond stock emissions standards.
