Feuling Parts Hp+ High Volume Oil Pump For M-eight

The Feuling Parts HP+® High Volume Oil Pump significantly enhances your M-Eight engine's performance and longevity. This kit is engineered to boost oil pressure and volume, ensuring optimal lubrication and cooling for critical engine components.

Description

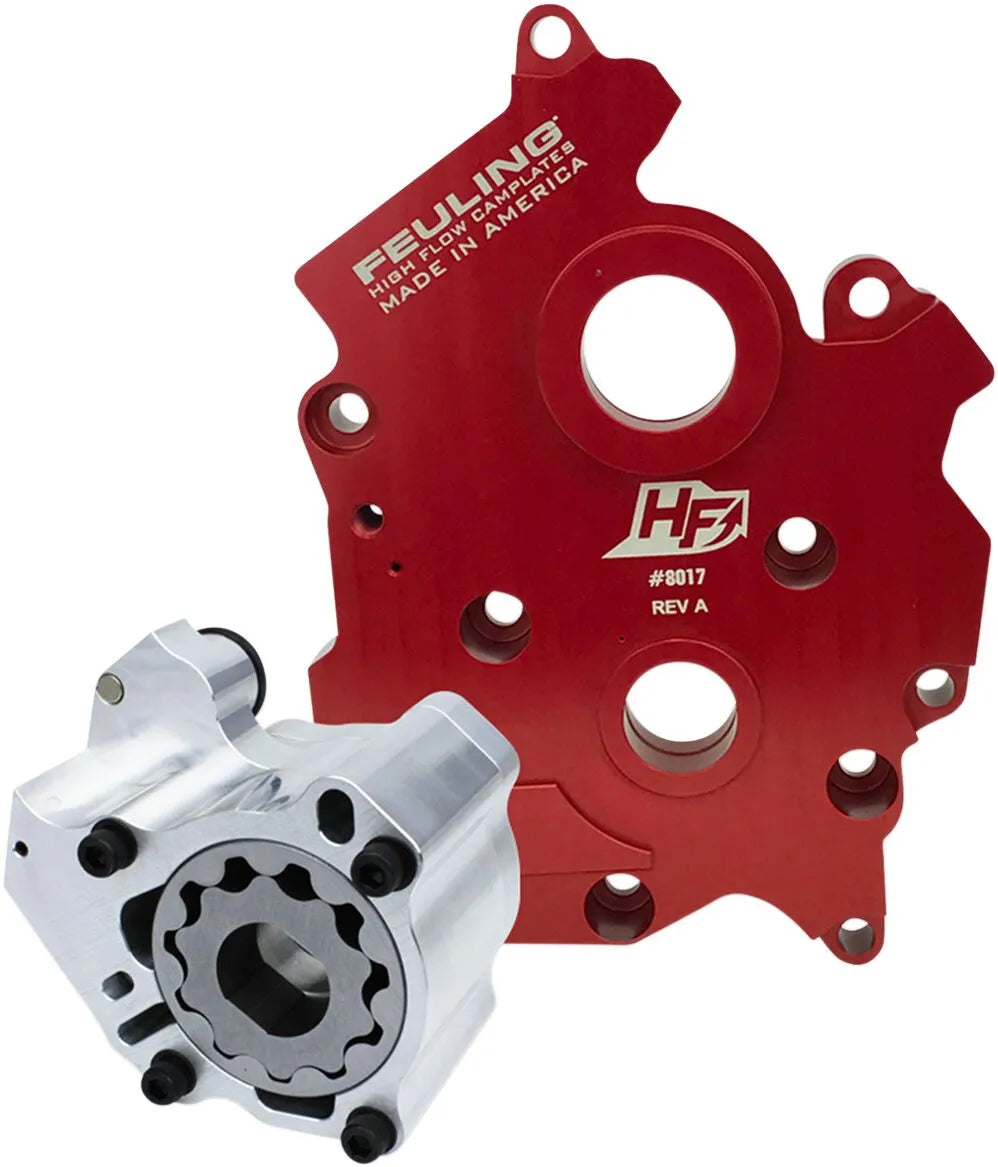

The Feuling Parts HP+® High Volume Oil Pump delivers increased oil pressure, oil volume, engine oil flow, and improved return oil scavenging, contributing to quieter and smoother engine operation. Experience engine temperatures running 15°-25° cooler and oil temperatures reduced by 15°-30°. With 10-30 lbs more psi of oil pressure, this pump effectively reduces wet sumping, blow-by, and oily air cleaners. Dyno testing has demonstrated a 2 horsepower and 2 ft/lbs of torque gain to the rear wheel on M-Eight models. This kit includes a billet 6061 aluminum high-volume oil pump and a FEULING® High Flow billet camplate crafted from 7075 aluminum, which boasts 50% greater hardness and strength than factory or FEULING® OE+ camplates. By enlarging oil pump reservoirs and critical oil passages, and matching oil portholes throughout the camplate to the engine case, this system maximizes oil flow to the lifters, piston cooling jets, crankshaft, and rod bearings. Each oil pump is bench-tested, with the relief valve seated and sealed to a minimum of 30 psi and full pop-off at 55-60 psi. The increased oil volume from larger gears and properly sized passages, combined with the pressure relief valve seat and seal, ensures proper oiling system function. The FEULING® oil pump and camplate combination effectively addresses common pressure and scavenge issues associated with factory oiling systems. All FEULING® M-Eight oil pumps feature a groove machined on the back cover to accommodate the factory crank bearing seal, and are proudly made in the USA. FEULING® testing reveals up to a 50% reduction in engine sump oil level. Note that the M-Eight oil pick-up port is located on the right side of the engine, and idling or warming the bike on the kickstand can affect oil level readings.

Features & highlights

• Increases oil pressure and volume for enhanced engine lubrication and cooling.
• Reduces engine and oil temperatures for improved performance and longevity.
• Minimizes wet sumping, blow-by, and oily air cleaners.
• Delivers proven horsepower and torque gains to the rear wheel.
• Features high-quality billet aluminum construction for durability and reliability.
• Eliminates common pressure and scavenge issues found in factory oiling systems.
• Made in the USA.

Technical specifications

• Brand: FEULING PARTS
• Part Number: 09251255
• Color/Finish: Red
• Material: 6061 Billet Aluminum
• Type: Oil
• Units: Kit
• Oil pressure minimum: 30 psi (2.06 bar)
• Oil pressure pop-off: 55-60 psi (3.79 bar - 4.13 bar)

Important to know

Optional Camplate/oil pump fastener kit PART #2401-0993 is available separately.
