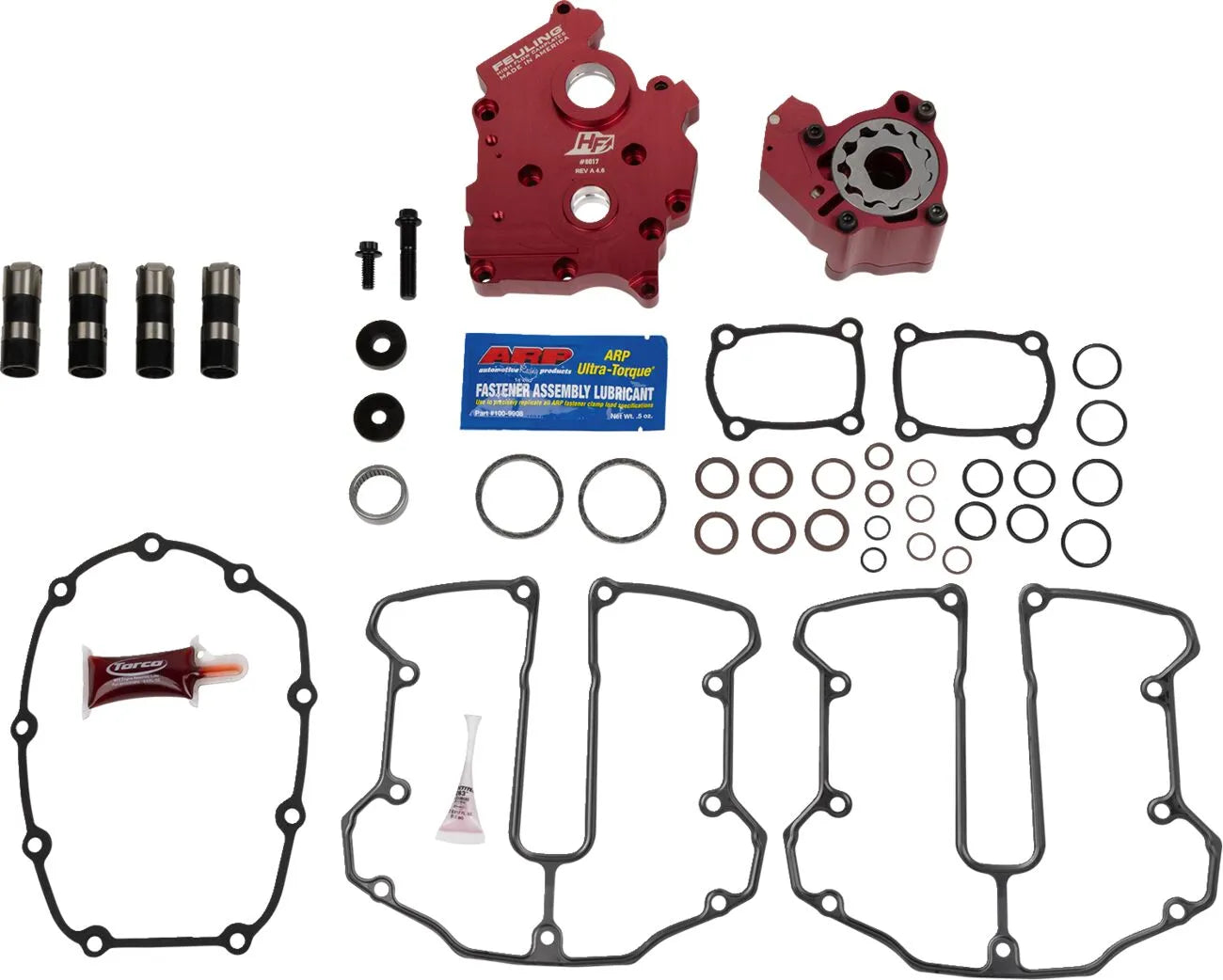

Feuling Parts Race Series Oil System Pack For M8

Upgrade your Milwaukee-Eight engine's oiling system with the Feuling Parts Race Series® Oil System Pack. This comprehensive kit delivers increased oil flow, volume, and pressure, ensuring optimal engine performance and longevity. Experience cooler engine temperatures, reduced oil aeration, and smoother operation with this meticulously engineered system.

Description

The Feuling Parts Race Series® Oil System Pack is designed to eliminate common pressure and scavenge issues associated with factory oiling systems in M8 engines. At the heart of this system is a high-flow billet camplate, crafted from 7075 aluminum, which boasts 50% greater strength and hardness than stock components. The kit increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages, with matched oil portholes increasing flow to the lifters, piston cooling jets, crankshaft, and rod bearings. This advanced system results in a quieter, smoother engine operation, with dyno-proven gains of 2 hp and 2 ft./lb. of torque to the rear wheel. The system also eliminates wet sumping, blow-by, and oily air cleaners.

Features & highlights

• Increases oil flow and volume for superior engine lubrication.
• Lowers engine and oil temperatures by 15°–30°.
• Delivers 10–30 lbs more psi of oil pressure for improved performance.
• Eliminates wet sumping, blow-by, and oily air cleaners for a cleaner running engine.
• Features a high-flow billet camplate made from 7075 aluminum for exceptional durability.
• Includes Race Series® short-travel hydraulic roller lifters for increased RPM and reduced valve float.
• Reduces engine sump oil level by as much as 50%.

Technical specifications

• Brand: Feuling Parts
• Product Type: Oil System Kit
• Camplate Material: 7075 Billet Aluminum
• Lifters: Race Series® short-travel hydraulic roller lifters (.115" travel)
• Oil Pump Material: 7075 Billet Aluminum
• Water Cooled: Yes
• Color/Finish: Red

Important to know

M-Eight engines must check clearance on front exhaust lifter to camshaft flange fit. An optional FUELING® X ARP bolt kit is available separately for the high flow camplate (PART #0932-0192) and HP+ or RS oil pump combo (PART #2401-0993). ARP oil pump bolts do not use washers.
