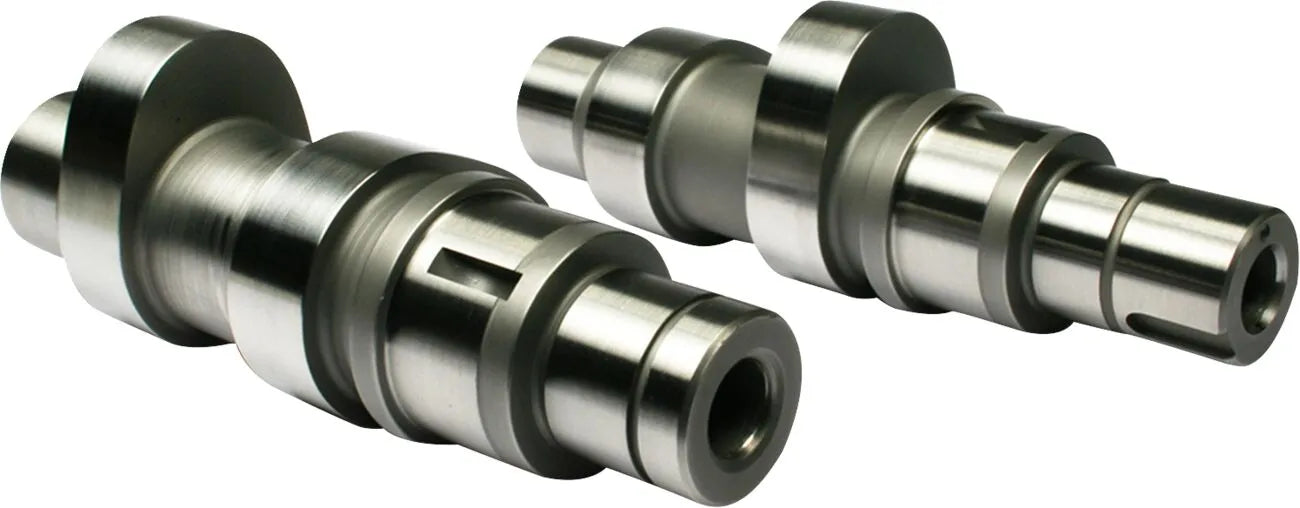

Feuling Reaper 574 Camshaft - 1007

Unleash the true potential of your Harley-Davidson engine with the Feuling Parts Reaper® 574 Series Camshaft. Designed for modified engines, this camshaft is also an excellent bolt-in upgrade for stock 96", 103", and 110" engines, offering a significant boost in performance and responsiveness.

Description

The Reaper® 574 Series camshaft delivers a broad power band from 2100 to 6500 RPM, making it ideal for riders seeking increased torque and horsepower across the rev range. This camshaft responds exceptionally well to performance upgrades such as modified cylinder heads, increased compression ratios, and aftermarket exhaust and intake systems. Feuling's innovative and extremely smooth cam-lobe design ensures smooth and quiet valvetrain operation, minimizing wear and maximizing reliability. Maximize your engine's performance with the Feuling Parts Reaper® 574 Series Camshaft, proudly made in the USA and engineered for power.

Features & highlights

• Broad power band optimized for modified engines and stock 96", 103", and 110" engines.
• Exceptional response to modified cylinder heads, increased compression, and performance exhaust/intake systems.
• Smooth cam-lobe design promotes quiet and reliable valvetrain operation.
• RPM range: 2100-6500.
• Made in the USA, ensuring top-quality materials and manufacturing.

Technical specifications

• Brand: Feuling Parts
• Product Name: Camshaft
• Grind: 574 Series
• Type: Gear
• Application: Exhaust, Intake
• Intake Duration: 240°
• Intake Open: 15°
• Intake Close: 45°
• Intake Lift: 0.574"
• Intake Lift at TDC: 0.163"
• Intake Lobe Centerline: 105°
• Exhaust Duration: 255°
• Exhaust Open: 61°
• Exhaust Close: 14°
• Exhaust Lift: 0.574"
• Exhaust Lift at TDC: 0.143"
• Exhaust Lobe Centerline: 113.5°

Important to know

Performance pushrods, lifters, and a performance clutch are highly recommended to ensure optimal performance and durability.
