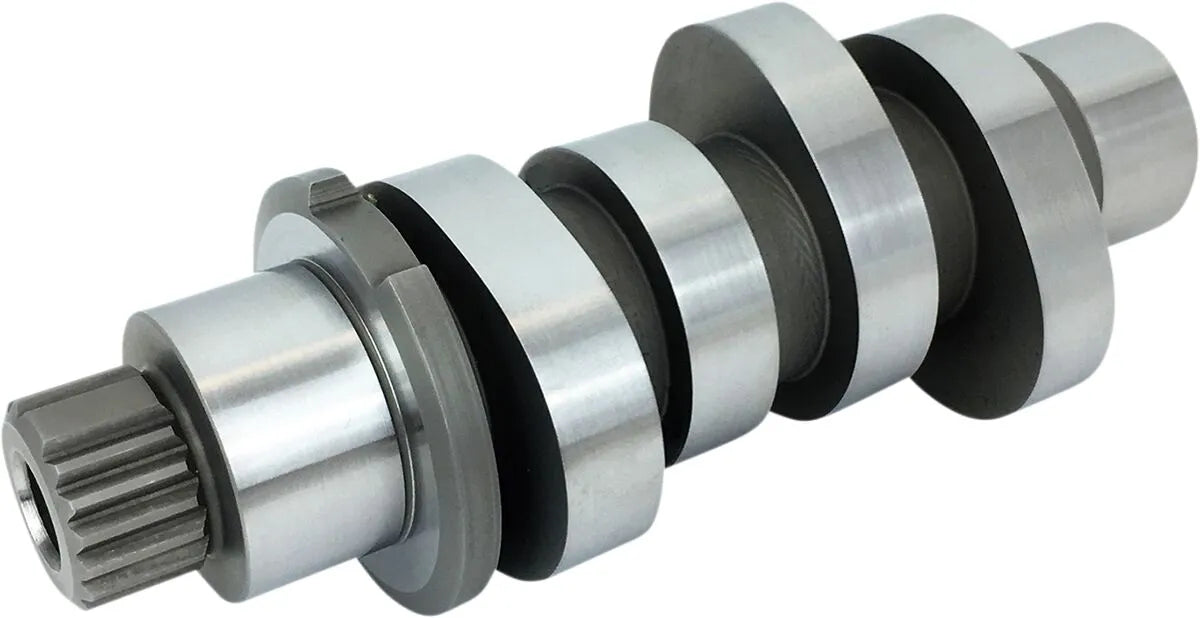

Feuling Parts Reaper 538 Cam

Unleash the full potential of your big bore engine with the Feuling Parts Reaper® 538 Cam. Designed for high-performance applications, this cam delivers rapid acceleration and substantial power gains, especially in engines with modified cylinder heads, enhanced intake and exhaust systems, and increased compression.

Description

The Reaper® 538 cam is optimized for 124" and larger cubic inch engines, where it truly shines with an enhanced compression ratio. While the stock throttle body provides an excellent powerband, upgrading to a high-flow throttle body will further amplify peak power output. Ported cylinder heads are not mandatory but will complement the cam, resulting in even greater pulling power throughout the RPM range. For optimal results, pair this cam with a high-flow exhaust system and air cleaner. Experience the thrill of a broad powerband from 2250 to 6250 rpm with this precision-engineered camshaft. Maximize your engine's performance with the Feuling Parts Reaper 538 cam, designed and manufactured in the USA for superior quality and reliability.

Features & highlights

• Rapid acceleration and hard-pulling performance for big bore engines.
• Optimized for 124" and larger cubic inch engines with increased compression.
• Enhances powerband with stock throttle body; maximizes peak power with high-flow throttle body.
• Complements ported cylinder heads for even greater pulling power.
• Recommended for use with high-flow exhaust systems and air cleaners.
• Broad 2250-6250 rpm power range for versatile performance.
• Proudly made in the USA.

Technical specifications

• Brand: Feuling Parts
• Grind: 538 Series
• Type: Chain
• Intake Open: 20.5°
• Intake Close: 38.5°
• Intake Duration: 239°
• Intake Lift: 0.538"
• Intake Lift at TDC: 0.180"
• Intake Lobe Centerline: 99°
• Exhaust Open: 48°
• Exhaust Close: 18°
• Exhaust Duration: 246°
• Exhaust Lift: 0.542"
• Exhaust Lift at TDC: 0.157"
• Exhaust Lobe Centerline: 105°

Important to know

Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio. A high-flow exhaust system and air cleaner are highly recommended for optimal performance.
