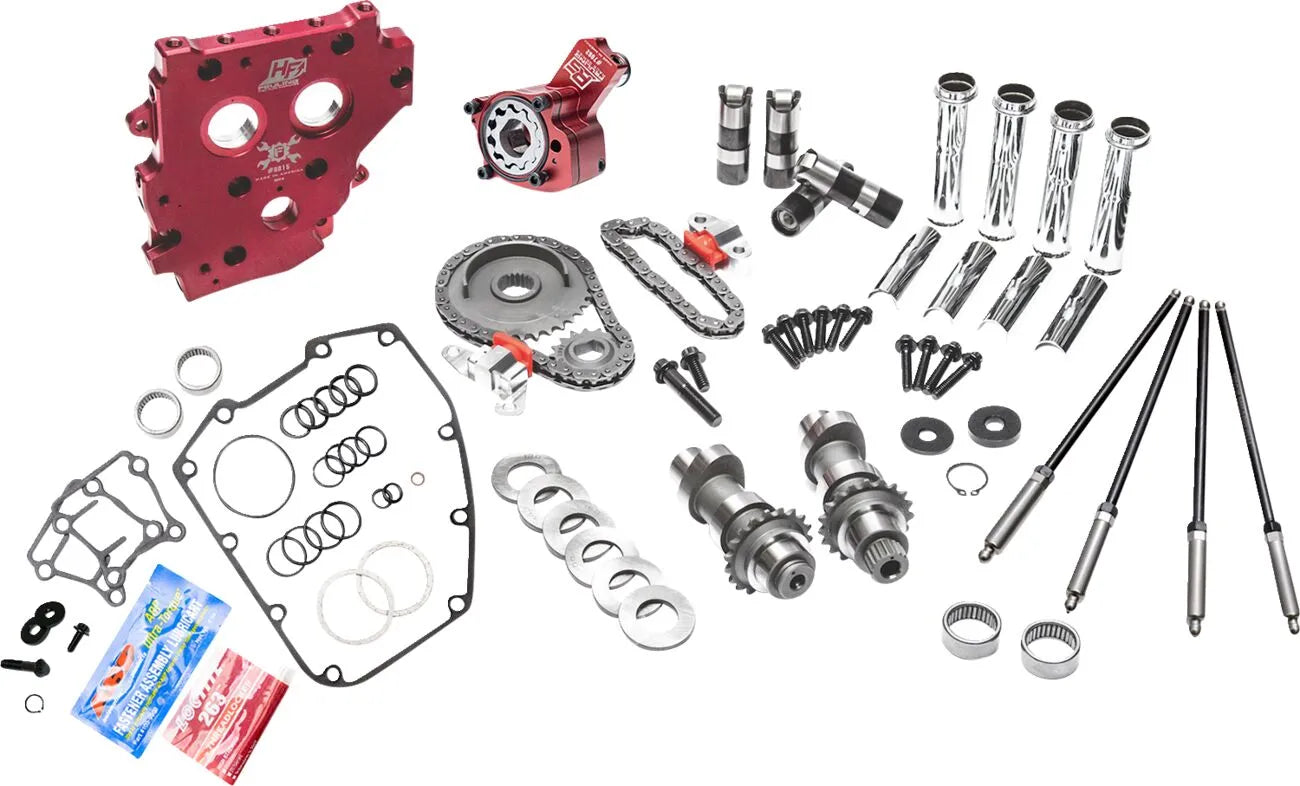

Feuling Twin Cam Race Series Cam Chest Kit - .630" Lift - 7223ST

Upgrade your '99-'06 Twin Cam engine with the Feuling Parts Race Series® Conversion Chain Drive Cam Chest Kit. This comprehensive kit replaces the old mechanical-style cams and tensioners with a modern hydraulic tensioner system, resulting in improved performance and reliability.

Description

The Feuling Parts Race Series® Conversion Chain Drive Cam Chest Kit eliminates common issues such as wet sumping, blow-by, and oily air cleaners. By updating to a hydraulic tensioner system, the kit ensures all components function harmoniously, leading to significantly cooler engine temperatures (25°–35°F cooler) and oil temperatures (15°–30°F cooler). Expect to see an increase of 15–30 lb of oil pressure. Designed for '99-'06 Twin Cam engines utilizing '99-'06 inner cam journals, this kit allows seamless integration with '07-'16 cam plates, oil pumps, hydraulic chain tensioners, and a reliable chain drive system. Installation is simplified with the included quick-install adjustable pushrods.

Features & highlights

• Eliminates wet sumping, blow-by, and oily air cleaners for a cleaner running engine.
• Maintains cooler engine temperatures (25°–35°F) and oil temperatures (15°–30°F) for improved performance and longevity.
• Increases oil pressure by 15–30 lb, ensuring optimal lubrication and reduced wear.
• Includes REAPER® Series conversion camshafts for enhanced power and torque.
• Features quick-install adjustable pushrods for easy and precise installation.
• All parts are designed to work together for maximum efficiency and reliability.
• Proudly made in the USA, ensuring top-notch quality and craftsmanship.

Technical specifications

• Brand: FEULING PARTS
• Product Name: Camshaft Kit
• Type: Chain Conversion
• Application: Intake, Exhaust
• Grind: 630 Series
• Intake Open: 20°
• Intake Close: 58°
• Intake Duration: 258°
• Intake Lift: 0.630"
• Intake Lift at TDC: 0.188"
• Intake Lobe Centerline: 109°
• Exhaust Open: 60°
• Exhaust Close: 19°
• Exhaust Duration: 263°
• Exhaust Lift: 0.630"
• Exhaust Lift at TDC: 0.171"
• Exhaust Lobe Centerline: 112.5°
• Features: Pushrod Tube Covers, Short Travel Lifters, Quick Install Adjustable Pushrods

Important to know

This kit does not fit '06 Dyna models. The kit is designed for '99-'06 Twin Cam engines, allowing the use of '07-'16 components.
