Hot Rods Connecting Rod Kit - 8111

Upgrade your engine's performance and reliability with the Hot Rods Connecting Rod Kit. Designed as a heavy-duty OE replacement, this kit provides superior strength and durability for demanding applications. Whether you're rebuilding or enhancing your engine, this connecting rod kit delivers the quality and performance you need.

Description

The Hot Rods Connecting Rod Kit is engineered to withstand the rigors of high-performance 2-cycle engines. Manufactured from certified 8620 AISI steel, the connecting rod offers exceptional strength and resilience. The crankpins are made from hot-rolled ASTM 4115 steel, case hardened to a level of 58-62Rc, ensuring robust performance and extended lifespan. Featuring the latest caged needle roller bearing designs, this kit is optimized for high RPM longevity. The uniquely designed big end incorporates strategically located side scalloping and vent slots, minimizing bearing race distortion at high RPM. Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, a critical feature when the piston crown is close to the wrist pin bearing. Each rod is shot-peened to eliminate surface stress risers and smoothly blend together the rod forging's radiuses. Double honing produces an ultra-round bearing surface, enhancing reliability at high RPM. This kit is compatible with both Hot Rods and OE crankshafts, making it a versatile choice for your engine rebuild or upgrade. Made in the USA, ensuring top-tier quality and precision.

Features & highlights

• Heavy-duty OE replacement for enhanced durability.
• Manufactured from certified 8620 AISI steel for superior strength.
• Crankpins made from hot-rolled ASTM 4115 steel and case hardened to 58-62Rc.
• Caged needle roller bearing designs for high RPM longevity.
• Double drilled small ends for improved wrist pin bearing lubrication and cooling.
• Shot-peened to eliminate surface stress risers.
• Compatible with Hot Rods and OE crankshafts.

Technical specifications

• Brand: HOT RODS
• Part Number: 423301
• Displacement: 250 cc, 300 cc
• Engine Type: 2-Cycle
• Material: 8620 Steel
• Product Name: Connecting Rod Kit
• Units: Kit

Important to know

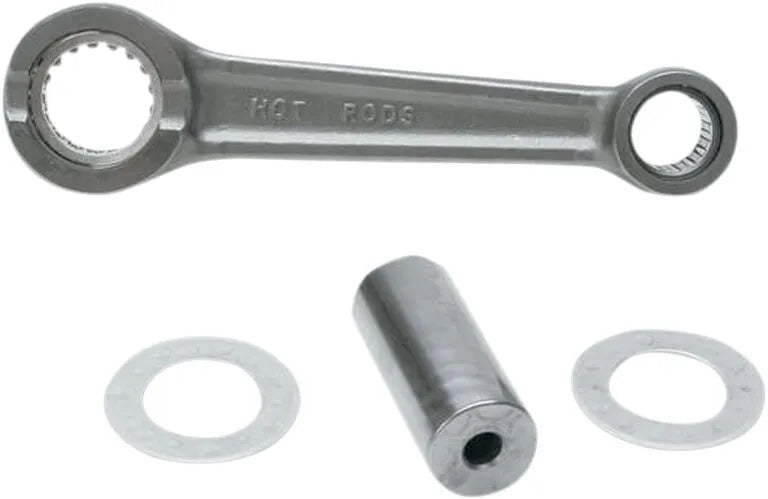

This kit includes the rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
