Hot Rods Connecting Rod Kit - 8616

Upgrade your engine's performance and reliability with the Hot Rods Connecting Rod Kit. This kit provides a heavy-duty OE replacement, ensuring your 250cc 4-cycle engine gets the strength and durability it needs. Built with high-quality materials and advanced design features, this connecting rod kit is engineered for high-performance applications.

Description

The Hot Rods Connecting Rod Kit is meticulously crafted from certified 8620 AISI steel, providing superior strength and durability. The crankpins are manufactured from hot-rolled ASTM 4115 steel and case hardened to a level of 58-62Rc. Featuring the latest in caged needle roller bearing designs, this kit ensures high rpm longevity. The uniquely designed big end incorporates strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm, while the small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing. Each rod is shot-peened to eliminate surface stress risers and double honed to produce an ultra-round bearing surface, ensuring reliability at high RPM. Compatible with both Hot Rods and OE crankshafts, this connecting rod kit is proudly made in the USA.

Features & highlights

• Heavy-duty OE replacement for enhanced durability.
• Constructed from certified 8620 AISI steel for superior strength.
• Crankpins made from hot-rolled ASTM 4115 steel, case hardened to 58-62Rc.
• Caged needle roller bearing designs ensure high rpm longevity.
• Unique big end design with scalloping and vent slots minimizes bearing distortion.
• Small ends are double drilled for enhanced wrist pin bearing lubrication and cooling.
• Shot-peened and double honed for optimal surface finish and reliability.

Technical specifications

• Brand: Hot Rods
• Product Name: Connecting Rod Kit
• Engine Type: 4-Cycle
• Displacement: 250 cc
• Material: 8620 Steel

Important to know

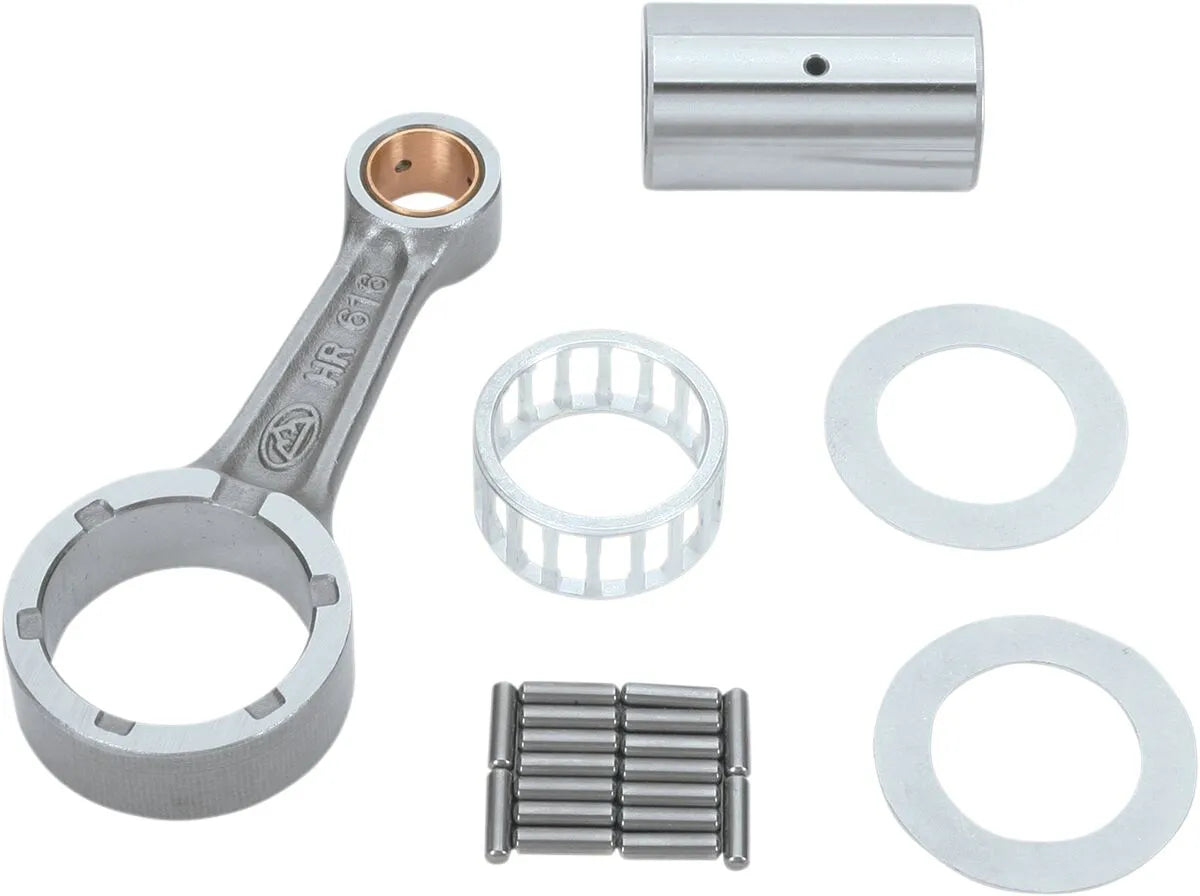

Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
