Hot Rods Connecting Rod Kit - 8189

The Hot Rods Connecting Rod Kit delivers exceptional durability and performance for your 800cc 2-cycle engine. This heavy-duty OE replacement connecting rod is engineered to withstand the rigors of high-performance riding, ensuring reliability and longevity.

Description

Built from certified 8620 AISI steel, the Hot Rods connecting rod offers superior strength compared to stock components. The crankpins are crafted from hot-rolled ASTM 4115 steel and case hardened to 58-62Rc for enhanced durability. Featuring advanced caged needle roller bearing designs, this connecting rod kit is optimized for high RPM applications. The uniquely designed big end incorporates strategically placed side scalloping and vent slots, minimizing bearing race distortion at extreme speeds. Double-drilled small ends provide increased lubrication and cooling to the wrist pin bearing, particularly crucial when the piston crown is close to the bearing. Shot-peened to eliminate surface stress risers and double honed for an ultra-round bearing surface, this connecting rod kit ensures optimal performance and reliability. Compatible with both Hot Rods and OE crankshafts, this kit is proudly made in the USA.

Features & highlights

• Heavy-duty OE replacement connecting rod for increased durability.
• Constructed from certified 8620 AISI steel for superior strength.
• Crankpins are manufactured from hot-rolled ASTM 4115 steel, case hardened to 58-62Rc.
• Advanced caged needle roller bearing designs for high RPM longevity.
• Unique big end design minimizes bearing race distortion at high RPM.
• Double-drilled small ends provide extra lubrication and cooling.
• Shot-peened finish eliminates surface stress risers.

Technical specifications

• Brand: Hot Rods
• Product Name: Connecting Rod Kit
• Material: 8620 Steel
• Engine Type: 2-Cycle
• Displacement: 800 cc

Important to know

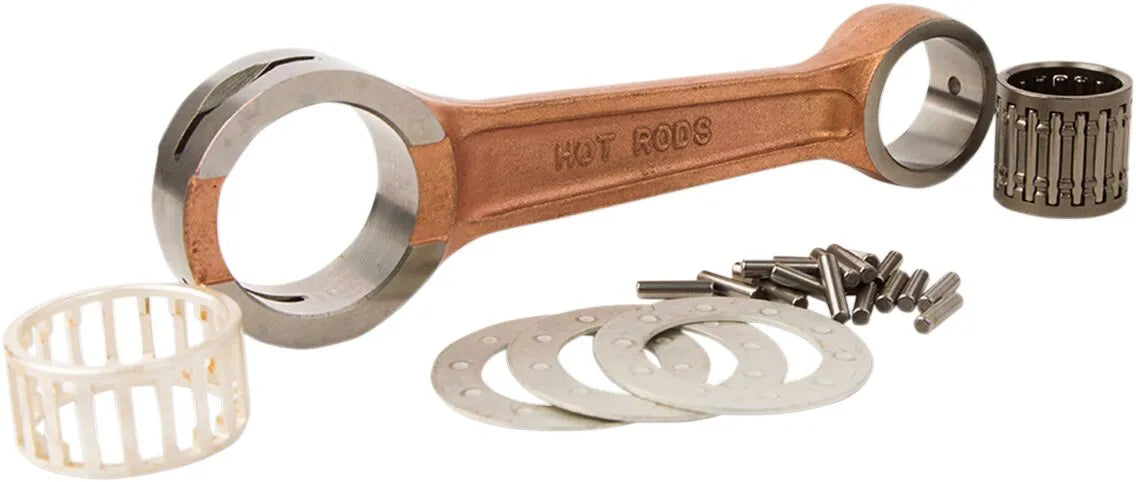

This connecting rod kit includes the rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
