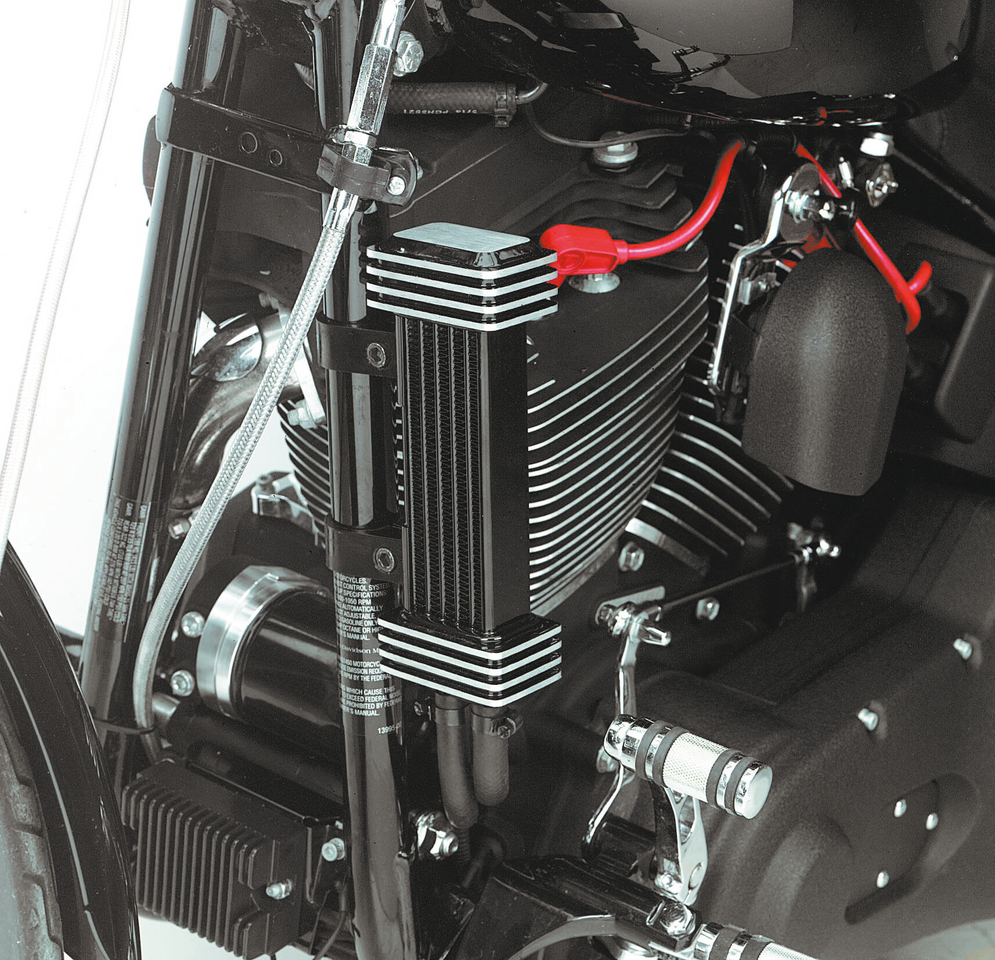

Jagg Deluxe Oil Coolers

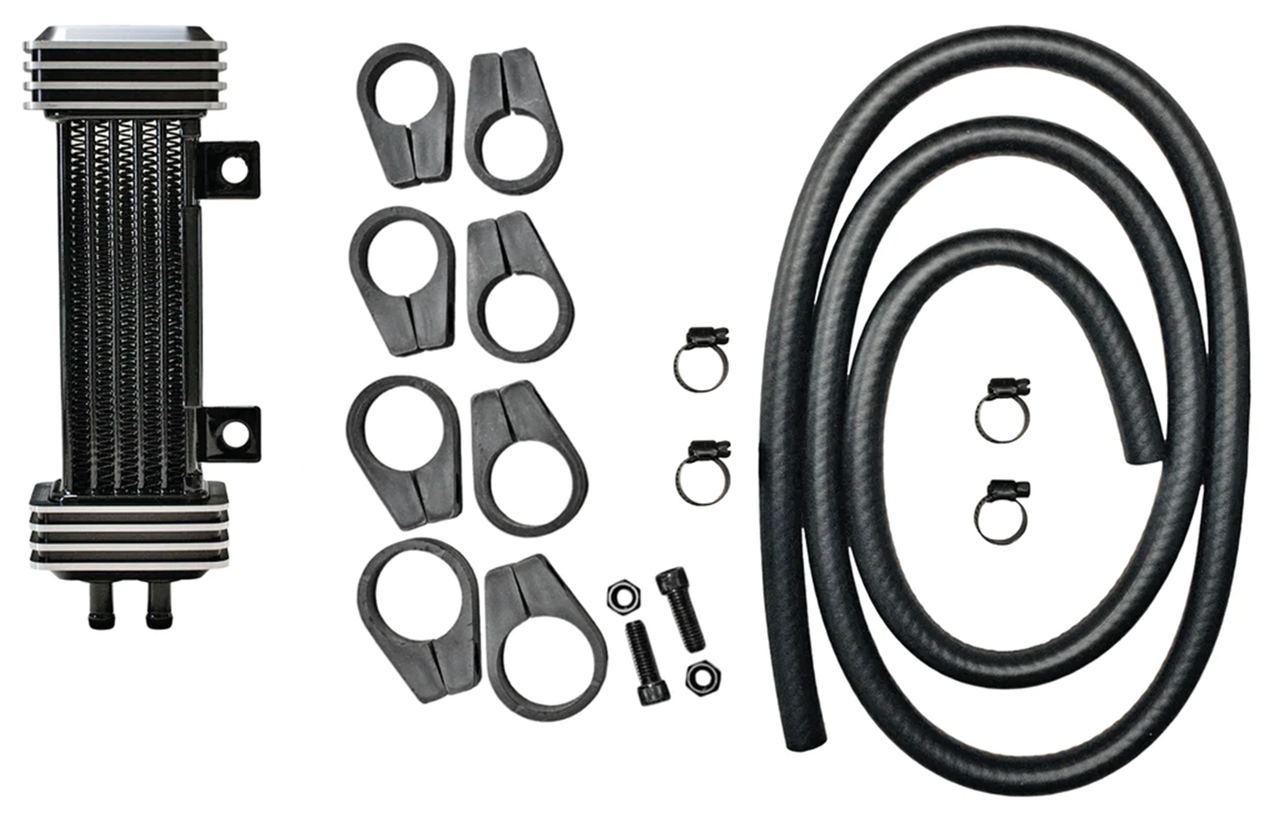

JAGG vertical mount Deluxe oil coolers provide simple and effective reduction of oil temperature to safe operating levels for maximum life of both oil and engine. They feature black anodized billet aluminum upper and lower ends with highlighted fins and  come complete with hardware, sandwich style Viscosity Regulated Flow oil filter adapter, frame clamps, hoses and hose clamps and easy-to-follow installation instructions. Specially designed turbulators in each oil passageway gently stir oil, exposing it to more critical heat dissipation surface area for superior cooling with no increase in oil pressure restriction. Additionally, highly concentrated mini-louvered air fins allow maximum heat transfer. Sleek High-Tech Uralite clamps insure trouble free mounting and cooler insulation from vibration. For air cooled Buell, Evolution Sportster and Evolution Big Twin a thermostatic controlled oil filter adapter is available separately.
Note: These coolers do not fit Twin Cooled engines (also known as Mount Rushmore or Water Heads) as used in some Touring and Trike. They also do not fit models equipped with fairing lowers.

Fits Panhead 1955-1964, Shovelhead 1965-1984, FXR 1982-2000, Softail 1984-2017, Dyna 1991-2017,  Touring 1982-2016 & Trike 2009-2016, Deluxe oil cooler kit

Jagg oilcooler All HD 55-up Black

• Category: Oil Cooler
