Kibblewhite Intake Valve and Spring Kit - 5.00mm - 96-96450
Produktinfo
- Artikelnummer
- 09262736
- Herstellernummer
- 96-96450
- Position
Upgrade your valvetrain with the Kibblewhite Stainless Conversion Valve and Spring Kit. This kit provides a cost-effective and high-performance alternative to OEM titanium components, significantly extending the lifespan of your intake system.
Description

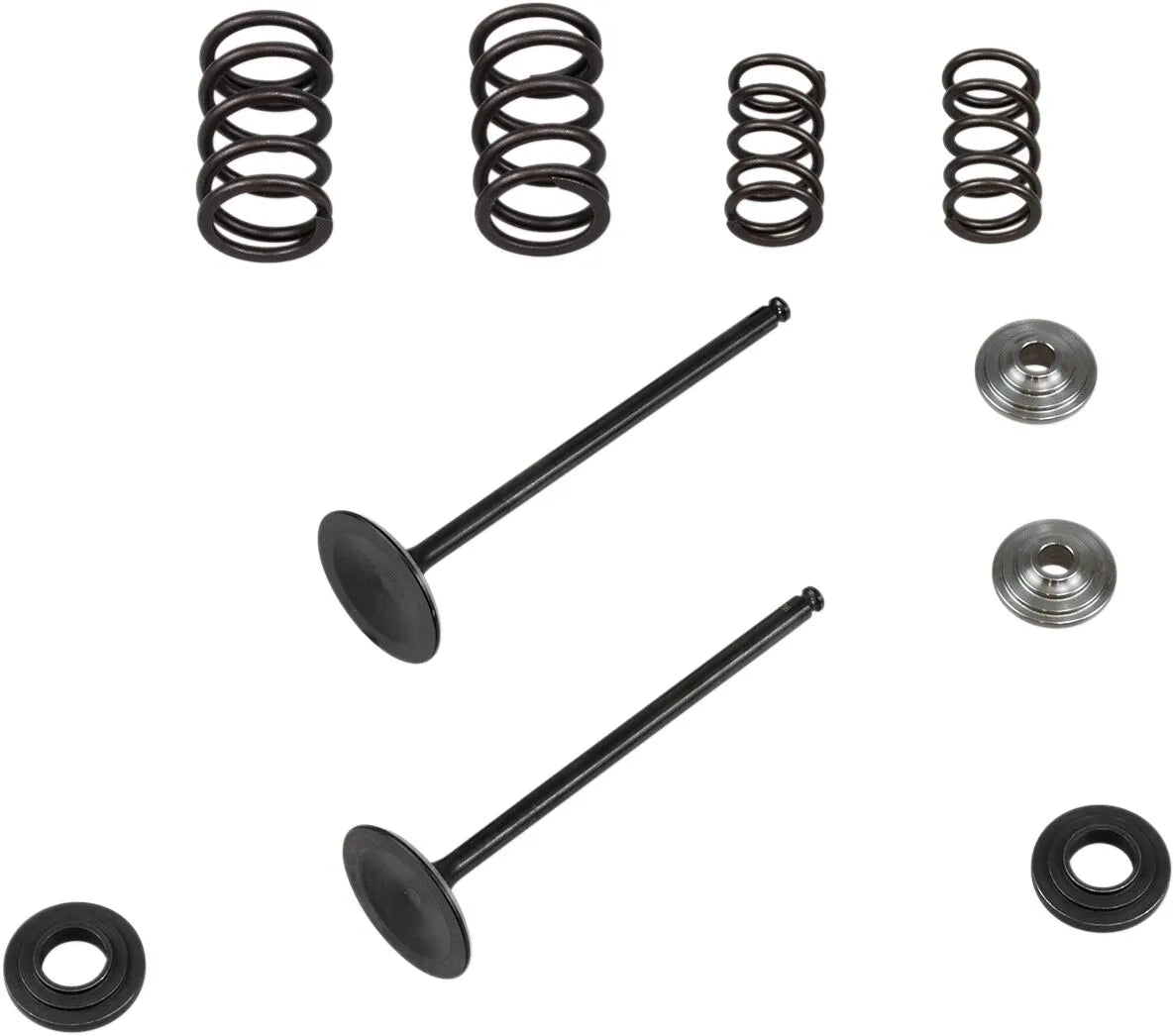

The Kibblewhite Intake Stainless Conversion Valve and Spring Kit allows you to convert your head to utilize long-life stainless steel Black Diamond intake valves. This conversion extends the life of the valvetrain and intake components by as much as 4x compared to OEM titanium parts. Each kit includes forged one-piece stainless steel intake valves, wound chrome-silicon heat-treated wire valve springs, ultra-light titanium retainers, and hardened steel bases. All components are meticulously designed and engineered for specific applications, using Finite Element Analysis (F.E.A.) software, as well as proprietary camshaft analysis and spring design software. Experience enhanced durability and performance with this precision-engineered valve and spring kit.
Features & highlights
- Converts your head to long-life stainless steel Black Diamond intake valves.
- Extends valvetrain and intake component life up to 4x over OEM titanium.
- Features forged one-piece stainless steel intake valves for superior strength.
- Includes wound chrome-silicon heat-treated wire valve springs for optimal performance.
- Ultra-light titanium retainers reduce valvetrain mass for improved response.
- Hardened steel bases provide a durable foundation for the valve springs.
- Precision-engineered using F.E.A. software and proprietary design tools.
Technical specifications
- Brand: KIBBLEWHITE
- Product Name: Valve and Spring Kit
- Application: Intake
- Valve Material: Black Diamond™ Stainless
- Valve Head Diameter: 30.95 mm
- Valve Stem Diameter: 5.00 mm
- Valve Length: 3.910"
- Tulip Angle: 15°
- Collar Material: Titanium
- Spring Lift: 0.425"
- Spring Open Pressure: 169 lb
- Spring Seat Pressure: 60 lb
- Valve Seat Height: 1.175"
- Type: Conversion
Important to know
This stainless steel conversion kit includes only the necessary components to convert your head to stainless steel Black Diamond intake valves.
- Brand
- KIBBLEWHITE
- Vendor part number
- 96-96450
- Product name
- Valve and Spring Kit
- Tulip angle
- 15°
- Stem diameter
- 5.00 mm
- Head diameter
- 30.95 mm
- Length
- 3.910"
- Valve seat height
- 1.175"
- Spring open pressure
- 169 lb
- Spring seat pressure
- 60 lb
- Spring lift
- 0.425"
- Collar material
- Titanium
- Application
- Intake
- Material
- Black Diamond™ Stainless
- Type
- Conversion
- Units
- Kit
