Knipex Multicrimp Crimping Pliers - 250mm - 973302

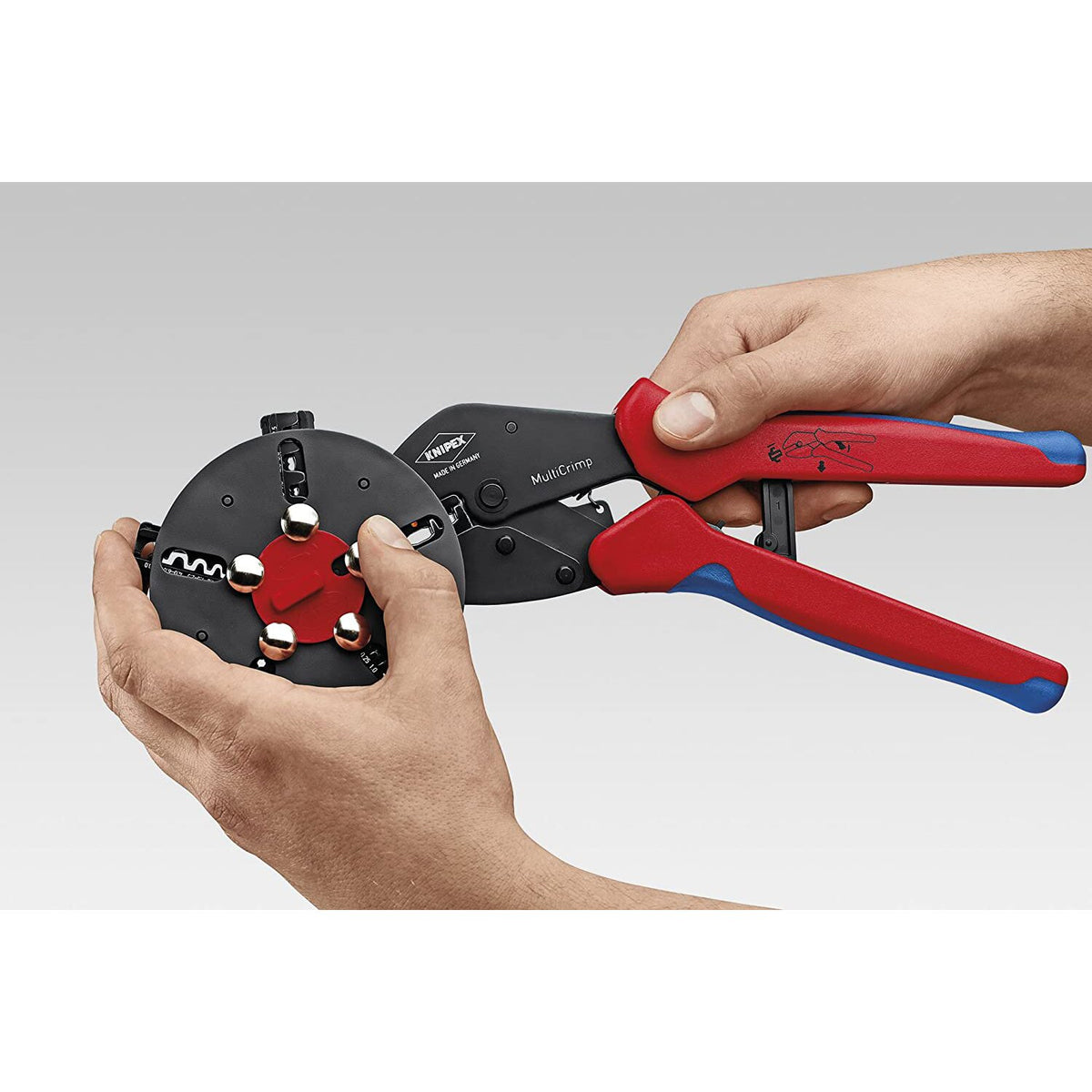

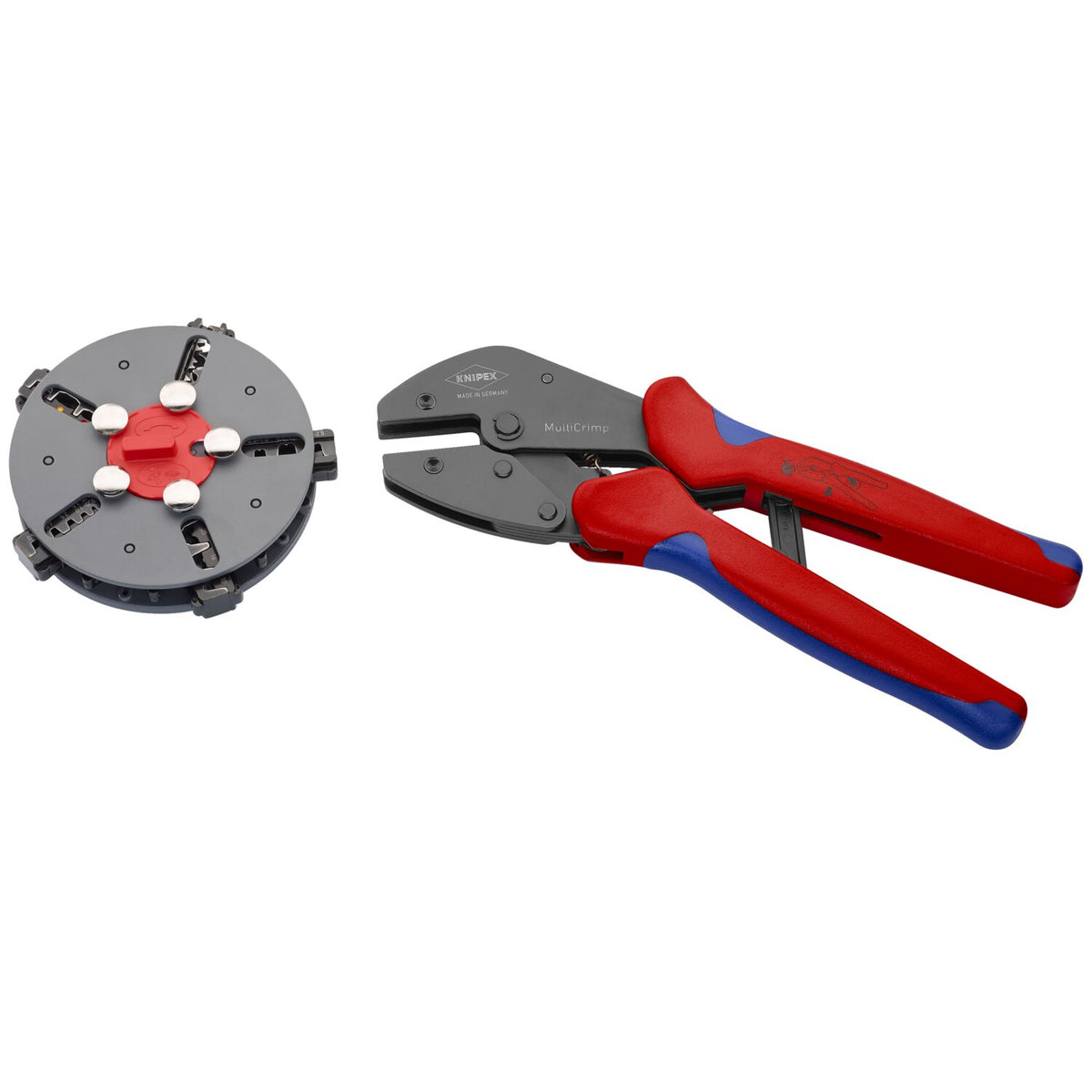

Powerful crimp pliers with 5 interchangeable crimp dies for most common crimping applications. The precision crimping dies allow quick changes without requiring additional tools. Dies are sorted, stored and well protected in the round plastic magazine that is fibreglass reinforced and can be carried on a belt. This tool offers excellent, repetitive, professional quality crimps, with an integral lock (self-releasing mechanism). Used for non-insulated crimp terminals, tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 and non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267. Wiring capacity 0.5 to 10.0 mm² and 20-7 AWG. Comes with multi-component grips and is manufactured of chrome vanadium electric steel in a black burnished, oil-hardened, quality. 250mm long, weight 870 gram. Compatible with: - Non-insulated open plug type connectors (plug width 4.8 + 6.3 mm) 0.5mm3 - 6,0mm3, 20 - 10 AWG with 3 crimping positions. - Insulated terminals, plug connectors + butt connectors 0,5 - 6,0mm3 and 20 - 10 AWG with 3 crimping positions. - Wire end sleeves 0,5 - 6,0mm2,and 23 - 10 AWG with 5 crimping positions. - Wire end sleeves 10, 16, 25mm2 and 7, 5, 3 AWG with 3 crimping positions.

• Category: Crimping tools
• Manufacturer part number: 973302
