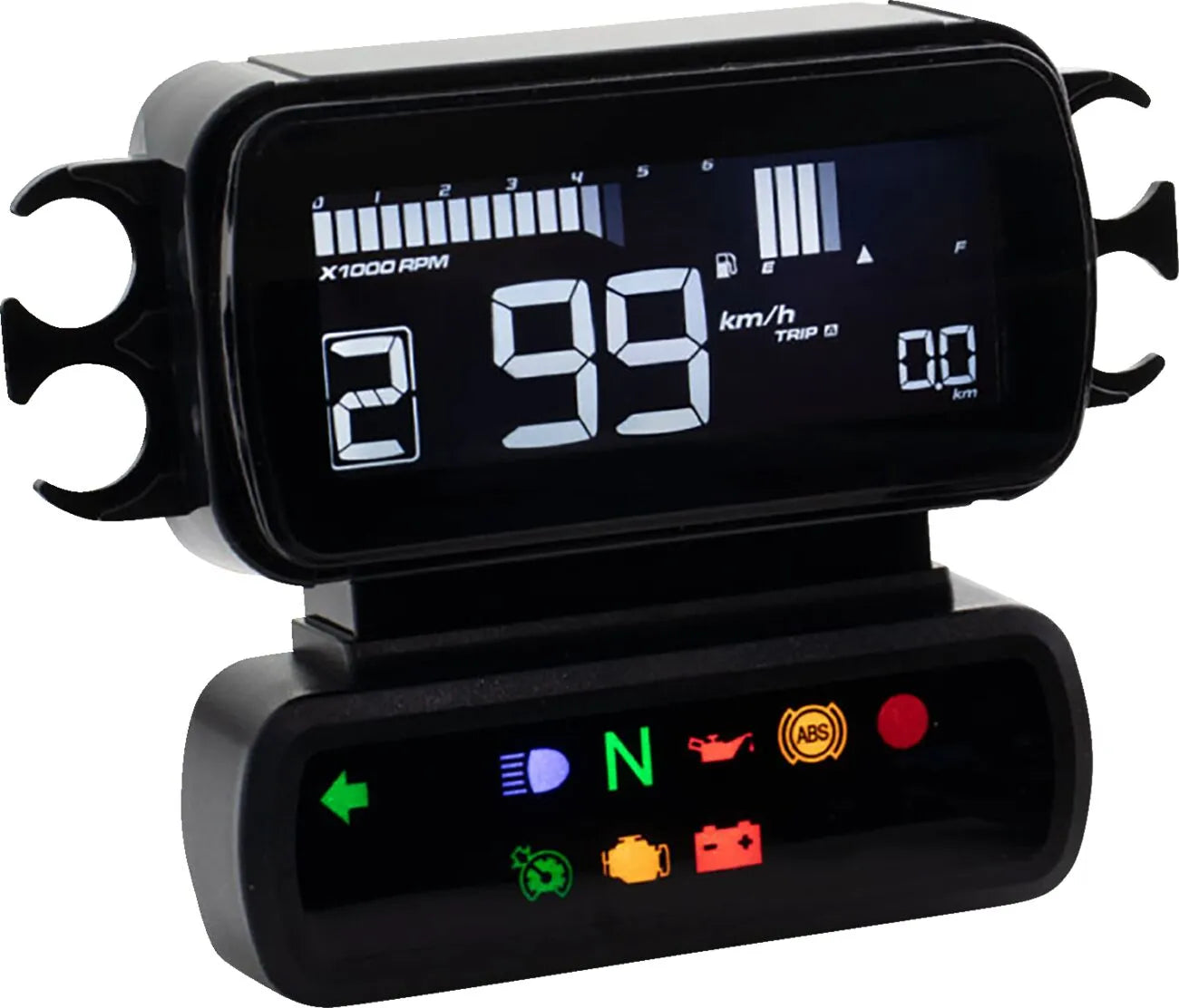

Koso D2 Digital Multi-Function Gauge - mph - BA080010

Upgrade your motorcycle's instrumentation with the Koso North America D2 LCD Multifunction Meter. This high-quality, plug-and-play meter provides a comprehensive overview of your bike's vital statistics in a sleek, customizable package.

Description

The Koso D2 meter is designed to enhance both the functionality and aesthetics of your motorcycle. Its 8-color changeable LCD display allows you to personalize the meter's appearance, while its comprehensive functionality provides critical information at a glance. The tachometer/speedometer combination includes a programmable shift light and gear indicator, ensuring optimal performance. Monitor engine temperature, battery voltage, and tire pressure, along with a full array of indicator lights to stay informed about your bike's condition. The meter seamlessly integrates with your motorcycle's CANBUS system via a direct plug-in to the stock harness, simplifying installation. Designed to mount below a cutout top handlebar clamp, achieving a clean and streamlined look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application). With its robust construction and user-friendly interface, the Koso D2 is an ideal addition to any motorcycle.

Features & highlights

• Enhance your motorcycle with a high-quality, plug-and-play LCD multifunction meter.

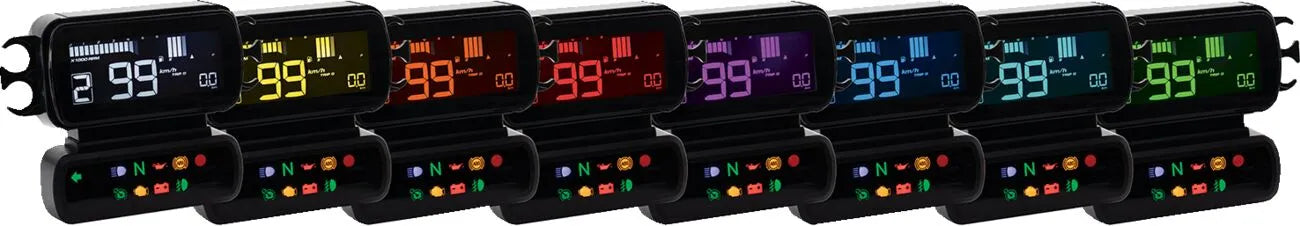

• Customize the display with an 8-color changeable LCD for personalized aesthetics.
• Monitor speed, RPM, gear position, engine temperature, voltage, and tire pressure.
• Programmable shift light helps optimize performance and prevent over-revving.
• Direct plug-in to the stock harness simplifies installation and ensures seamless integration.

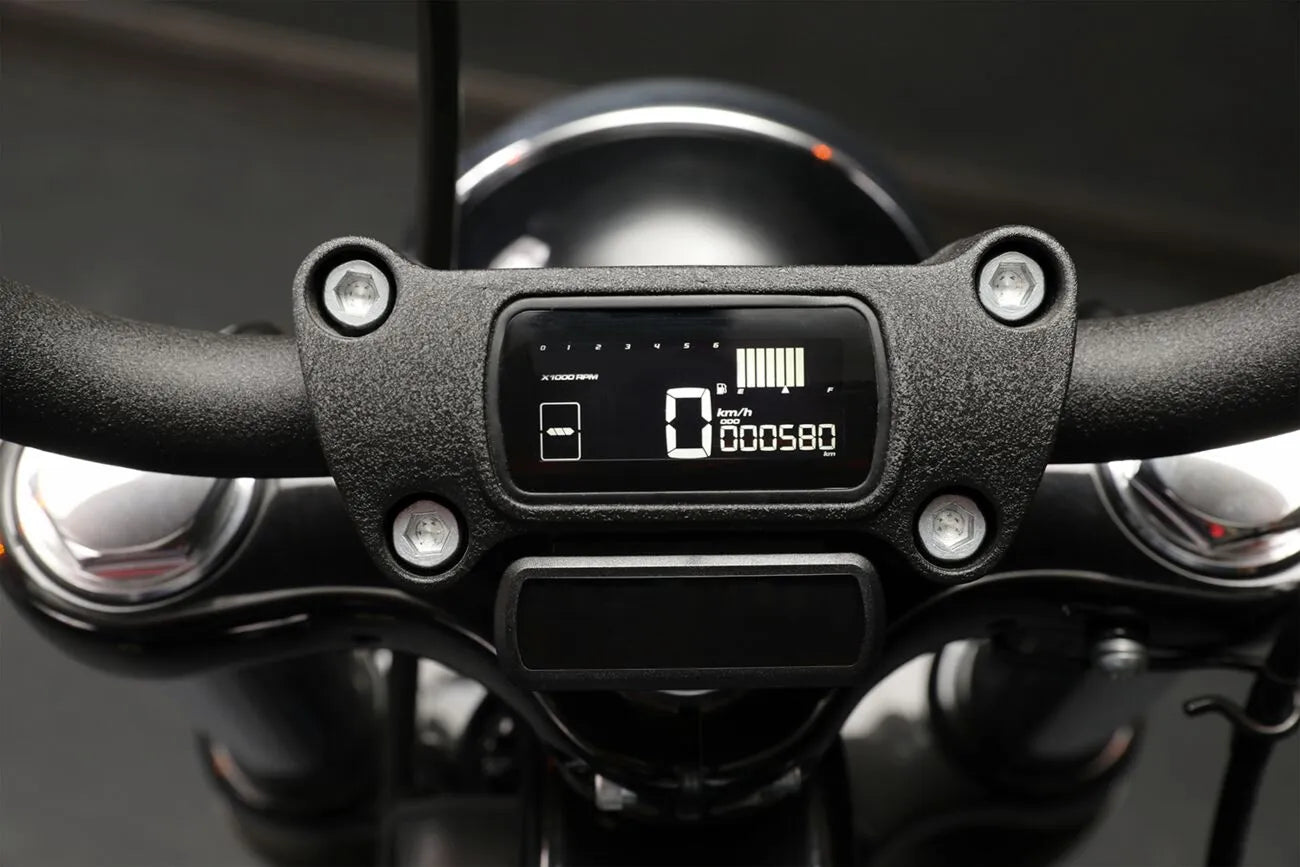

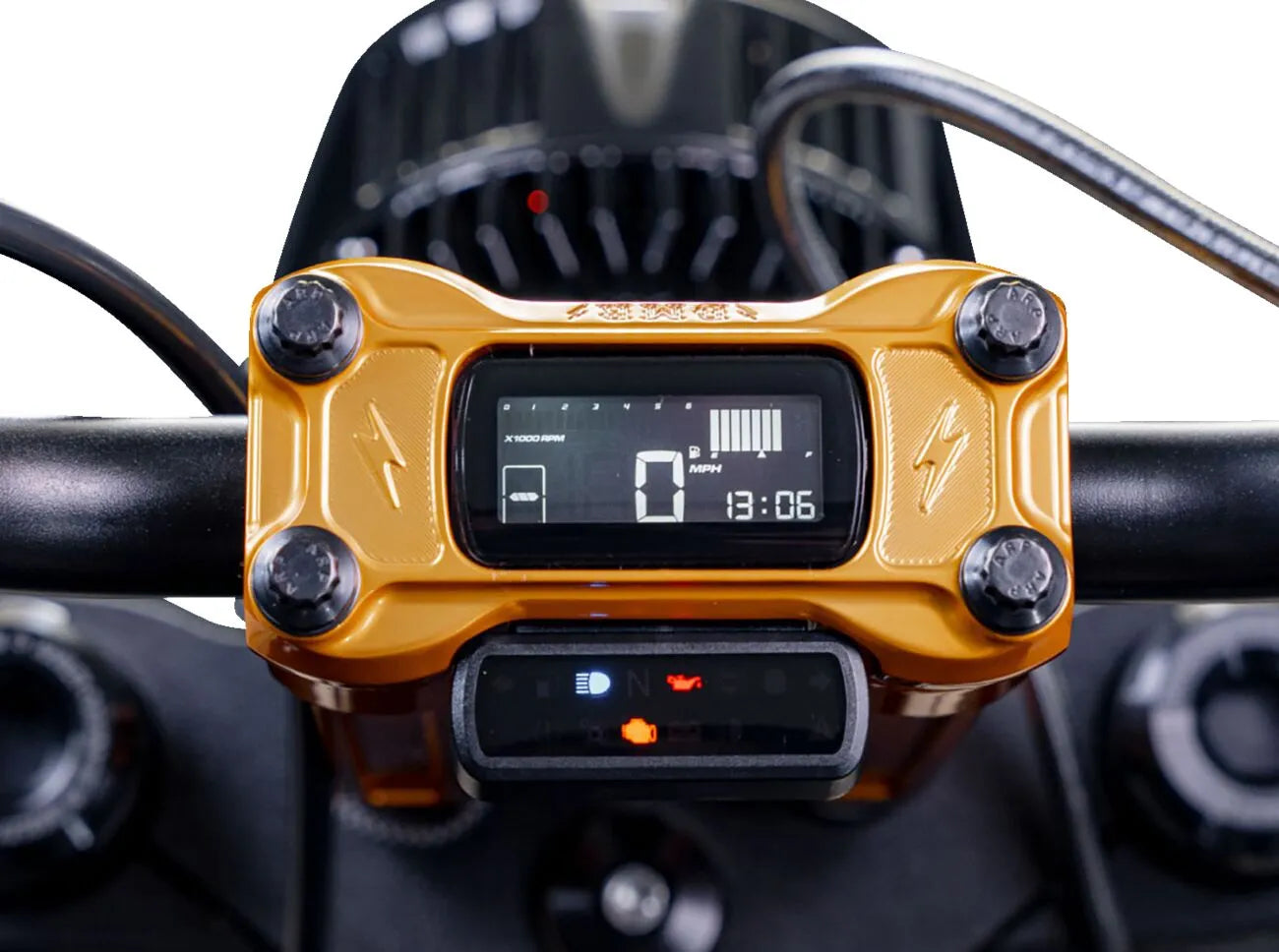

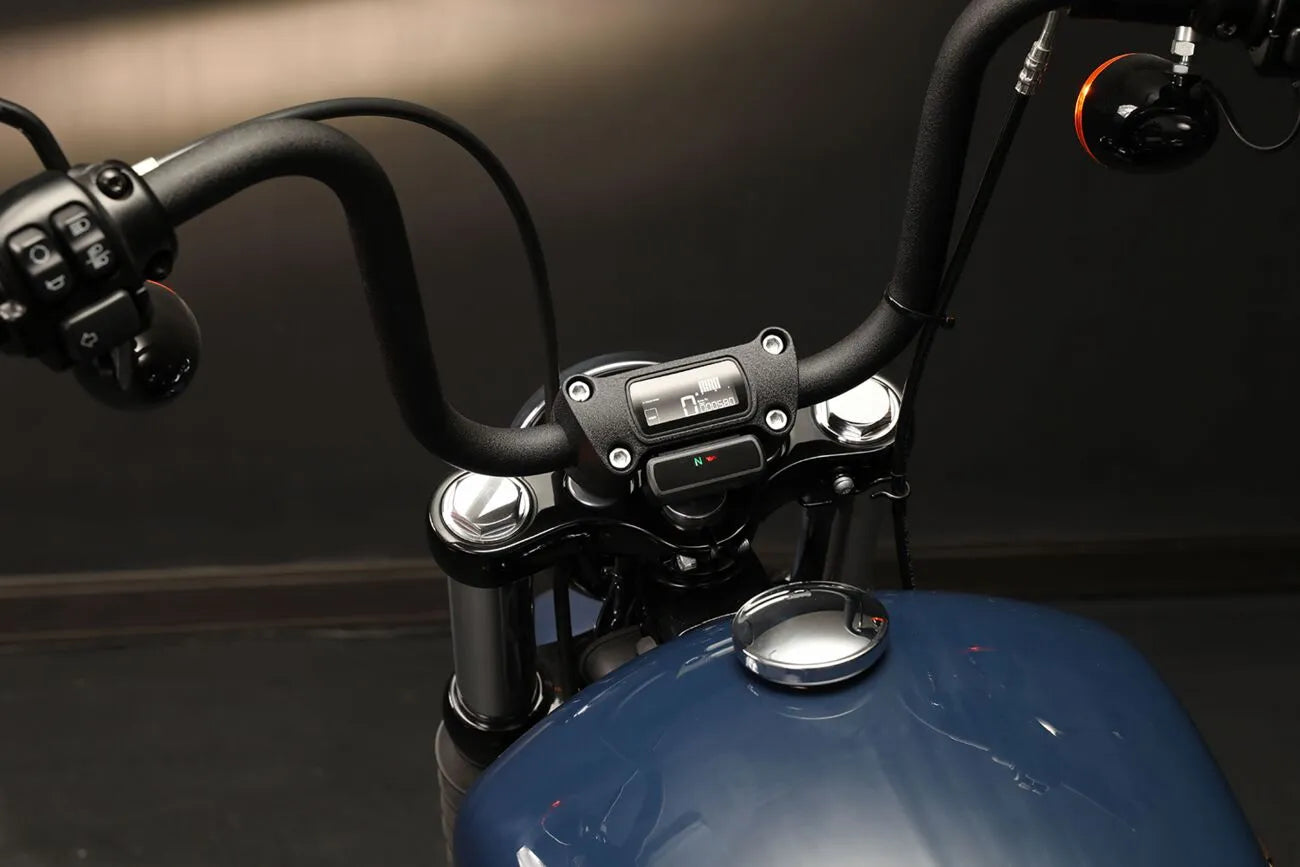

• Sleek design mounts below the top handlebar clamp for a clean, custom look.

Technical specifications

• Brand: Koso North America
• Type: Multi-Function Speedometer
• Display range: 0-124 mph (0 kph - 199 kph)
• Effective temperature range: -4°F-185°F (-20°C-85°C)
• Battery voltage: 12VDC
• Length: 3-7/16" (88 mm)
• Width: 1-1/16" (27 mm)
• Depth: 2-5/8" (66 mm)
• Face Color: Black
• Housing Color: Black

Important to know

Installation images are for demonstration purposes only; the mounting plate is not included. XL models may require the separate purchase of a fuel level sensor kit (OEM PART #6120008) for the fuel meter to function properly. Depending on your application, a handlebar riser kit with a gauge cutout or a gauge relocation kit may be required.
