Koso D2 Digital Multi-Function Gauge - mph - BA080020

Upgrade your motorcycle's instrumentation with the Koso North America D2 LCD Multifunction Meter. This high-quality, plug-and-play meter seamlessly integrates with your bike's CANBUS system, providing a wealth of information in a sleek, modern package. Monitor vital engine stats and customize the display to your preference with its 8-color changeable LCD.

Description

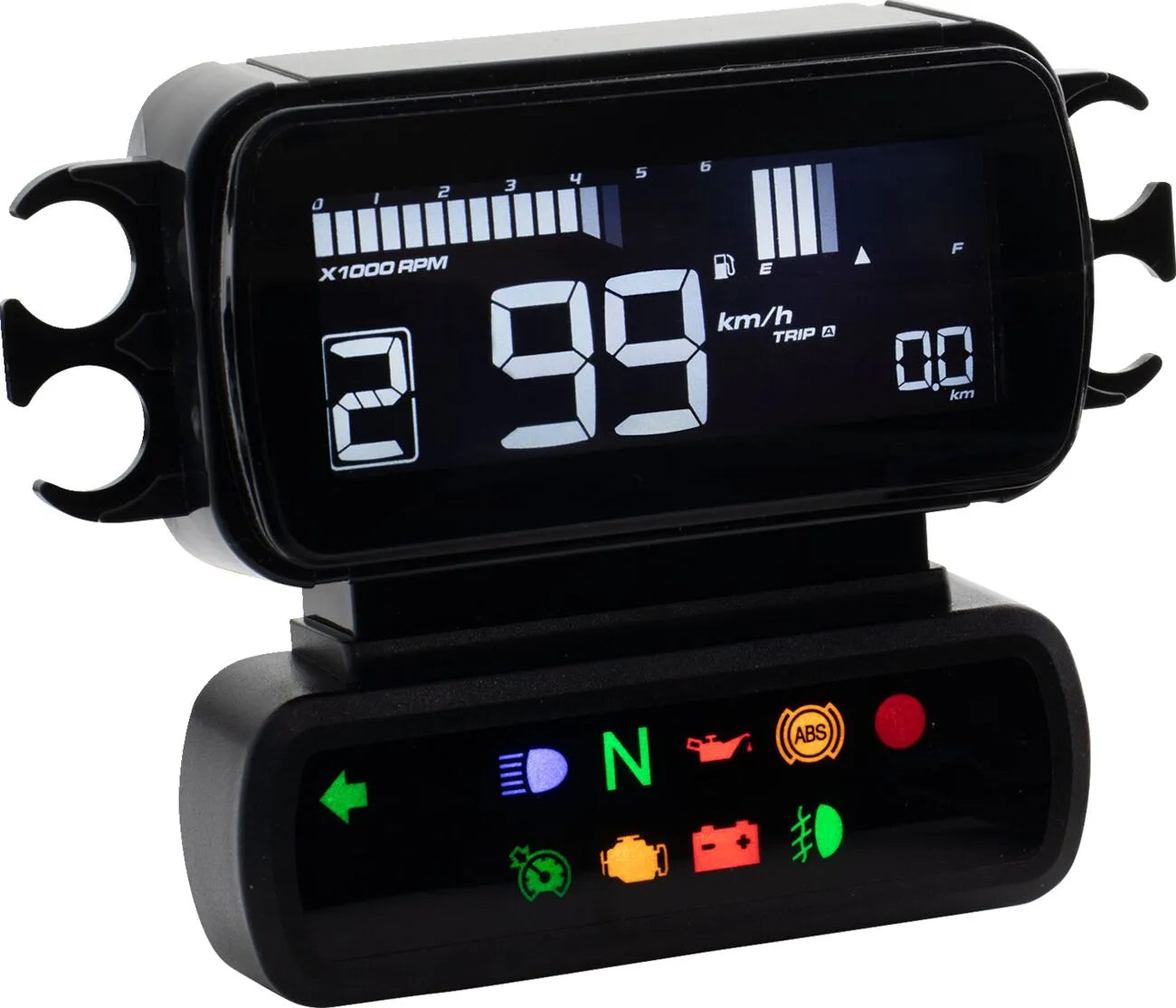

The Koso D2 LCD Multifunction Meter is more than just a speedometer. It combines tachometer and speedometer functions with a programmable shift light and gear indicator, putting all essential performance data at your fingertips. The meter also displays engine temperature, battery voltage, and tire pressure, alongside a comprehensive system of indicator lights to keep you informed about your bike's health. Designed for a clean look, it mounts below a cutout top handlebar clamp (handlebar riser or relocation kit may be needed depending on application). With a display range of 0-124 mph and an effective temperature range of -4°F to 185°F (-20°C to 85°C), this meter is built for performance in diverse conditions. Installation is simplified thanks to its direct plug-and-play compatibility with the stock harness.

Features & highlights

• High-quality, plug-and-play meter for easy installation.
• 8-color changeable LCD display for personalized viewing.
• Tachometer, speedometer, gear indicator, and programmable shift light all in one.
• Displays engine temperature, battery voltage, and tire pressure.
• Directly plugs into the stock harness and works with CANBUS systems.

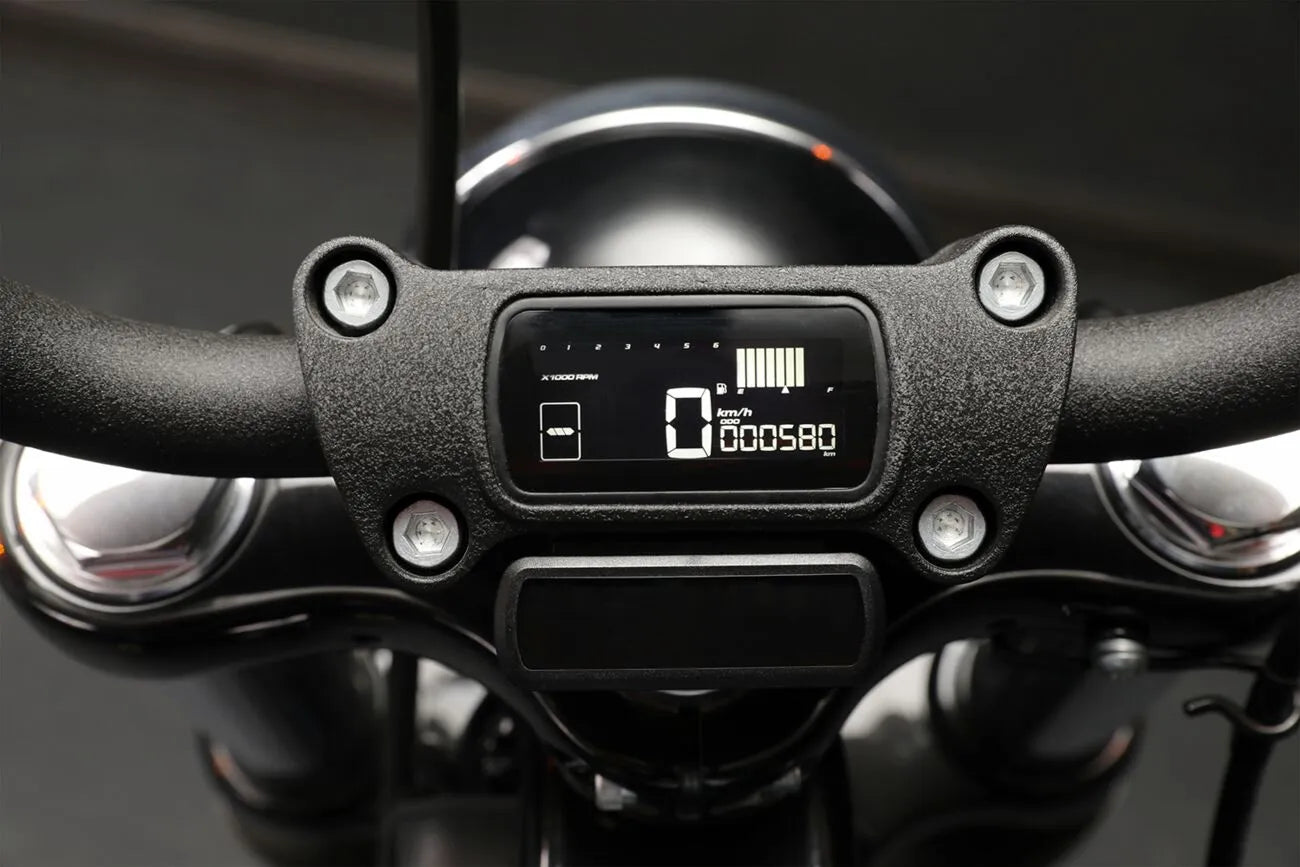

• Sleek design mounts below the handlebar clamp.

Technical specifications

• Brand: Koso North America
• Product Name: Gauge
• Type: Multi-Function Speedometer
• Display Range: 0-124 mph
• Calibration: 0 kph - 199 kph
• Operating Voltage: 12VDC
• Effective Temperature Range: -4°F-185°F (-20°C-85°C)
• Length: 3-7/16" (88 mm)
• Width: 1-1/16" (27 mm)
• Depth: 2-5/8" (66 mm)
• Face Color: Black
• Housing Color: Black

Important to know

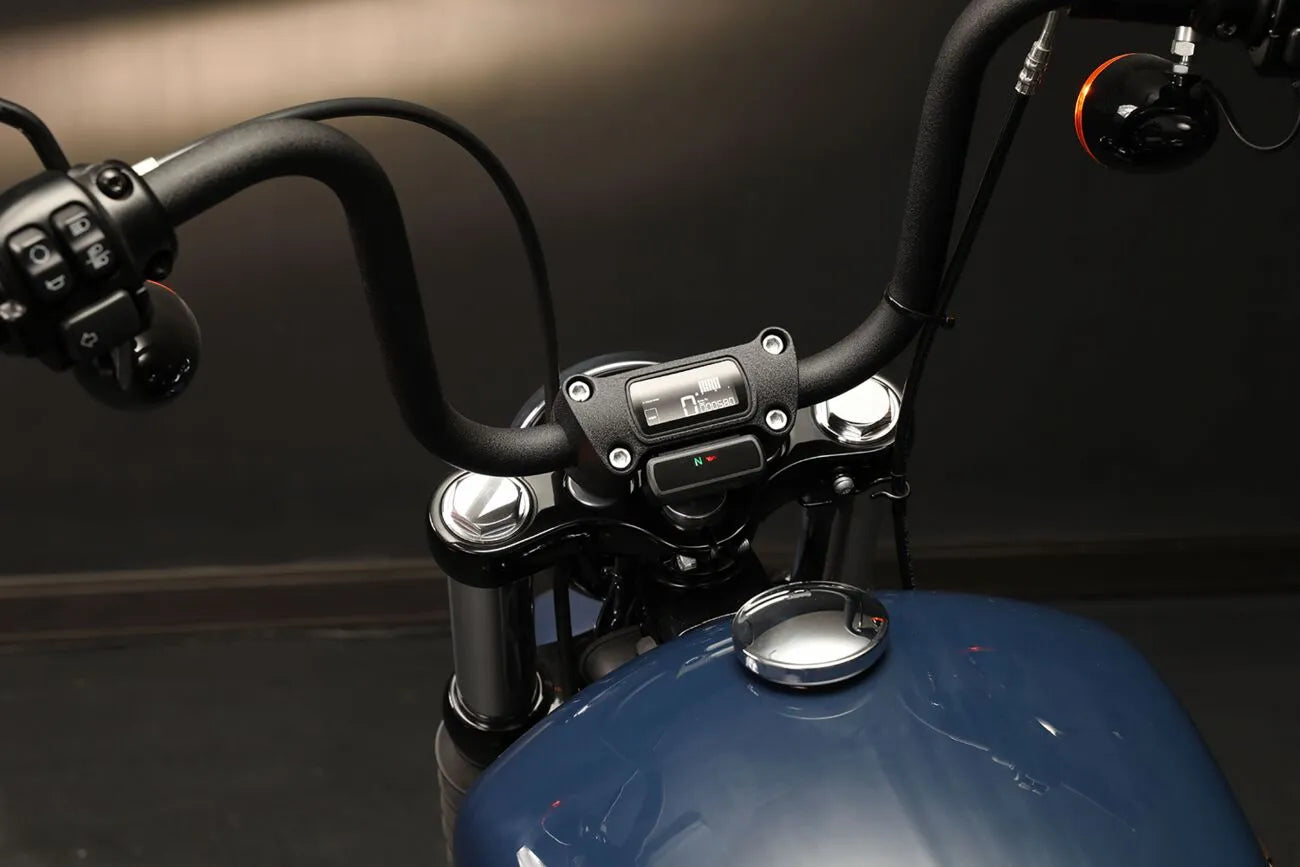

This kit includes 1 x LCD Meter, 1 x Meter adapter box, and 1 x Zip tie (4.6 x 300mm). Please note that installation images are for demonstration purposes only; the mounting plate is not included. For XL models, a separate fuel level sensor kit (OEM PART #6120008) may be required for the fuel meter to function correctly.
