Koso North America Hd-03 Multifunction Speedometer
Koso North America Hd-03 Multifunction Speedometer
About this product
About this product
Upgrade your motorcycle's instrumentation with the Koso North America HD-03 multifunction speedometer. This all-in-one gauge kit provides a wealth of information in an easy-to-read, customizable display. Improve your riding experience with accurate data at a glance.
Description

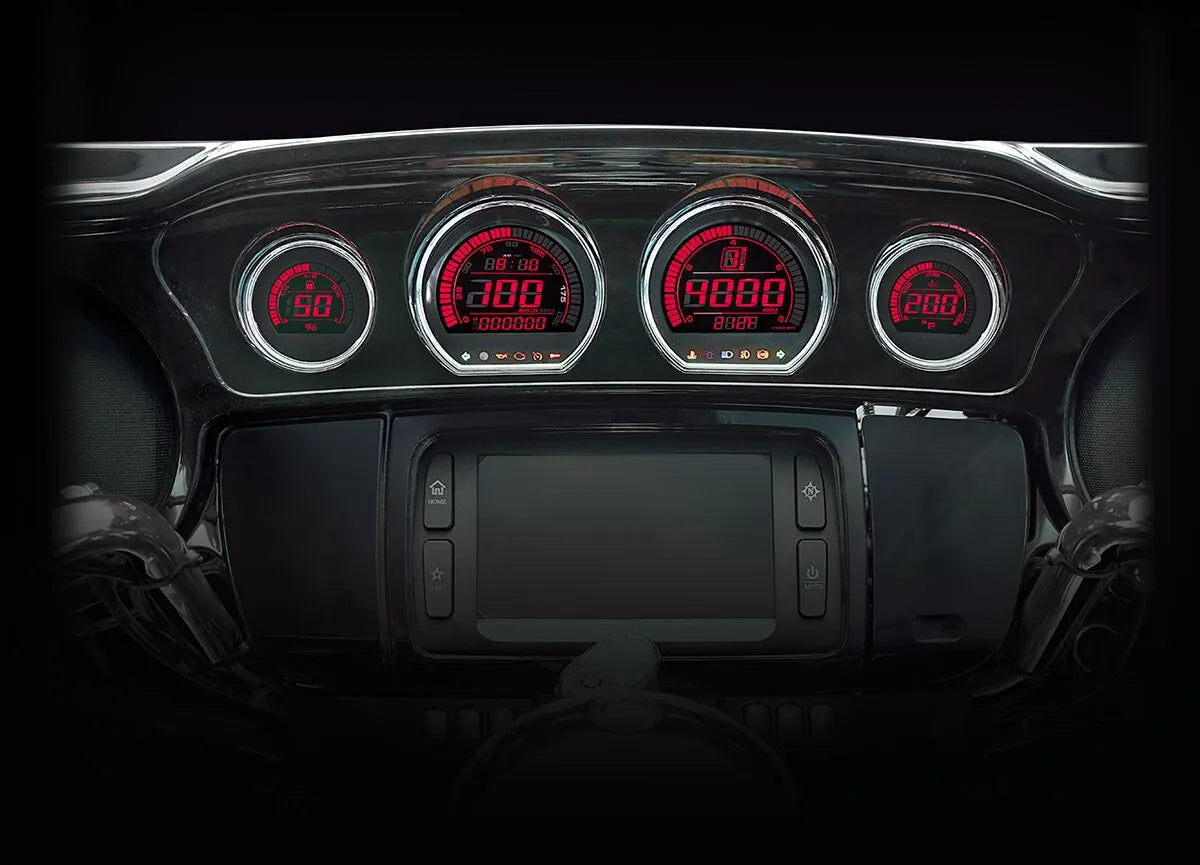

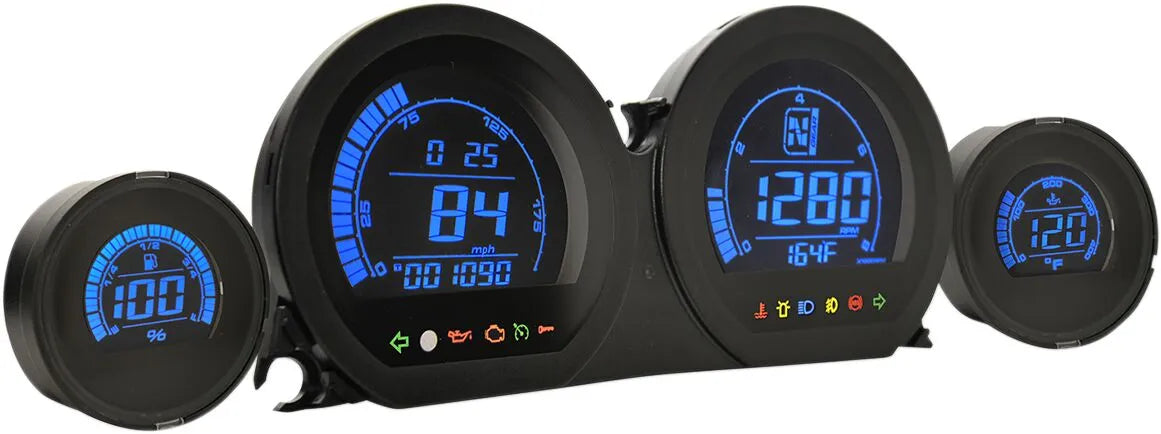

The Koso North America HD-03 is a direct, plug-and-play replacement for your OEM dash, utilizing existing connectors for a seamless installation. The color-changeable LCD display allows you to personalize the look and feel of your motorcycle's instrument panel. This comprehensive gauge kit includes a multifunction speedometer, tachometer, odometer, gear indicator, tripmeter, engine temperature gauge, oil temperature gauge, and fuel level gauge. The HD-03 also features indicator lights for oil, engine warning, high beam, fog light, and turn signals, ensuring you have all the essential information readily available. Monitor your speed, RPM, and fuel consumption with precision. The Koso HD-03 provides a significant upgrade in functionality and aesthetics, making it an ideal addition to any motorcycle. For models equipped with air suspension, an optional air pressure sensor is available separately to provide even more data at your fingertips.
Features & highlights
- Direct plug-and-play installation using OEM connectors.
- Color-changeable LCD display for personalized customization.
- Multifunction speedometer, tachometer, and odometer for comprehensive data.
- Integrated gear indicator and tripmeter for enhanced riding experience.
- Engine and oil temperature gauges for monitoring vital engine parameters.
- Fuel level gauge with average fuel consumption and remaining mileage calculations.
- Indicator lights for essential warnings and signals.
Technical specifications
- Brand: Koso North America
- Product Name: Gauge Kit
- Type: Odometer, Tripmeter, Temperature Gauge, Multi-Function Speedometer, Shift Light, Tachometer, Digital Fuel Gauge
- Speedometer: 0 - 199 MPH
- Maximum Speed Record: 0 - 199 MPH
- Overspeed Warning: 19 - 199 MPH
- Tachometer: 0 - 9,999 RPM
- RPM Shift Light: 2,000 - 8,000 RPM
- Maximum RPM: 0 - 8,000 RPM
- Odometer: 0 - 999,999 miles
- Tripmeter A/B: 0 - 9,999 miles
- Mileage Maintenance: 300 - 10,000 miles
- Oil Temperature Meter: 32° F - 248° F
- Maximum Oil Temperature Record: 32° F - 248° F
- Effective Temperature Range: 14° F - 140° F
- Fuel Meter: 6 levels (1 level = 16.6%)
- Fuel Tank Volume: Off/1 - 9.9 US Gallons
- Average Fuel Consumption: Off/MPG
- Remaining Mileage: 0 - 6,249 miles
- Volt Meter: DC 8V - 18V
- Effective Voltage: DC 12V
- Face Color: Black
- Housing Color: Black
- Depth: 2.00" / 1.75"
- Length: 2.75" / 10.625"
- Width: 3.75" / 2.75"
Important to know
- Optional air pressure sensor for models equipped with air suspension is available separately.
Shipping & Return
Shipping & Return
Free shipping to GLS parcel shop parcel box for purchases over DKK 1,000.
GLS home delivery costs DKK 59.
We do our best to ship your order as quickly as possible. All orders are generally packed within 24 hours on weekdays.
There is a 14-day return policy. Read more
Specifications
KOSO NORTH AMERICA
BA064900
Gauge Kit
51,00 mm (2,00"), 44,00 mm (1,75")
Black
95,00 mm (3,75"), 70,00 mm (2,75")
70,00 mm (2,75"), 270,00 mm (10,625")
Odometer, Tripmeter, Temperature Gauge, Multi-Function Speedometer, Shift Light, Tachometer, Digital Fuel Gauge
Kit
