Legend Suspension AIR Shocks - 13.625" - Black - 1311-0189

Experience a superior ride quality and enhanced handling with the Legend Suspension Air Suspension Kit designed specifically for M-Eight Trike models. This kit offers on-the-go adjustability, allowing you to customize your ride for optimal comfort and performance in any situation.

Description

The Legend Suspension Air Suspension Kit elevates your M-Eight Trike's performance by maximizing rear ride height with its 13.6" length, eliminating the need for a lift kit. This system levels out trikes that sit low from the factory, significantly reducing muffler dragging and scuffing when navigating challenging terrains. The reduced trail in the front end provides easier steering, enhancing maneuverability. Featuring exclusive Aramid Fiber air spring technology, this suspension system offers adjustable spring rates, maximizing wheel travel, and adapting to your desired ride height. Spherical bearings on both top and bottom mounting points ensure easy installation and precise alignment. The Type III hard-coat black anodized machined aluminum bodies, coupled with a low friction sealing system and sliding bearings, enhance performance and feel. A high-flow piston and deflective disc valving work in tandem for improved fluid flow management and controlled performance. This kit includes a prewired air compressor with model-specific mounting and a complete wire harness with easy Deutsch connections, along with an OEM-style black handlebar-mounted control for convenient adjustments. Assembled by hand in Sturgis, SD USA, this suspension kit represents unparalleled quality and performance. Upgrade your trike today and experience the Legend difference.

Features & highlights

• Maximizes rear ride height with a 13.6" length on '17 and newer trikes, eliminating the need for a lift kit.
• Levels out trike models that sit low in the rear, reducing dragging and scuffing of mufflers.
• Enhances steering with less trail in the front end for improved maneuverability.
• Features exclusive Aramid Fiber air spring technology for adjustable spring rates and maximized wheel travel.
• Offers easy installation and alignment with spherical bearings on both top and bottom mounting points.

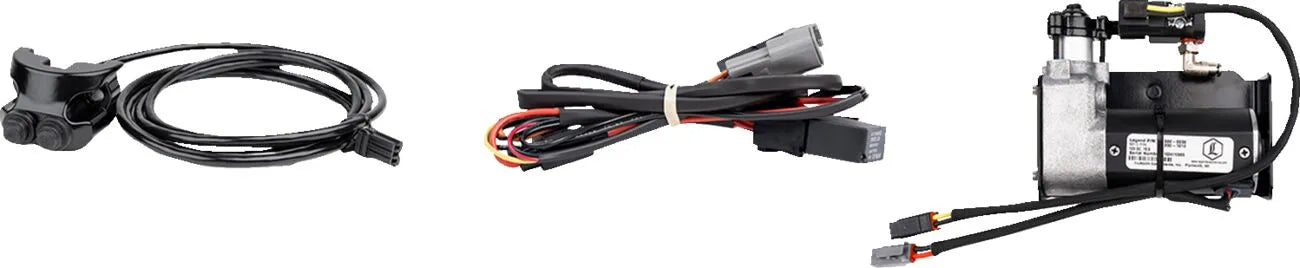

• Includes prewired air compressor, complete wire harness with Deutsch connectors, and handlebar-mounted control for on-the-go adjustability.
• Assembled by hand in Sturgis, SD USA, ensuring top-notch quality and performance.

Technical specifications

• Brand: Legend Suspension
• Adjustment Type: Adjustable Air Spring
• Color/Finish: Black, Anodized
• Extended Length: 13.625" (346.00 mm)
• Material: Billet Aluminum, Aramid Fiber
• Mounting Position: Rear
• Product Name: Shock Absorber
• Type: Air Twin-Tube
• Units: Pair

Important to know

Optional chrome handlebar-mounted control (Part # 0616-0207) and fairing-mounted matching gauges (Part #'s 2212-0484, 2212-0485, 2212-0492, 2212-0493, 2212-0494) are sold separately.
