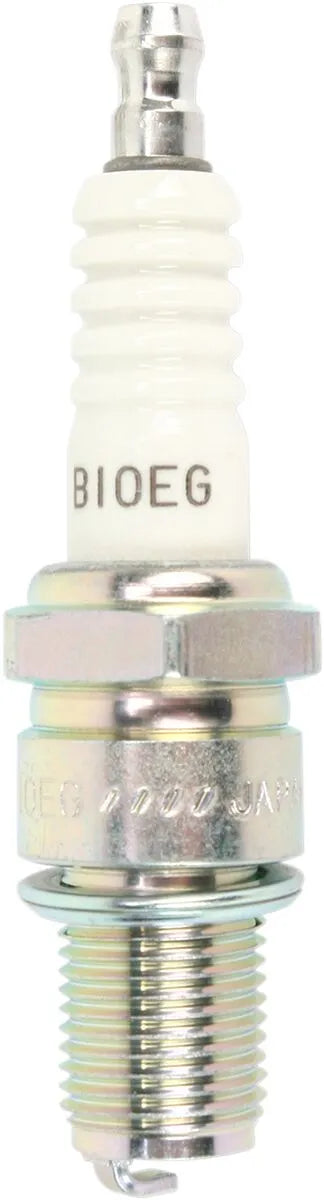

NGK B10EG Spark Plug - 3630
Produktinfo
- Artikelnummer
- B10EG
- Herstellernummer
- 3630
- Position
Upgrade your engine's performance with the NGK B10EG Spark Plug. Designed for enthusiasts and professionals, this spark plug delivers reliable ignition and enhanced engine efficiency. Experience improved throttle response and consistent power output across the RPM range.
Description
The NGK B10EG Spark Plug is engineered for optimal combustion and long-lasting performance. Featuring trivalent metal plating, it offers superior anti-corrosion and anti-seizing properties, ensuring easy installation and removal. The pure alumina silicate ceramic insulator provides exceptional strength and heat transfer, preventing overheating and maintaining stable operating temperatures. Its copper core efficiently removes heat, preventing pre-ignition and fouling. Triple seals prevent leakage, guaranteeing consistent compression and power. This non-resistor type spark plug is designed with corrugated ribs to prevent flashover, ensuring reliable ignition even under demanding conditions. The 14 mm thread size and 19.1 mm (3/4") thread reach make it compatible with a wide range of engines. With a heat range of 10, the NGK B10EG is designed to operate efficiently in high-performance applications.
Features & highlights
- Trivalent metal plating resists corrosion and seizing.
- Alumina silicate ceramic insulator enhances strength and heat transfer.
- Triple seals eliminate combustion gas leakage.
- Corrugated ribs prevent flashover for reliable ignition.
- Copper core maximizes heat dissipation.
- Non-resistor type for maximum spark energy.
Technical specifications
- Brand: NGK Spark Plugs
- Part Number: B10EG
- Center Electrode Type: Standard
- Center Electrode Projection: Non-Projected
- Electrode Tip Material: Nickel Alloy
- Ground Electrode Configuration: Single
- Ground Electrode Shape: Standard
- Heat Range: 10
- Hex Size: 20.6 mm (13/16")
- Spark Gap: 0.6 mm
- Terminal Configuration: Removable Nut
- Thread Reach: 19.1 mm (3/4")
- Thread Size: 14 mm
- Type: Non-Resistor
Important to know
Ensure the spark plug is properly gapped before installation. Always consult your engine's service manual for specific torque specifications.
- Brand
- NGK SPARK PLUGS
- Vendor part number
- 3630
- Product name
- Spark Plug
- Thread size
- 14 mm
- Thread reach
- 19,1 mm (3/4")
- Spark gap
- 0.6 mm
- Terminal configuration
- Removable Nut
- Heat range
- 10
- Hex size
- 20,6 mm (13/16")
- Ground electrode shape
- Standard
- Ground electrode configuration
- Single
- Electrode tip material
- Nickel Alloy
- Center electrode type
- Standard
- Center electrode projection
- Non-Projected
- Electrical resistance
- -
- Type
- Non-Resistor
- Units
- Each
