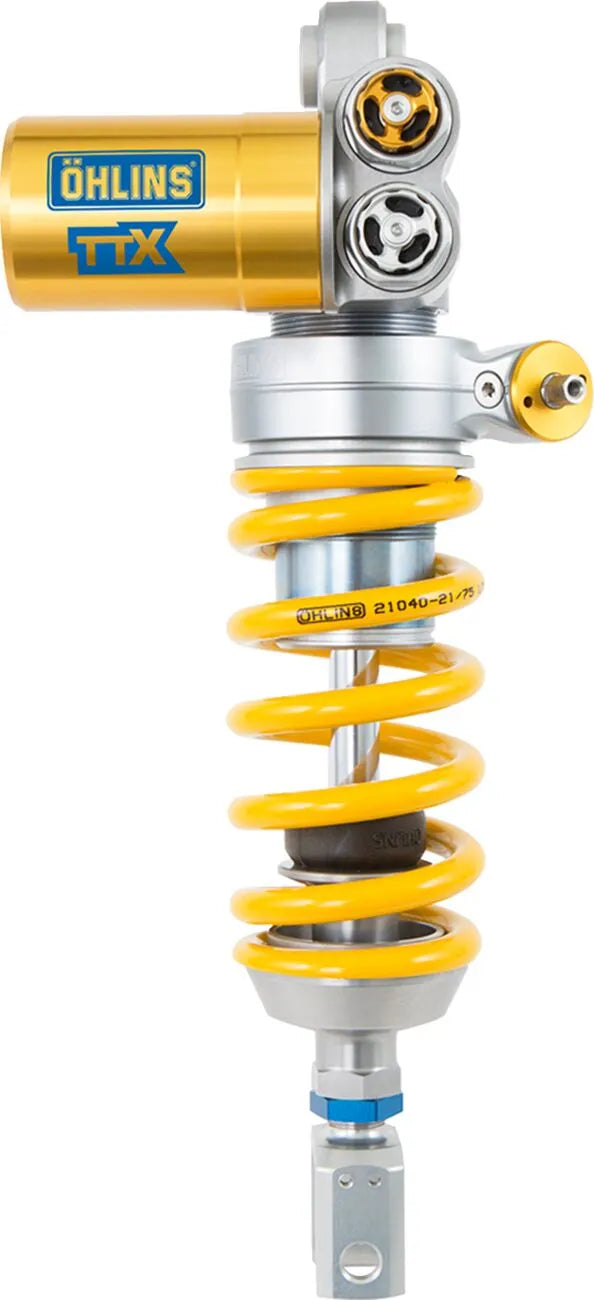

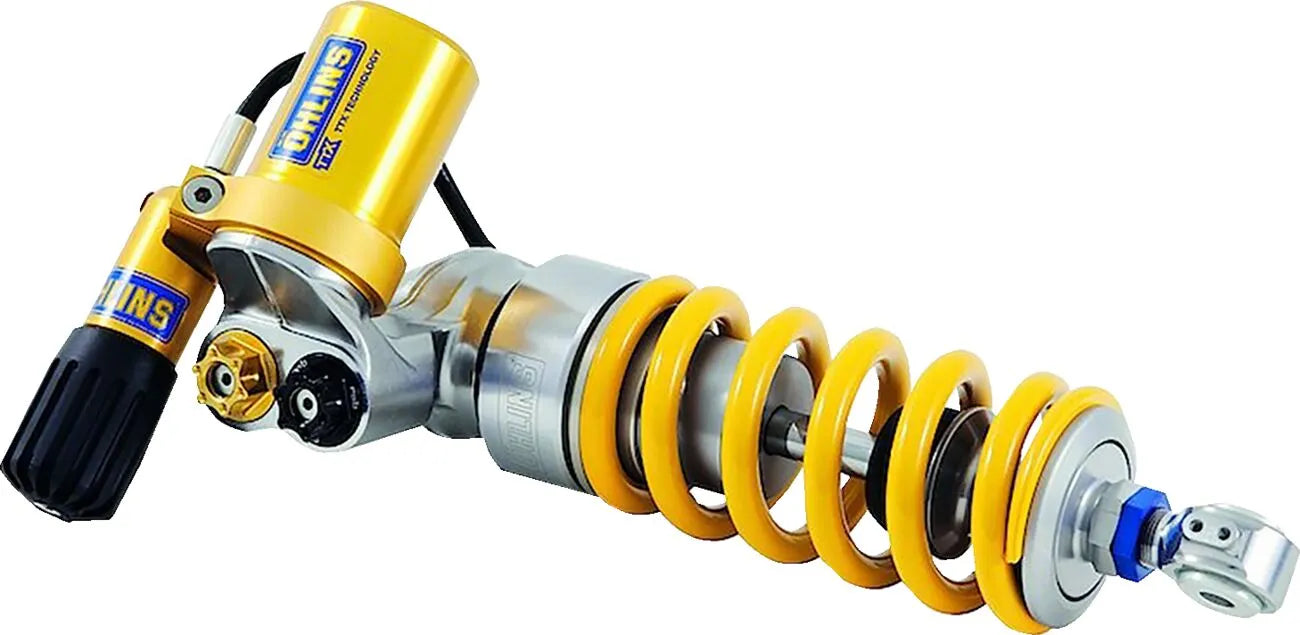

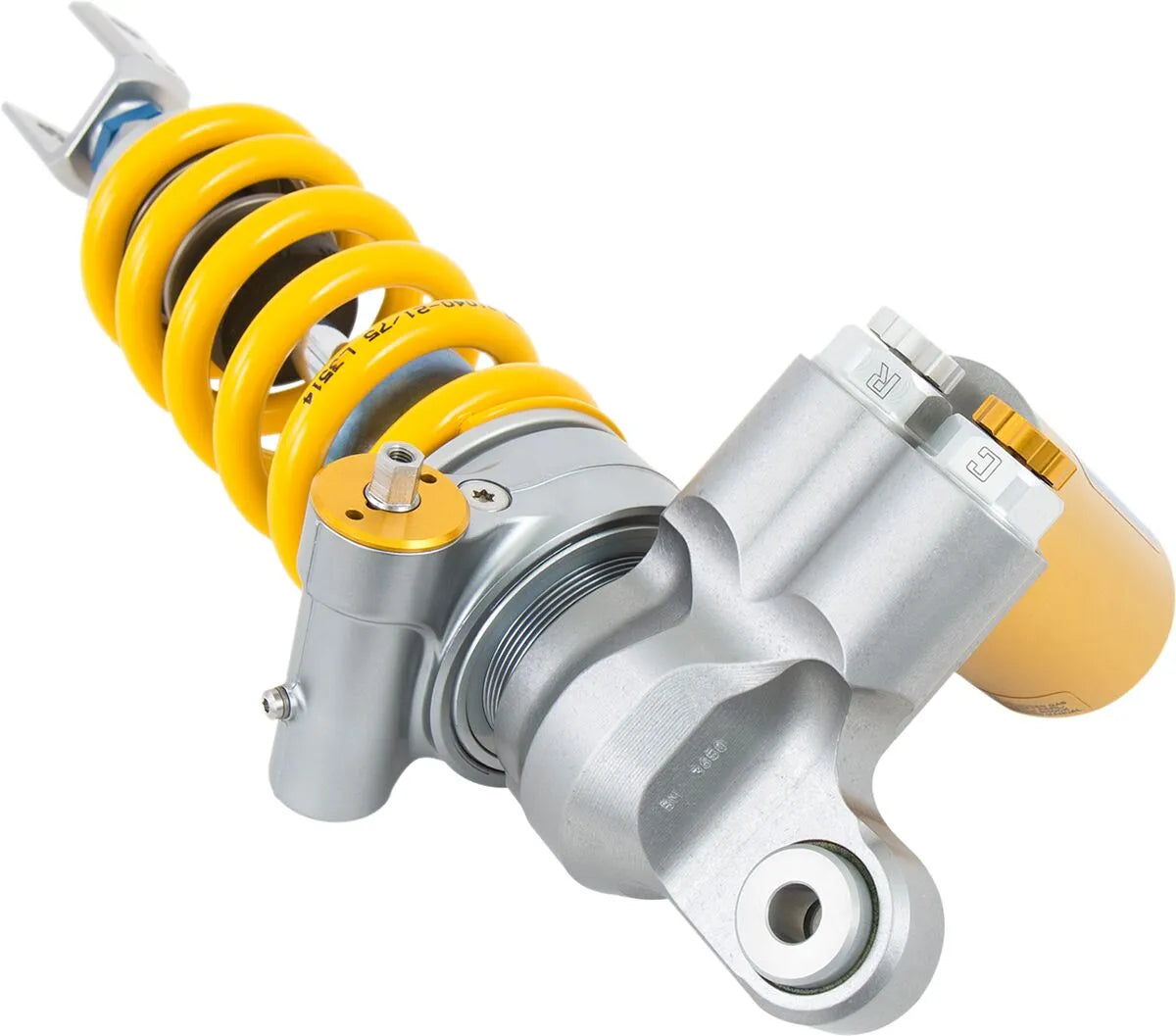

Ohlins Ttx Gp Shock Absorber

Experience superior handling and precise control with the Öhlins TTX GP Shock Absorber. This high-performance shock absorber utilizes Öhlins' renowned twin-tube technology to deliver consistent damping and exceptional rider feedback.

Description

The TTX GP features completely separated compression and rebound adjusters, eliminating the risk of cavitation and allowing for independent fine-tuning. Updated needle profiles and an improved design ensure optimal oil flow and volume control, resulting in more precise and consistent damping across a wider range of preload and compression adjustment. The redesigned 36 mm shock primary piston further enhances performance, providing improved traction and feel. Benefit from minimized shock-to-shock variance, industry-leading quality, and improved chassis feedback for enhanced control and superior rider feel, allowing you to push your motorcycle to its limits with confidence.

Features & highlights

• Twin-tube technology provides consistent damping and eliminates cavitation.

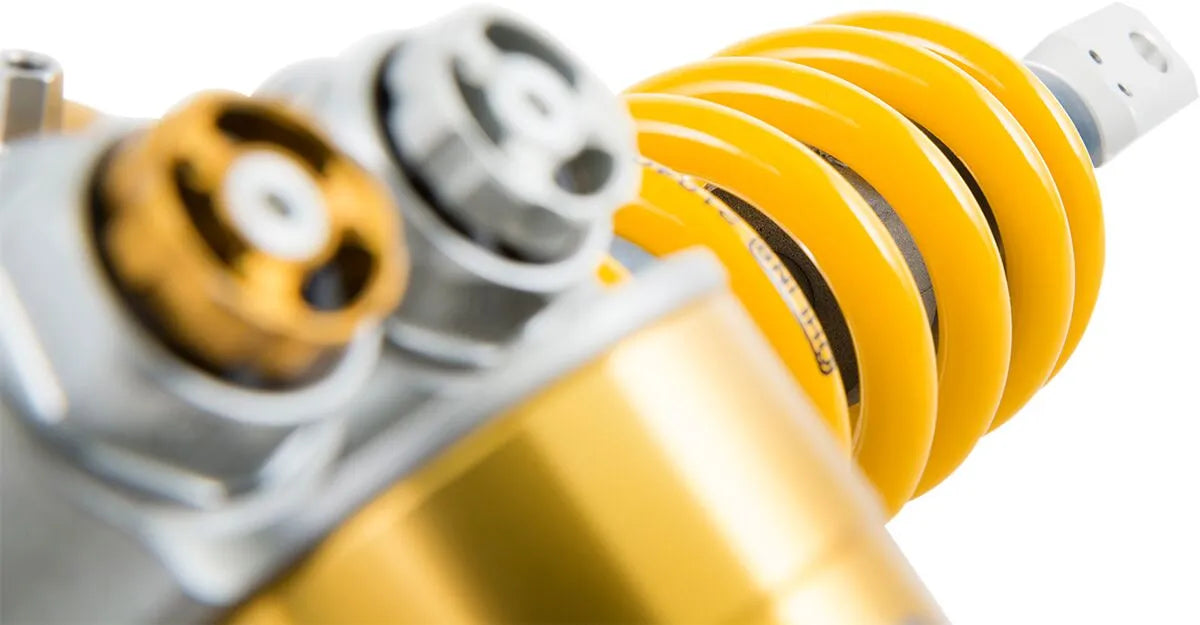

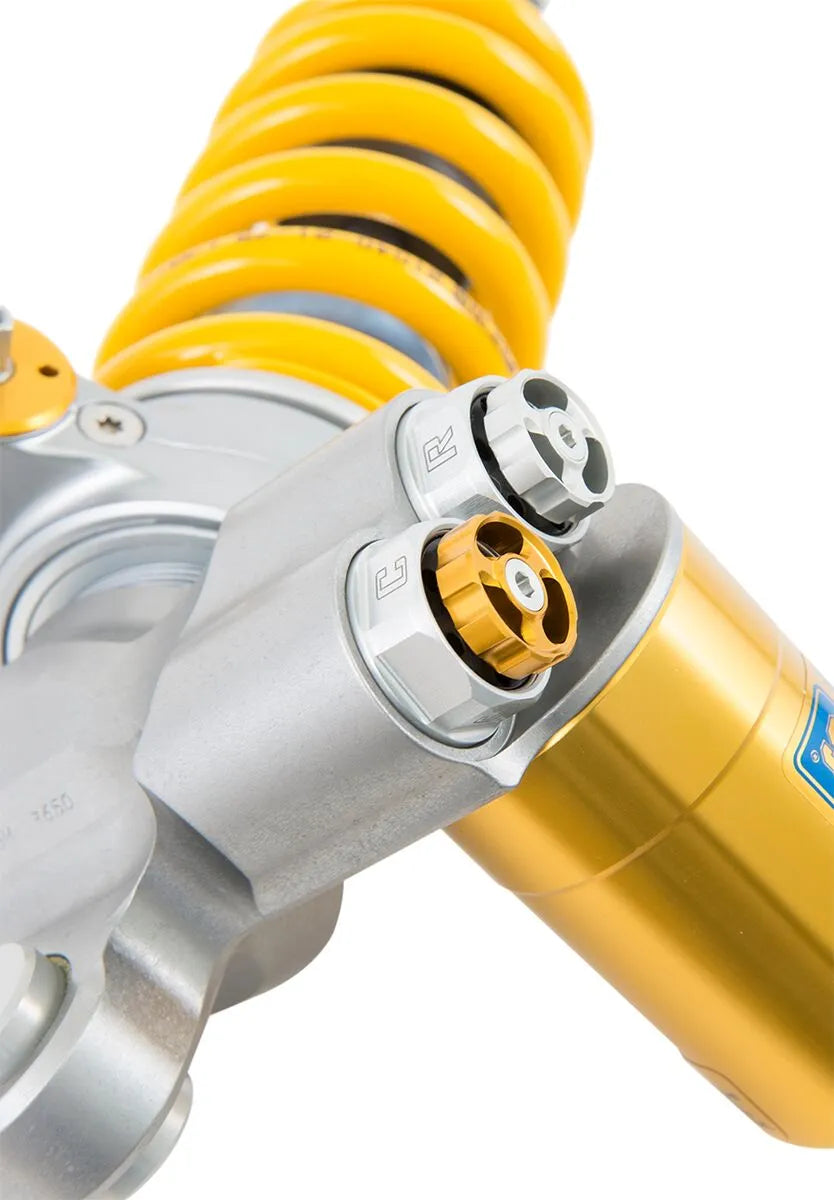

• Completely separated compression and rebound adjusters for independent fine-tuning.
• Updated design optimizes oil flow and volume control for precise damping.
• Wider range of preload and compression adjustment for customized performance.
• Redesigned 36 mm shock primary piston improves traction and feel.
• Minimized shock-to-shock variance ensures consistent performance.
• Improved chassis feedback delivers superior rider feel and enhanced control.

Technical specifications

• Brand: Öhlins
• Product Name: Shock Absorber
• Type: Coilover Twin-Tube
• Mounting Position: Rear
• Damping Method: Compression
• Reservoir Location: Piggyback
• Adjustment Type: Adjustable Compression Damping, Adjustable Rebound Damping, Adjustable Spring Preload, Adjustable Length, Hose Mounted Hydraulic Spring Preload Adjuster
• Bore Size: 36.00 mm (1.42")
• Extended Length: 310.00 mm (12.21")
• Linear Spring Rate: 95.00 N/mm (542.46 lb/in)
• Color/Finish: Silver, Yellow

Important to know

Please ensure correct fitment for your specific motorcycle model before installation.
