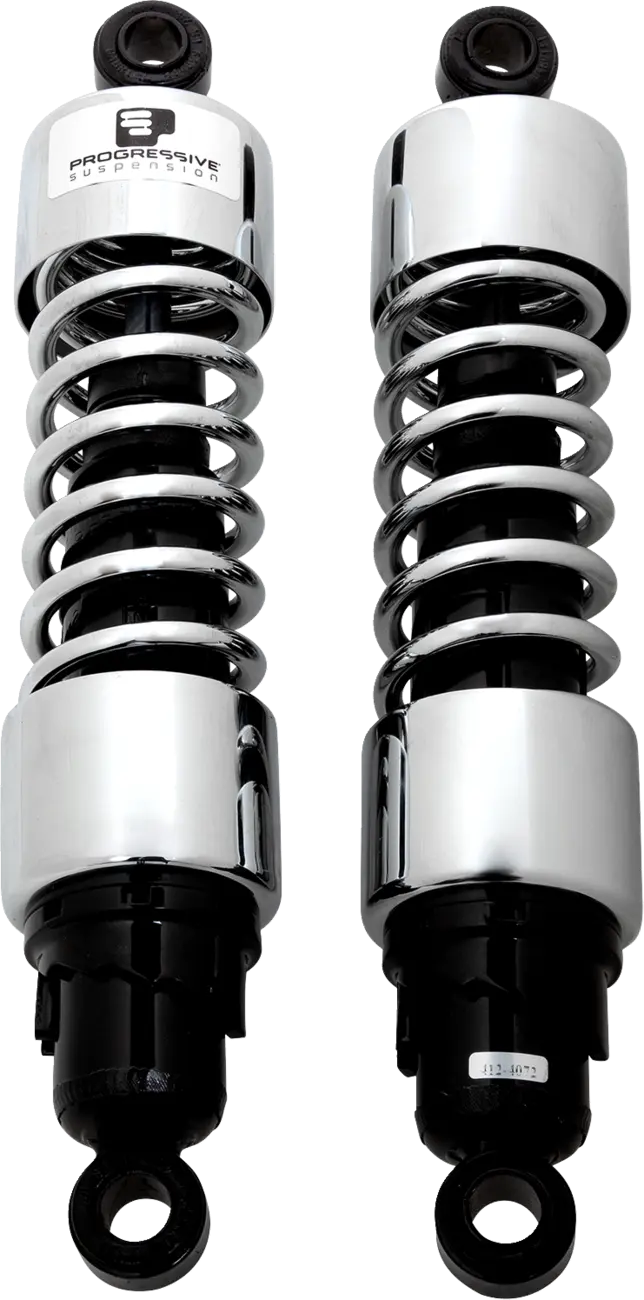

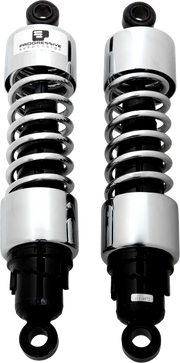

Progressive Suspension 412 Series Shocks - 13" - Chrome - 412-4072C

Upgrade your Harley-Davidson's ride quality with the Progressive Suspension 412 Series Shocks. These shocks offer a simple yet effective improvement to your motorcycle's suspension, providing enhanced comfort and control. Designed with durability in mind, the 412 Series shocks deliver reliable performance mile after mile.

Description

The Progressive Suspension 412 Series shocks are engineered to provide a significant upgrade over stock Harley-Davidson suspension. Featuring a gas-charged, monotube design and a progressive spring rate ranging from 90 lb/in to 130 lb/in (1.60 kg/mm - 2.30 kg/mm), these shocks deliver a smooth and controlled ride. The five-position cam style spring load preload adjuster allows you to easily fine-tune the suspension to match your riding style and load. Available in multiple style options, including full show-chrome or black covers, with chrome or black springs and end caps, these shocks not only improve performance but also enhance the look of your bike. These rear shocks are measured center-of-eyelet to center-of-eyelet. The 13.00" extended length offers a balanced ride height and improved handling.

Features & highlights

• Enhance your Harley-Davidson's suspension performance with these cost-effective shocks.
• Easily adjust your ride with the five-position cam style spring load preload adjuster.
• Enjoy a smooth and controlled ride thanks to the gas-charged damping and progressive spring rate.
• Customize your bike's appearance with multiple style options available.
• Experience the quality and craftsmanship of shocks made in the USA.
• Specifically designed for Harley-Davidson models.

Technical specifications

• Brand: Progressive Suspension
• Product Name: Shock Absorber
• MPN: 13100478
• Type: Coilover Monotube
• Mounting Position: Rear
• Adjustment Style: Automatic
• Damping Method: Gas Charged
• Spring Type: Single Progressive Rate
• Progressive Spring Rate: 1.60 kg/mm - 2.30 kg/mm (90 lb/in - 130 lb/in)
• Extended Length: 330.00 mm (13.00")
• Material: Steel
• Color/Finish: Chrome
• Duty: Standard
• Reservoir Location: Internal
• Units: Pair

Important to know

When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance. A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering. A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering. Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time. Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.
