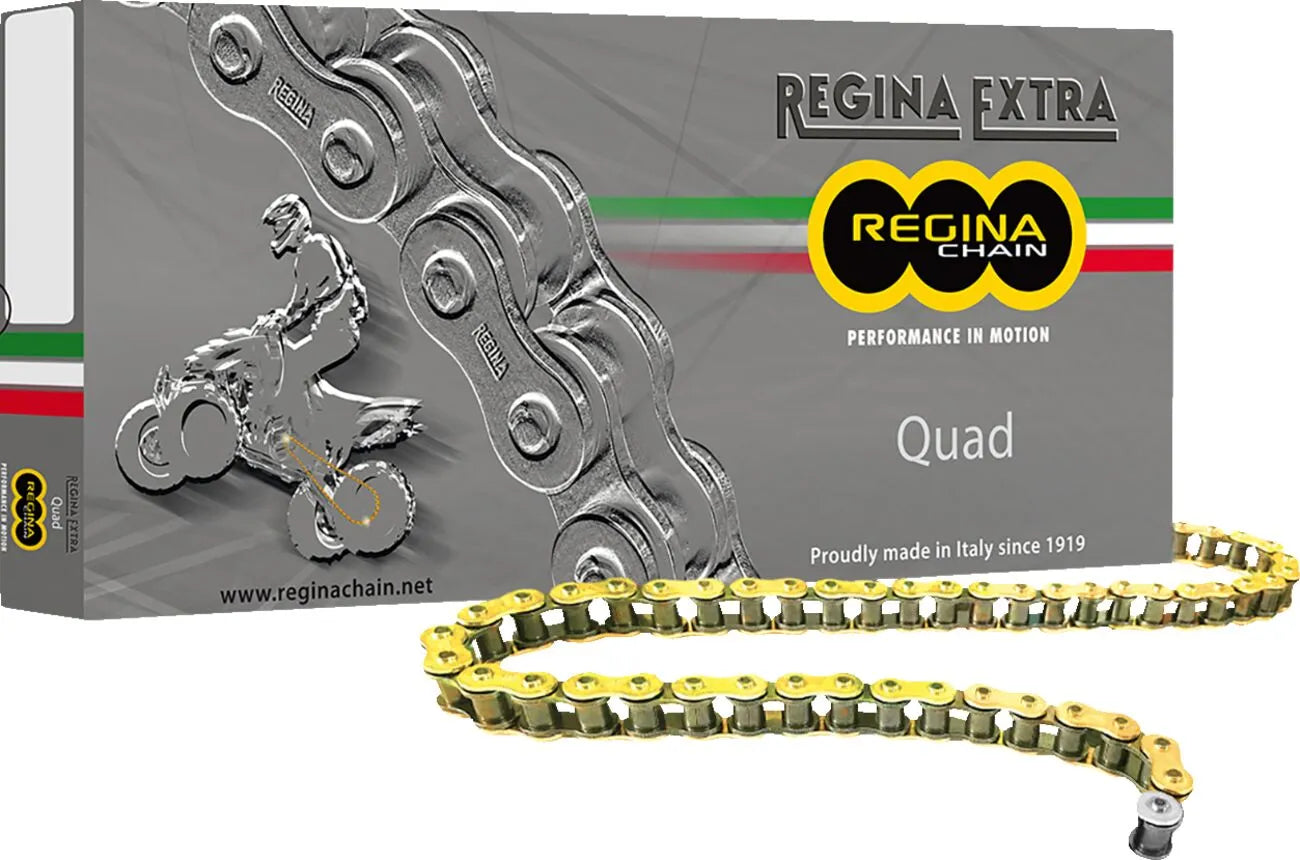

Regina 520 QUAD Chain - 96 Links - Gold - 135QUAD/004

The Regina 520 Quad Series chain is engineered to conquer the punishing demands of ATV riding while delivering exceptional performance. This ATV drive chain is built to last, providing reliability and minimizing downtime, so you can focus on the ride.

Description

Developed to withstand severe stresses, the Regina 520 Quad Series chain features patented Z44 sealing rings that significantly improve performance and extend wear life, surpassing traditional X-ring and Z-ring designs. The Z44 rings contribute to a remarkable 50% reduction in friction compared to standard O-rings. Constant lubrication, thanks to specialized high-temperature grease in the crucial pin/bushing area, ensures long-lasting performance. High-carbon alloy pins minimize wear, while increased roller thickness enhances durability. Thicker outer plates, fortified by quad-riveting, provide exceptional tensile strength. All components undergo shot-peening for maximum fatigue resistance, and each chain is pre-loaded to guarantee superior performance and minimize the need for adjustments. The Regina 520 Quad Series is suitable for ATVs up to 500cc.

Features & highlights

• Patented Z44 sealing rings for superior performance and extended wear life.
• 50% friction reduction compared to traditional O-ring chains.
• Constant lubrication ensures long life in the pin/bushing area.
• High-carbon alloy pins and increased roller thickness for enhanced durability.
• Thicker outer plates and quad-riveting provide greater tensile strength.
• Shot-peened components for maximum fatigue resistance.
• Pre-loaded for superior out-of-the-box performance.

Technical specifications

• Brand: Regina
• Chain Size: 520
• Chain Type: 520 QUAD
• Color/Finish: Gold
• Master Link Connector Type: Clip
• Maximum Engine Displacement (Offroad): 500 cc
• Number of Links: 96
• Seal Type: Z44-Ring
• Tensile Strength: 36.5 kN (8205 lb)
• Weight: 1.76 kg/100 Links

Important to know

This drive chain is supplied as a single unit.
