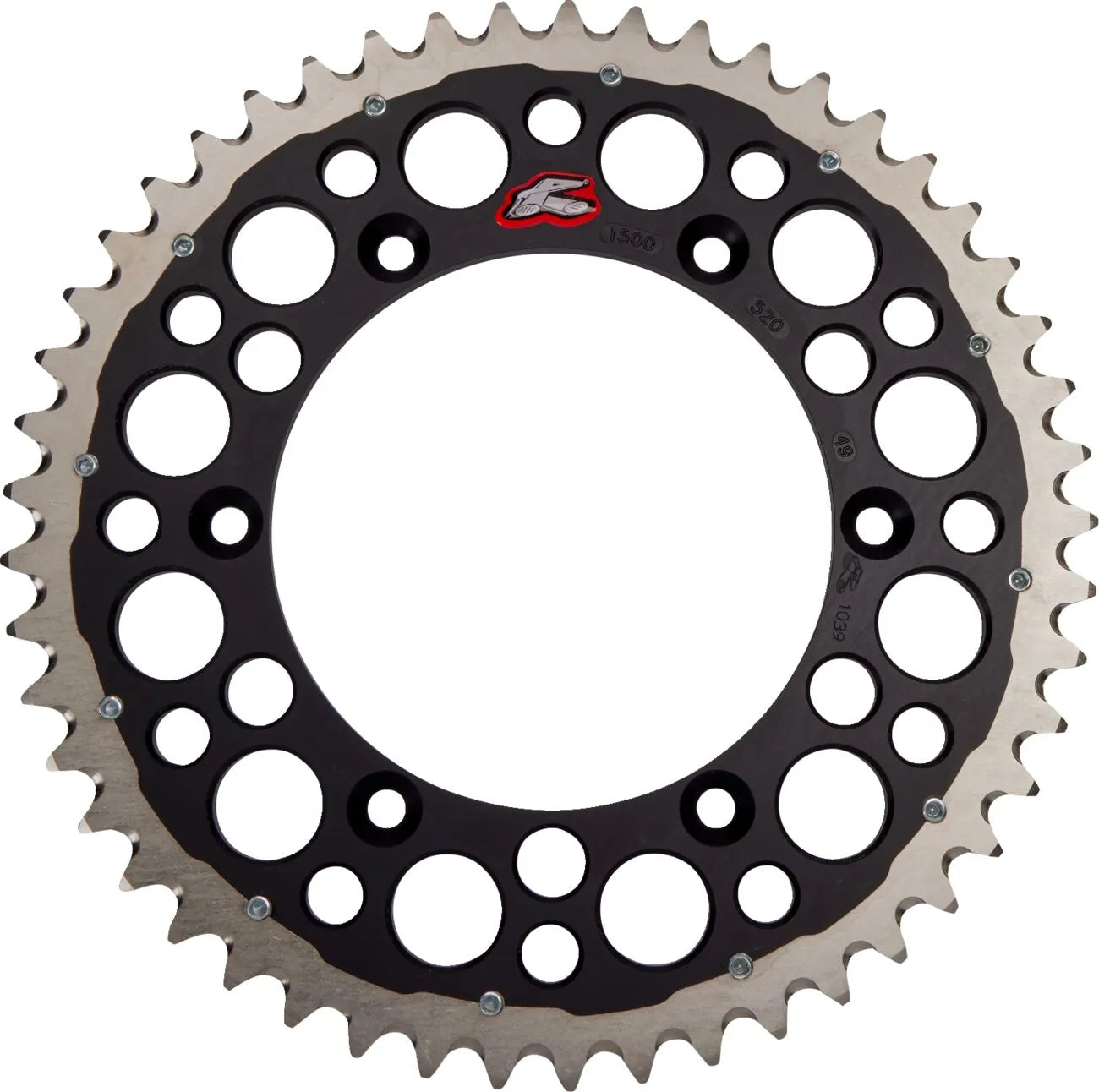

Renthal Twinring Rear Sprocket 520

The Renthal Twinring™ rear sprocket provides the ultimate combination of light weight and exceptional durability. Engineered for demanding riders and racers, this sprocket offers superior performance and longevity compared to traditional aluminum or steel sprockets.

Description

The Twinring™ sprocket features a unique two-piece design. The inner ring is manufactured from Renthal's high-strength Ultralight™ 7075 T-6 aluminum, minimizing weight and maximizing power transfer. The outer ring is constructed from electro-less nickel-coated steel, providing exceptional resistance to wear and tear. The outer ring is thermally fitted to the inner ring at 200°C, creating a permanent and robust bond that withstands the rigors of off-road and on-road riding. Flat socket head screws further enhance the sprocket's strength, protecting it from side impacts and eliminating chain guide interference. Self-cleaning mud grooves between each tooth prevent dirt buildup, reducing chainwheel wear and maintaining optimal performance. This advanced design ensures the Renthal Twinring™ sprocket lasts up to three times longer than a standard aluminum sprocket while remaining significantly lighter than a full steel sprocket. Experience the difference in performance and durability with the Renthal Twinring™ rear sprocket.

Features & highlights

• Inner ring crafted from Ultralight™ 7075 T-6 aluminum for reduced weight.
• Electro-less nickel-coated steel outer ring for maximum durability.
• Thermally fitted and wave-pattern bonded rings ensure a permanent, strong connection.
• Flat socket head screws enhance strength and prevent chain guide contact.
• Self-cleaning mud grooves minimize dirt buildup and chain wear.
• Lasts up to 3x longer than standard aluminum sprockets.
• Lighter than all-steel rear sprockets, improving power delivery.

Technical specifications

• Brand: Renthal
• Product Name: Sprocket
• Mounting Position: Rear
• Chain Size: 520
• Tooth Count: 49
• Material: 7075-T6 Aluminum
• Type: Drive
• Color/Finish: Black

Important to know

No specific requirements or limitations noted.
