S&S 883 to 1200 Conversion Piston Kits – Engine

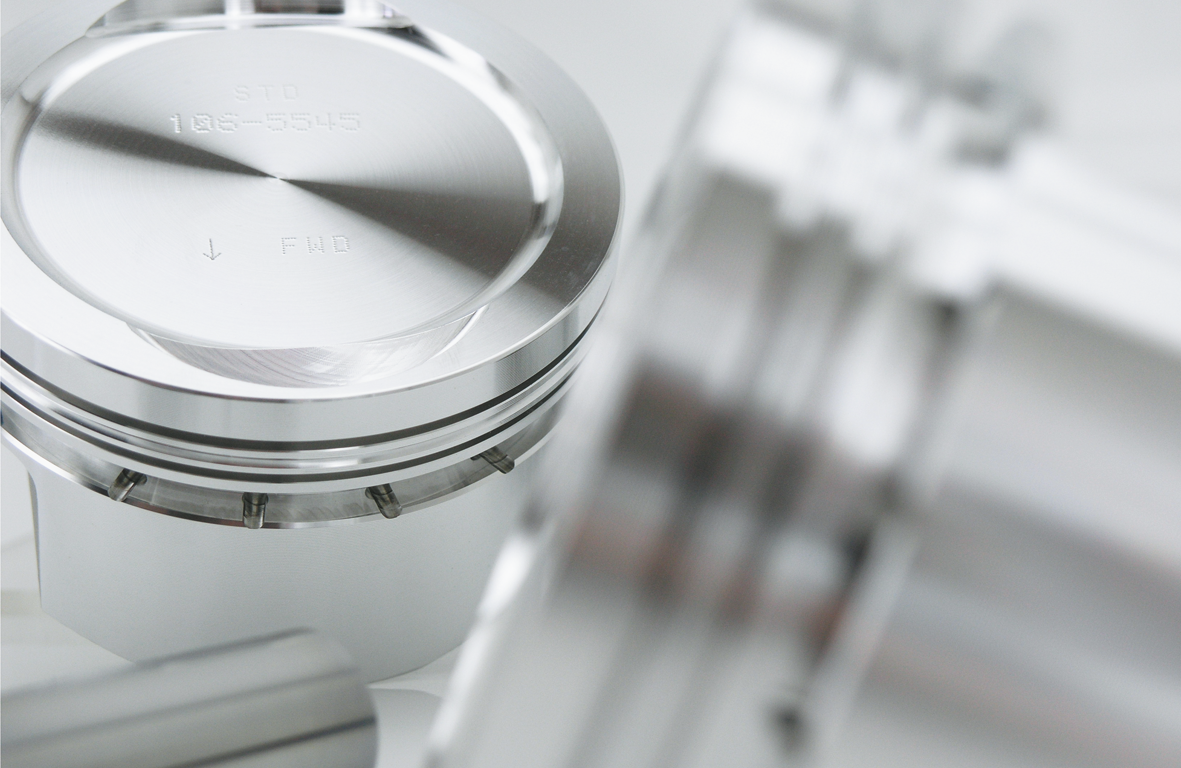

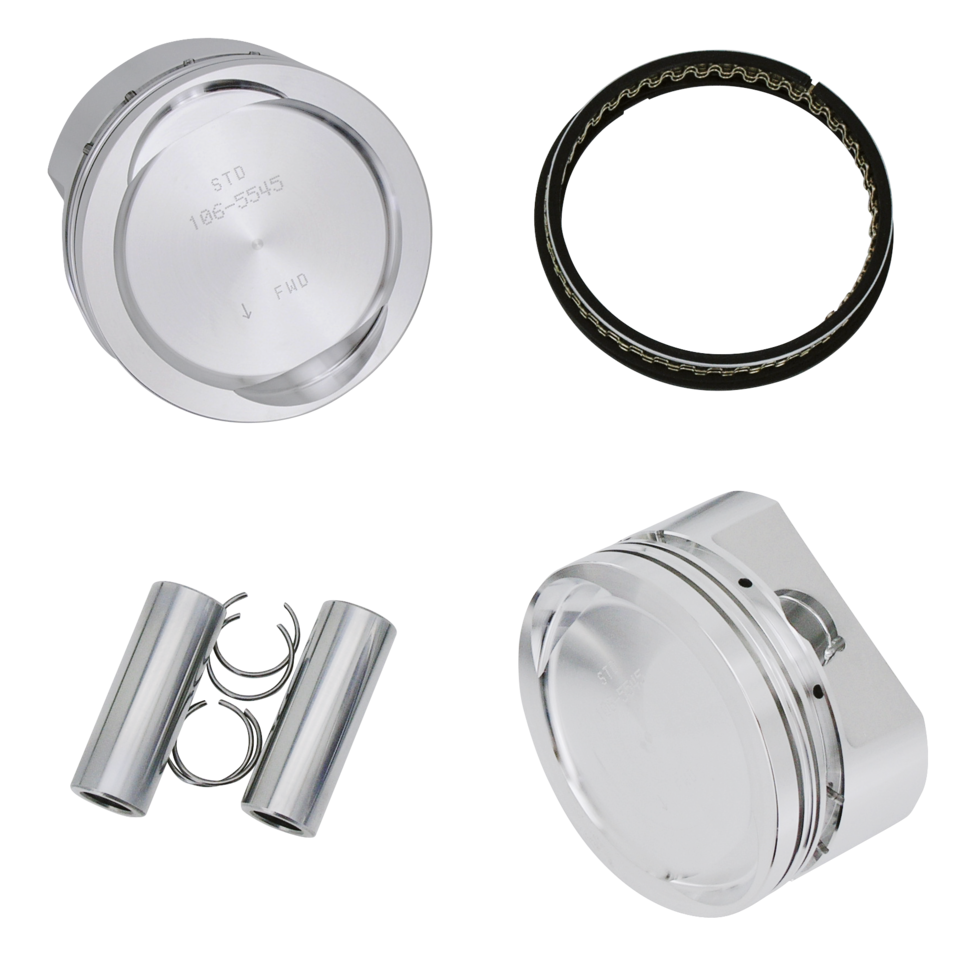

An economical way to get more out of your 883 Sportster. Use these forged pistons to convert an 883cc engine to 1200cc. Bore the stock 883cc cylinders out to 3 1/2" bore or use 1200cc cylinders. Pistons feature coated skirts for reduced friction during break-in. Pistons also feature a dished domed, so no combustion chamber modifications are needed. It is also not necessary to re-balance your crankshaft. Sold in sets of 2 pistons complete with Moly faced piston rings, circlips, and piston pins. Fits XL 883 1986-2022 and give a 9.4:1 compression ratio.
Note: The cylinders on models 2009 and later can not be bored to accept these 3 1/2" bore pistons. You will have to order a complete S&S cylinder and piston kit, or 2 new Stock XL 1200 2004-2008 cylinders or a pair of S&S 3 1/2" bore cylinders separately.

1986-2008 style 3 1/2" bore S&S cylinders for use in 2009 and later applicationsCylinder sets are bored slightly under nominal size and must be honed to size, Silver

S&S Cylinders XL1200 3-1/2" bore silver

• Category: Pistons & Piston Rings
