S&S Cycle Twin Cam 570 Easy Start Camshaft Kit - 106-5234

Upgrade your Harley-Davidson's performance with the S&S Cycle 570 Easy Start Camshaft Kit. This kit delivers increased power and improved starting for 88", 95", and 103" engines. Experience the difference S&S Cycle engineering makes in your ride.

Description

The S&S Cycle 570 Easy Start Camshaft Kit is designed to provide a significant power increase across the entire power band, specifically from 3200 rpm to 5700 rpm. The innovative Easy Start feature initially reduces crank compression for effortless starting. Once the engine starts and RPM increases, the compression release lobe retracts centrifugally, allowing the engine to run at full compression without any performance loss. This bolt-in kit is designed for engines with compression ratios between 9.0:1 and 10.0:1, ensuring optimal performance and reliability. Made in the USA with precision engineering and quality materials, this camshaft kit will transform your Harley-Davidson's performance.

Features & highlights

• Easy Start technology reduces compression for effortless starting.
• Provides a substantial power increase from 3200 rpm to 5700 rpm.
• Optimized for 88", 95", and 103" engines with 9.0:1 to 10.0:1 compression ratios.
• Bolt-in design simplifies installation.
• Made in the USA for superior quality and reliability.
• Designed for chain-driven camshafts.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camshaft Kit
• Grind: 570 Series
• Type: Chain
• Intake Open: 20°
• Intake Close: 40°
• Intake Duration: 240°
• Intake Lift: 0.570"
• Intake Lift at TDC: 0.187"
• Intake Lobe Centerline: 100°
• Exhaust Open: 55°
• Exhaust Close: 20°
• Exhaust Duration: 250°
• Exhaust Lift: 0.570"
• Exhaust Lift at TDC: 0.179"
• Exhaust Lobe Centerline: 107.5°

Important to know

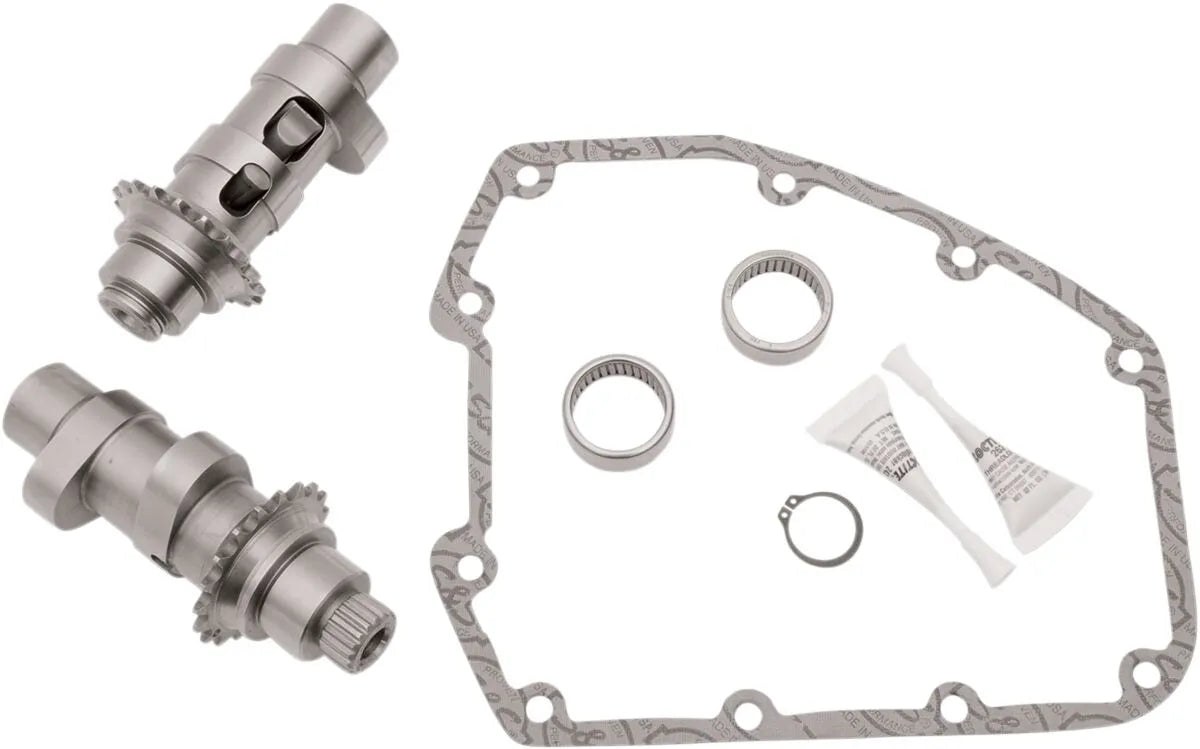

This kit includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, thread lock, and instructions. The installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance. This kit is not for models with OEM compression releases.
