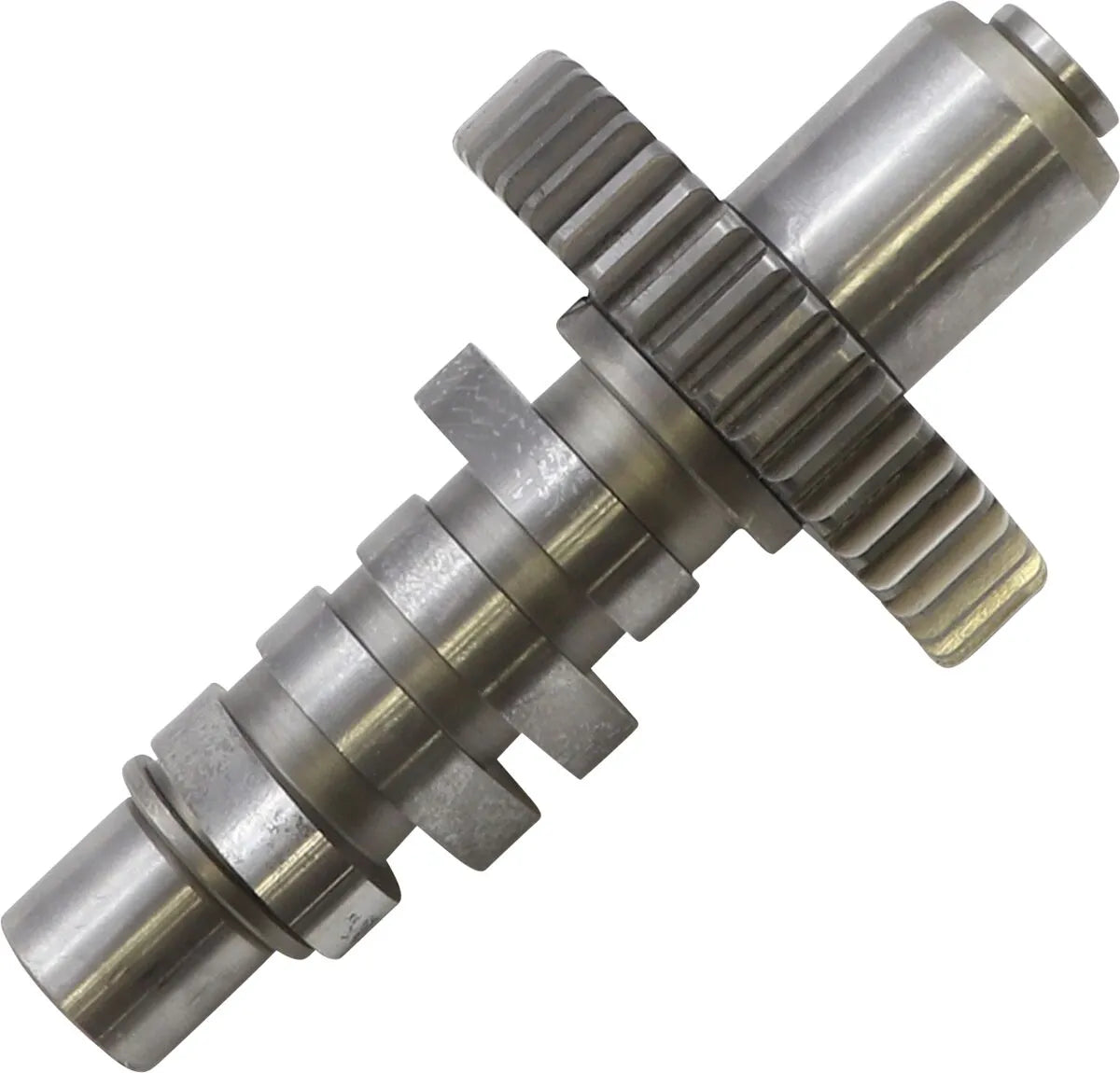

S&S Cycle 585V Camshaft - Raw - 33-5109

The S&S Cycle 585V Camshaft delivers proven performance, rigorously tested on the dyno, street, and track to ensure top-tier quality and reliability. With extensive testing, S&S ensures that each camshaft provides optimal power and durability for demanding applications.

Description

This versatile camshaft is engineered for 80" to 96" engines with 10.0:1 to 10.5:1 compression ratios, and it also performs exceptionally well in larger engines with 9.5:1 to 10.0:1 compression ratios. The S&S 585V Camshaft provides significant power gains in the 3500 to 6000 rpm range, offering improved throttle response and enhanced overall engine performance. Built to exacting standards, this camshaft helps maximize the potential of your engine, delivering consistent and reliable power across the RPM range. Gear type, for precise timing.

Features & highlights

• Extensively dyno, street, and track tested for proven performance.
• Optimized for 80" to 96" engines with 10.0:1 to 10.5:1 compression ratios.
• Also suitable for larger engines with 9.5:1 to 10.0:1 compression ratios.
• Provides significant power gains in the 3500 to 6000 rpm range.
• Enhances throttle response and overall engine performance.
• Proudly made in the USA.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camshaft
• Grind: 585V
• Type: Gear
• Intake Open: 20°
• Intake Close: 45°
• Intake Duration: 245°
• Intake Lift: 0.585"
• Intake Lift at TDC: 0.186"
• Intake Lobe Centerline: 102.5°
• Exhaust Open: 60°
• Exhaust Close: 20°
• Exhaust Duration: 260°
• Exhaust Lift: 0.585"
• Exhaust Lobe Centerline: 110°

Important to know

The installer must check coil bind, valve-to-valve clearance, valve-to-piston clearance, and cam lobe to case clearance to ensure proper installation and operation.
