S&S Cycle MR103 Easy Start Cam Kit - 330-0466

Unlock the true potential of your 103" engine with the S&S Cycle MR103 Easy Start Camshaft Kit. This kit delivers enhanced performance and easy starting, making it an ideal upgrade for enthusiasts and professionals alike. Experience the difference that precision engineering and quality components can make in your ride.

Description

The S&S Cycle MR103 Easy Start Camshaft Kit is engineered to provide an easy start by initially reducing crank compression. Once the engine starts and RPM increases, the compression release lobe retracts centrifugally, allowing the engine to run normally with full compression and no loss in performance. Designed as bolt-in cams for 103" engines with stock 9.7:1 compression ratios, this kit is optimized for engines with compression ratios ranging from 9.7:1 up to 10.5:1. Expect increased power across the RPM range, with best results from 2500 RPM to 5500 RPM. Compatible with stock, un-ported heads and optimized for S&S CNC ported heads, this kit provides versatility and performance gains for a variety of setups. Maximize your engine's potential with the S&S Cycle MR103 – designed and manufactured in the USA.

Features & highlights

• Easy start feature reduces cranking compression for effortless starts.
• Optimized for 103" engines with 9.7:1 to 10.5:1 compression ratios.
• Delivers more power across the RPM range, peaking between 2500-5500 RPM.
• Works with both stock and S&S CNC ported heads.
• Manufactured in the USA with high-quality materials.
• Complete kit includes all necessary components for installation.

Technical specifications

• Brand: S&S Cycle
• Product Name: Camshaft Kit
• Type: Gear
• Grind: MR103
• Application: Exhaust, Intake
• Intake Open: 13°
• Intake Close: 33°
• Intake Duration: 226°
• Intake Lift: 0.585"
• Intake Lift at TDC: 0.172"
• Intake Lobe Centerline: 100°
• Exhaust Open: 50°
• Exhaust Close: 22°
• Exhaust Duration: 252°
• Exhaust Lift: 0.585"
• Exhaust Lift at TDC: 0.177"
• Exhaust Lobe Centerline: 104°

Important to know

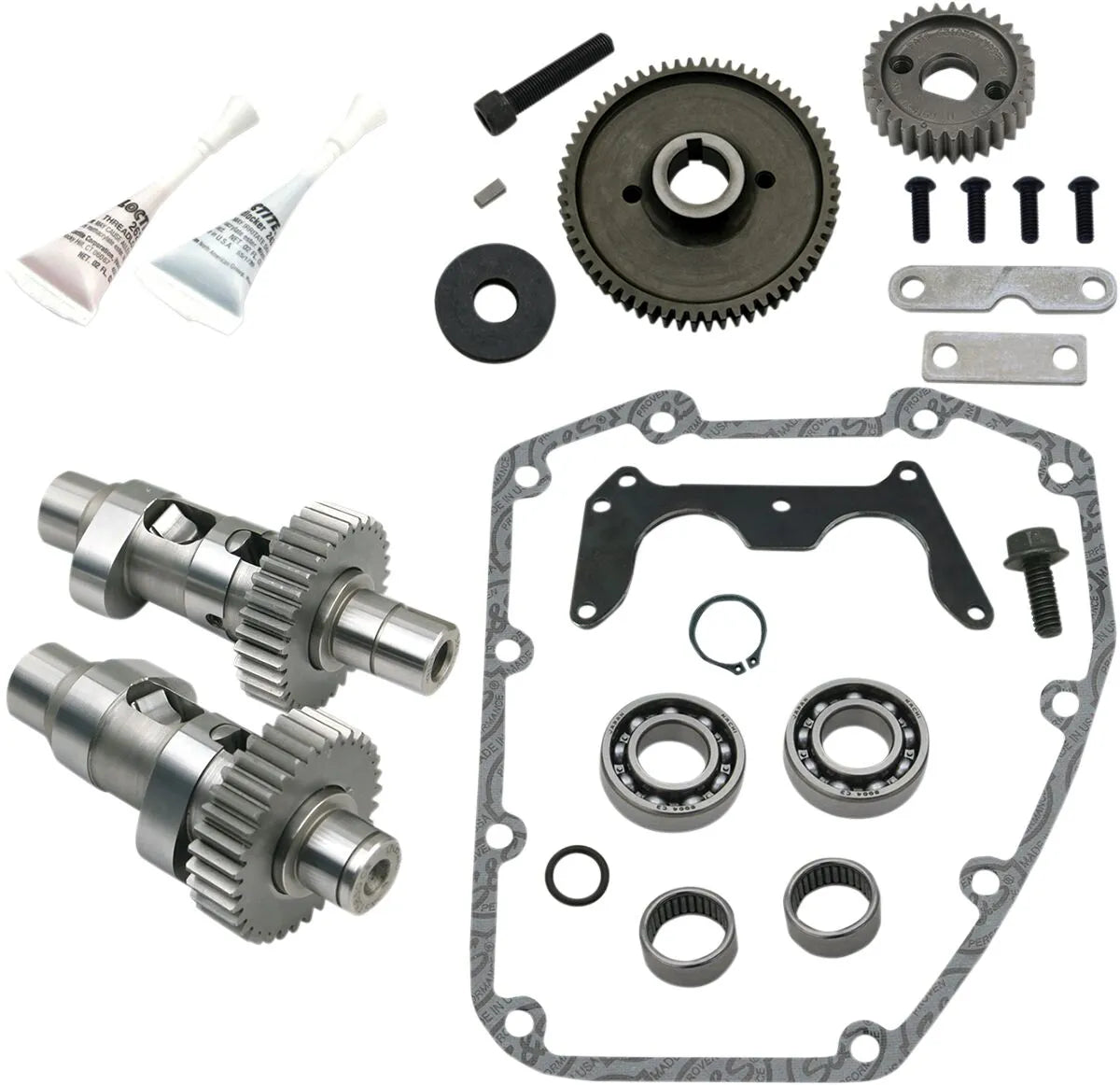

Installer must check coil bind, valve-to-valve clearance, and valve-to-piston clearance. Not for models with OEM compression releases. Kit includes camshafts, gear cover gasket, bearings, retaining ring, o-ring, thread lock, and instructions.
