Vertex Pro HC Forged Piston Kit - 77mm Bore - 250cc - Size A - 23862A

Unleash the full potential of your 250cc 4-stroke engine with the Vertex Forged High Compression Piston Kit. This kit is engineered for enthusiasts and professionals seeking enhanced power, durability, and performance.

Description

The Vertex Pro HC forged piston is crafted using advanced Vertex technology to deliver a high compression ratio of 13.9:1. This results in improved power and torque across the entire RPM range, giving you a noticeable boost in performance. Constructed from 2618 forged aluminum alloy, the piston offers superior strength and durability to withstand the increased pressures and temperatures of high-performance applications. Each piston undergoes a T-5 heat treatment process, hardening and tempering it for maximum reliability. The piston skirt is coated with a high-tech Molybdenum Disulphide coating, ensuring faster break-in times and significantly extending piston life. Designed as a standard size A piston with a diameter of 76.95mm to fit a 77.00mm bore. The included rings are made from nitride-coated steel, providing optimal sealing and wear resistance. This kit provides everything needed for a professional installation. Upgrade your engine with the Vertex piston kit and experience the difference in power and reliability.

Features & highlights

• Forged Construction: Crafted from 2618 aluminum alloy for superior strength and durability.
• High Compression Design: 13.9:1 compression ratio enhances power and torque across the RPM range.
• Moly Coated Skirt: High-tech Molybdenum Disulphide coating ensures faster break-in and extended piston life.
• T-5 Heat Treatment: Hardened and tempered for maximum reliability and performance.

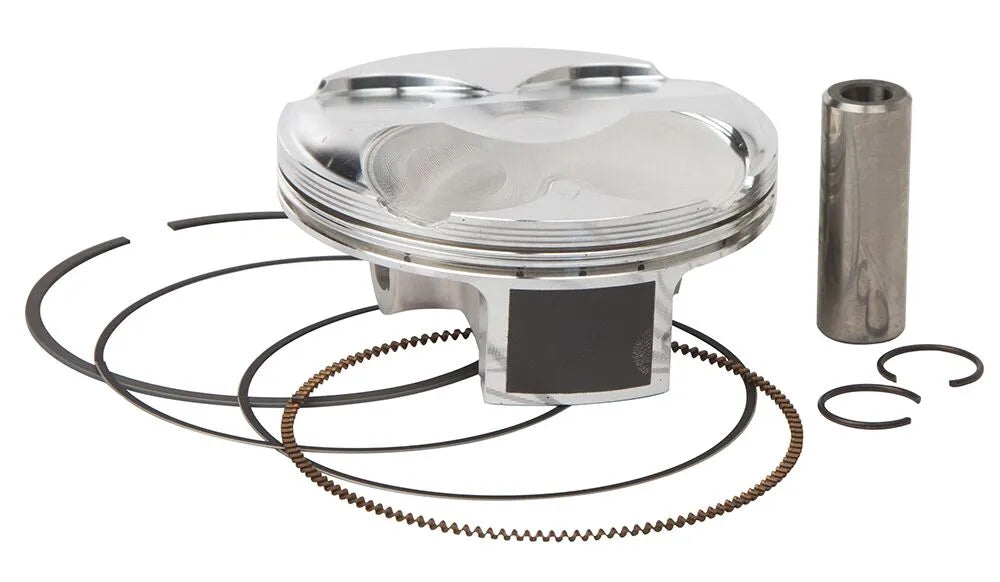

• Complete Kit: Includes piston, rings, wrist pin, and circlips for a comprehensive installation.

Technical specifications

• Brand: VERTEX
• Product Name: Piston Kit
• Piston Material: Forged Aluminum Alloy
• Displacement: 250 cc
• Engine Type: 4-Stroke
• Bore Size: 77.00 mm
• Piston Diameter: 76.95 mm
• Piston Size: Standard Size A
• Compression Ratio: 13.9:1
• Ring Material: Nitride Coated, Steel
• Skirt Coating: Moly Coated

Important to know

Two-stroke piston rings are sold individually; four-stroke piston rings are sold as a set.
