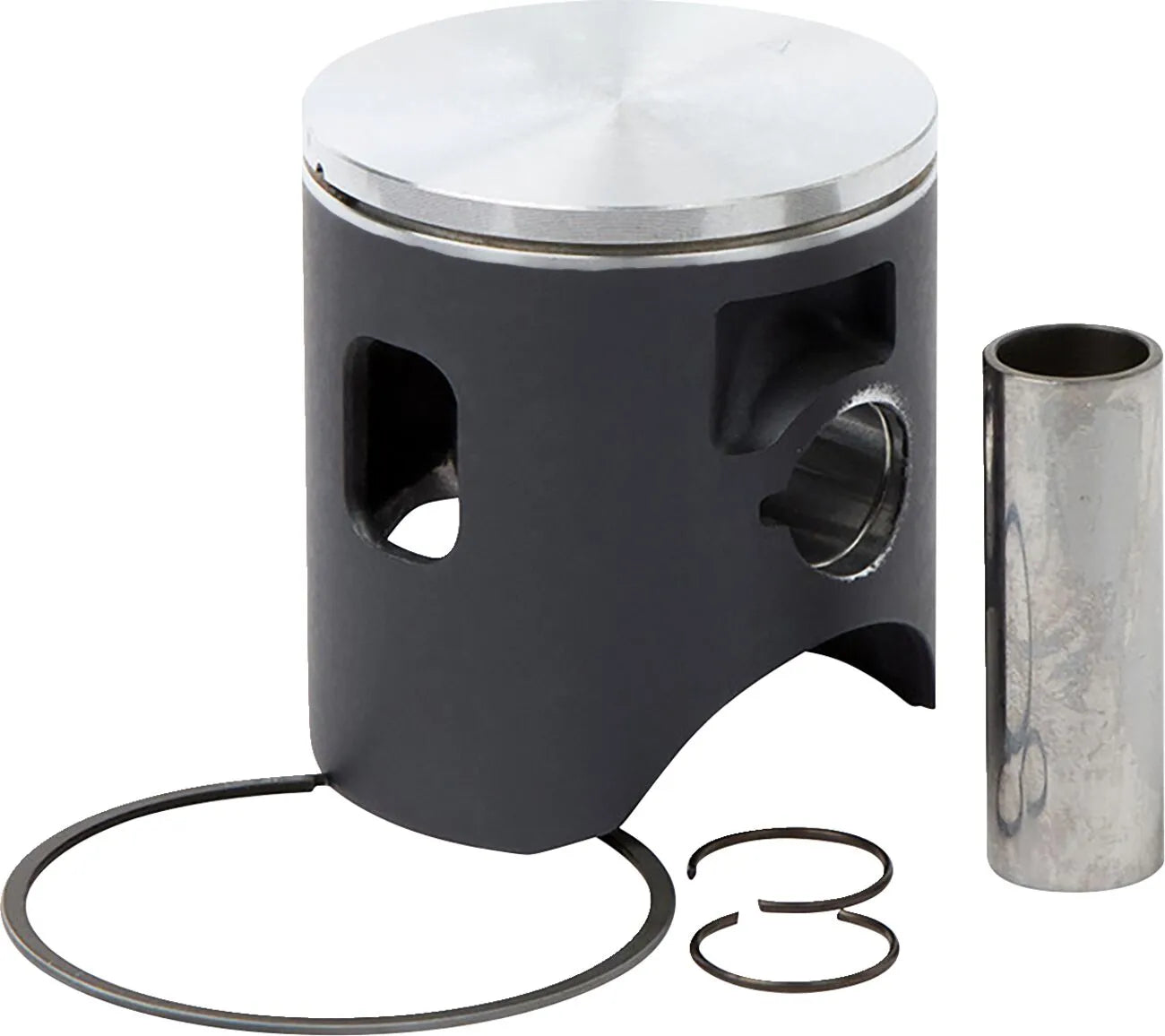

Vertex Cast Piston Kit - 53.94mm Bore - 125cc - Size C - 22685C

The Vertex Piston Kit is a cast replica designed as an OE replacement for 2-stroke engines. This kit provides the essential components needed for a piston replacement, ensuring reliable performance and longevity.

Description

Crafted from a gravity-cast aluminum alloy with an 18% silicone content, this Vertex piston offers excellent durability and heat resistance. The piston undergoes a T-5 hardening and tempering cycle, enhancing its strength and wear resistance. A high-tech Molybdenum Disulphide coating is applied to the piston skirt, which significantly reduces friction during initial operation. This ensures faster break-in times and extends the overall lifespan of the piston. Designed for 125cc 2-stroke engines with a 54.00 mm cylinder diameter, this kit provides a cost-effective solution without sacrificing quality.

Features & highlights

• Gravity-cast aluminum alloy construction for superior strength and heat dissipation.
• Molybdenum Disulphide coated piston skirt reduces friction and extends piston life.
• T-5 heat treatment enhances piston hardness and wear resistance.
• OE replacement design ensures proper fit and function.
• Complete kit includes piston, rings, wrist pin, and circlips for a straightforward installation.

Technical specifications

• Brand: Vertex
• Part Number: 22685C
• Engine Type: 2-Stroke
• Displacement: 125 cc
• Cylinder Diameter: 54.00 mm
• Piston Diameter: 53.94 mm
• Piston Material: Cast Aluminum Alloy
• Skirt Coating: Molybdenum Disulphide
• Compression Ratio: Standard

Important to know

This kit is designed as a direct replacement for the original piston. Please ensure compatibility with your specific engine model before installation.
