Wiseco 4-Stroke Piston Kit - 68mm Bore - PK1049

Upgrade your 4-stroke engine with the Wiseco High-Performance Piston Kit. This complete kit provides everything needed for a top-end rebuild, ensuring optimal performance and reliability. Precision-engineered for enthusiasts and professionals alike, Wiseco delivers superior quality and unmatched performance.

Description

The Wiseco Piston Kit is designed to boost your engine's power and efficiency. This kit contains a high-quality piston crafted from 2618 aluminum alloy, known for its exceptional strength and heat resistance. The piston's diameter is 67.95 mm, perfectly matched for a 68.00 mm bore size. The 9.3:1 compression ratio enhances combustion, resulting in increased horsepower and torque. With a displacement of 215cc and a stroke length of 61.00 mm, this kit is specifically tailored for 4-stroke engines, optimizing performance across the RPM range. Installation is straightforward for experienced mechanics, offering a seamless upgrade to your engine's top end.

Features & highlights

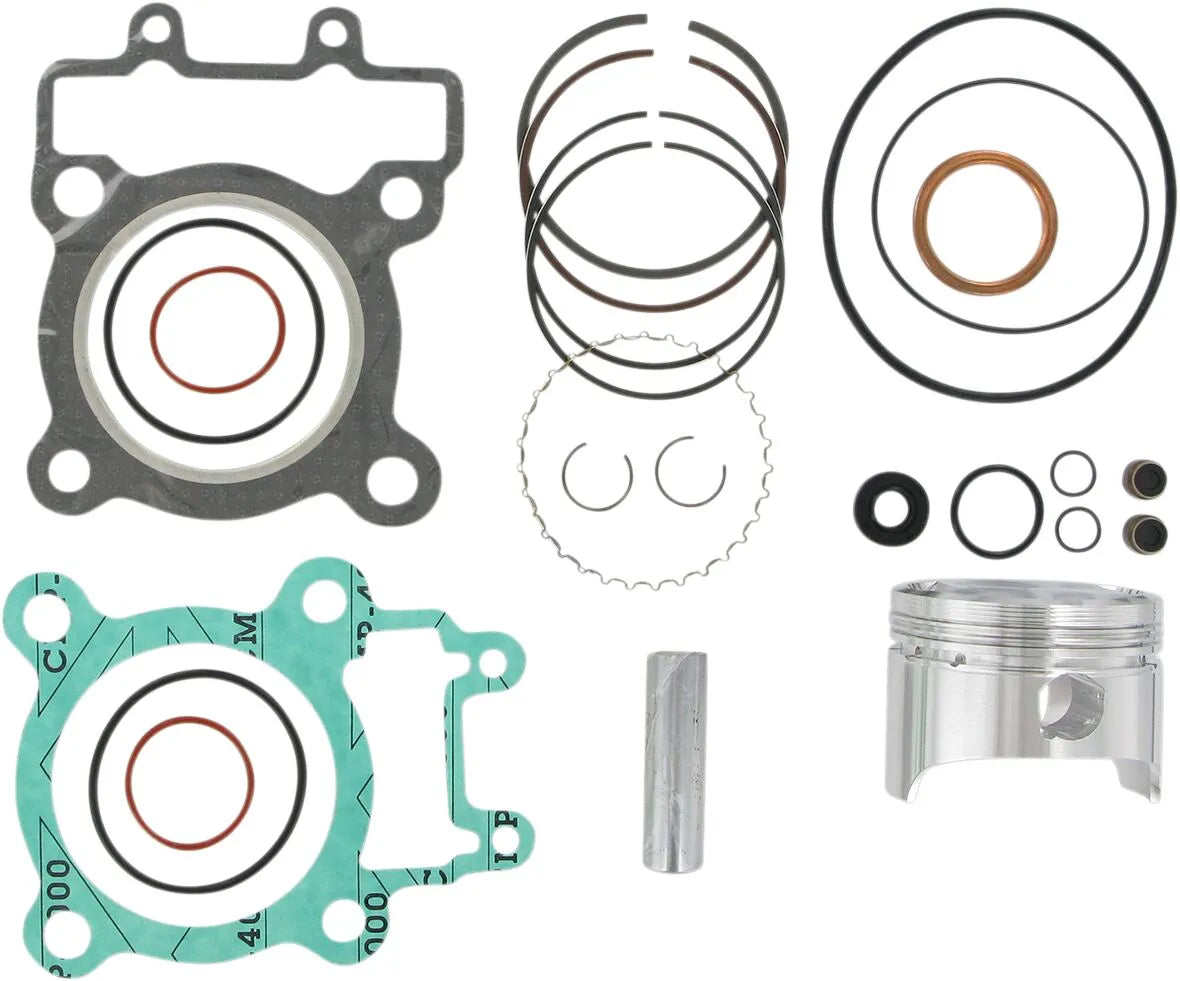

• Complete top-end rebuild kit, including piston, rings, wrist pin, circlips, and gasket.
• Piston crafted from high-strength 2618 aluminum alloy for superior durability.
• Optimized 9.3:1 compression ratio enhances engine power and efficiency.
• Precision-engineered for a 68.00 mm bore size and 61.00 mm stroke length.
• Designed specifically for 4-stroke engines.
• Non-coated skirt ensures proper lubrication and reduces friction.

Technical specifications

• Brand: Wiseco
• Engine Type: 4-Stroke
• Bore Size: 68.00 mm
• Piston Diameter: 67.95 mm
• Displacement: 215 cc
• Compression Ratio: 9.3:1
• Stroke Length: 61.00 mm
• Piston Material: 2618 Aluminum Alloy
• Skirt Coating: Non-Coated
• Type: Top End

Important to know

Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC). Wiseco pistons must be fitted only with Wiseco rings. Cylinder sleeves must be purchased separately.
