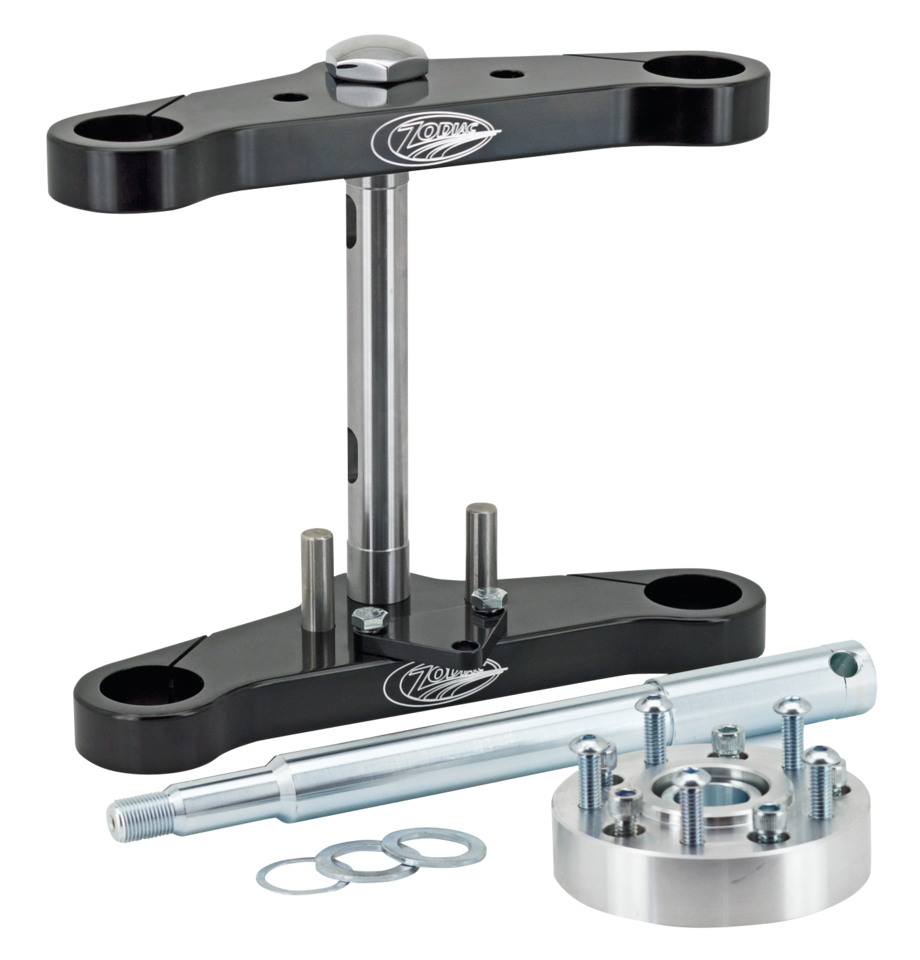

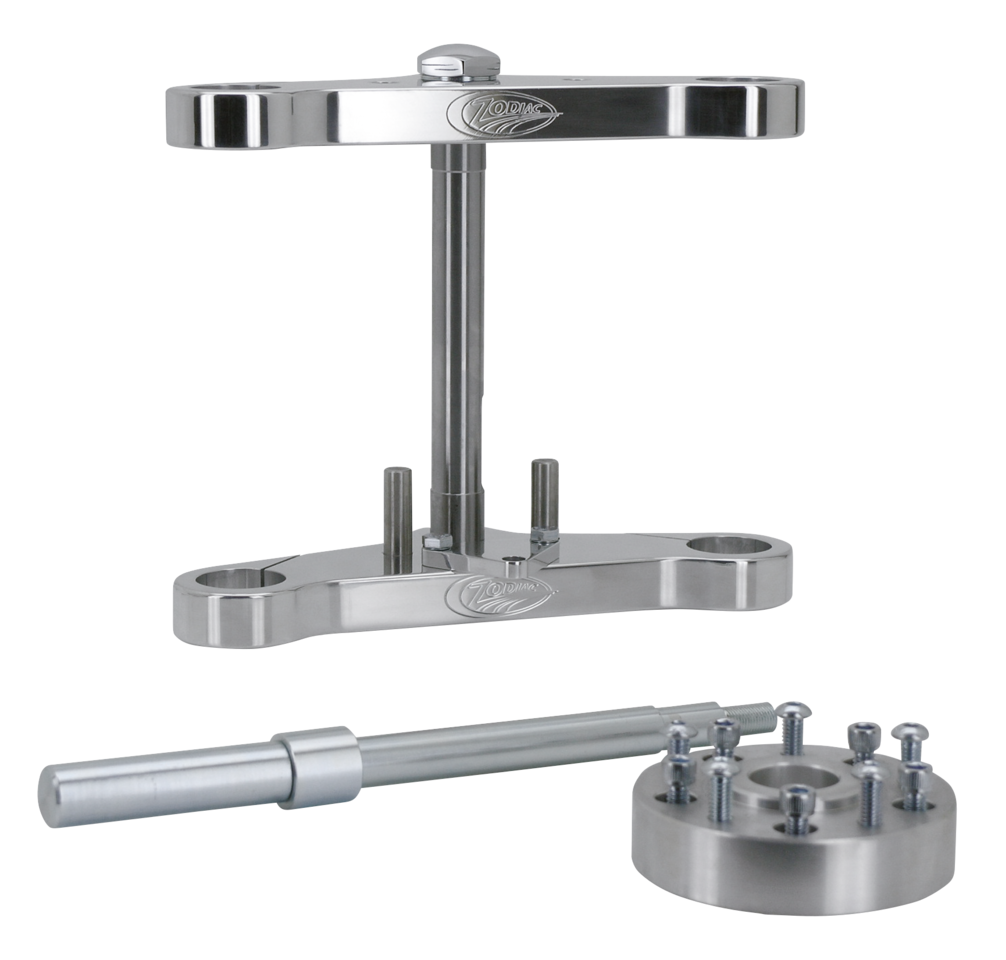

Zodiac Fat Plate Rev"o"lution Mid Glide Kit for Fx, Fxr, Dyna & Sportster – Front Forks

These billet aluminum kits have the same features as our other Rev"O"lution Mid Glide kits but as an extra they feature "extra thick" 25mm top and bottom plates. Available in stock, 3 degrees and 6 degrees rake. Raked kits allow the use of 4 to 10" (10 to 25cm) over-stock fork tubes, still keeping the bottom frame tube level with the ground, giving your bike that extended look. Machined from billet aircraft quality aluminum and include all necessary hardware and a bracket for a bottom mount headlight. The kit for 1977-1986 FX with 35mm fork tubes and includes two disc spacers. This kit can also be used for Sportster models with 35mm forks if steering stop is modified and neck post is spaced to correct length. For all other dual disc applications you have to order one extra spacer.
Note: If retaining stock fender, spacers will be required.

Fits 1987 FXLR and FXRS-SP, all FXR 1988-1994, Sportster 1987-1999 (does not fit FXLR) and Dyna 1990-1999, Complete kit, 3 degrees rake, polished

GZP DLux Alu MG kit 3dg FXR87-94 XL87-99

• Category: Wide Glide Kits & Triple Trees
• Approval: TÜV
